Chuck Adapters for Rotary Table

-

Clear selection
    Reset options

Product Description

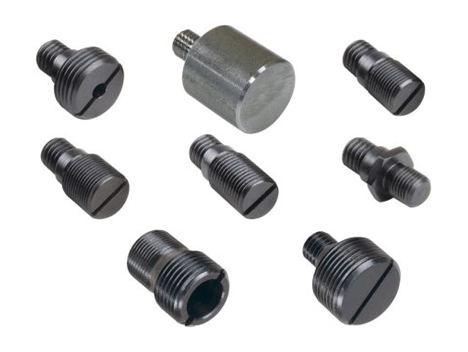

About the Rotary Table Chuck Adapters

Now you can attach a 1/4″ or 3/8″ drill chuck, an older Unimat chuck with 12 x 1 mm or 14 x 1 mm threads or a 1/2-20 Sears chuck to your Sherline rotary table. The adapter screws into the 3/8-16 threaded center hole of the table.

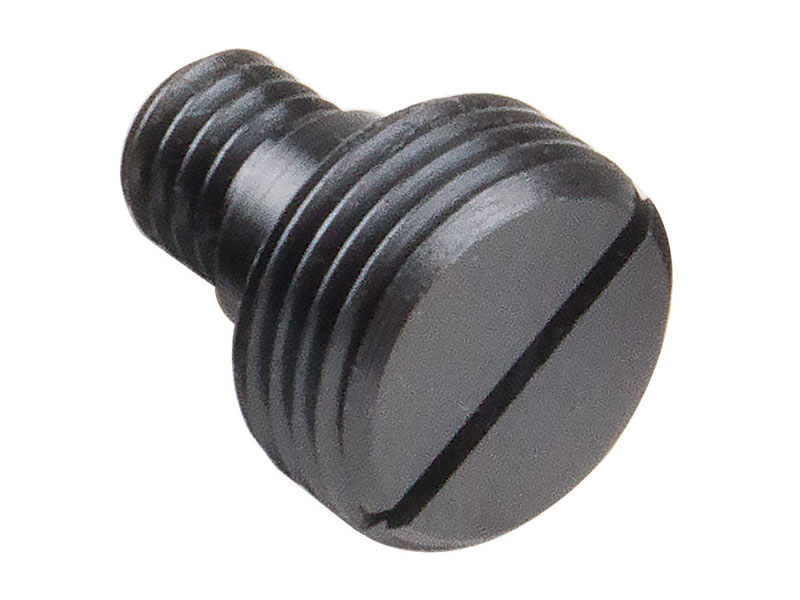

37090 – 3/8-16 to 3/4-16 Chuck Adapter

For use with chucks 1041, 1040, 1040C, 1075, 1076, 1076C, 1076C-PIE, 1044, 1030



37091 – 3/8-16 to 12 x 1mm Chuck Adapter

For use with chucks 1068, 1077, 1071



37092 – 3/8-16 to 14 x 1mm Chuck Adapter

For use with chucks 1031, 1079, 1035



37093 – 3/8-16 to 1/2-20 Chuck Adapter

For use with chucks 1070, 1073



37094 – 3/8-16 to 3/8-24 Chuck Adapter

For use with chucks 1069, 1072, 3072, 3073



37097 – Rotary Table Chuck Adapter with 15/32″ Through Hole

The chuck adapter has a 15/32 through-hole with 3/4-16 thread for the chuck and a 5/8-24 thread for the rotary table. The through hole allows stock to pass through the chuck and P/N 3710 4″ Rotary Table.

For use with chucks 1041, 10401075, 1076, 1044, 1030



37098 – Rotary Table Chuck Adapter (ER-16 thread)

For use with chucks 1042, 1078, 1032
