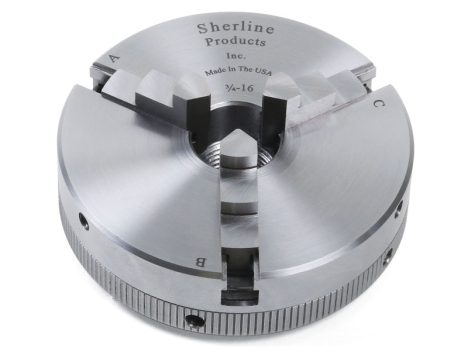

3.1″ 3-Jaw Chuck
This larger chuck takes up no more center-to-center space than the 2.5″ chuck, but it will hold larger work. It has a clamping range of 3/32″ (2 mm) up to 1-1/2″ (38 mm) diameter with the jaws in the normal position. With the jaws in the reversed position, work up to 3-1/4″ (82.5mm) can be gripped. The hole through the chuck is .687″ (17 mm). Rotating the knurled ring closes all three jaws simultaneously to grip round or hexagonal stock quickly. Tommy bars (provided) are used in the side holes to tighten and loosen the chuck for more leverage. The chuck has a 3/4-16 thread to fit Sherline’s spindle.
Jaw Options
-
If you prefer jaws with a looser fit for faster operation (where maximum accuracy isn’t critical), add a note requesting “loose jaws” below.
-
Soft steel jaws (unhardened and unmachined) are also available when building your own chuck|
| Chuck Diameter | 3.1″ |
|---|---|
| Jaw Capacity | With jaws in normal position: 3/32″ (2mm) – 1-1/2″ (38mm)
With jaws in reverse position: 1/4″ (6 mm) – 3-1/4″ (82.5mm) |
| Through Hole Diameter | .687″ (17mm) |
| Thread Size | 3/4-16 |
| Chuck Body Material | 12L14 Steel |
| Chuck Jaws Material | 12L14 Case Hardened Steel |
| I.D. Holding diameter of jaws NOTE: The diameters shown on the print can vary as much as .010-.020 depending on the amount of material that is removed during the grinding operation. Click on the image for a larger view. |
 |
| Part No. | Description | Quantity |
|---|---|---|
| 10401 | 3.1″ 3 Jaw Chuck Body *Not sold separately | 1 |
| 10402 | 3.1″ Chuck Scroll *Not sold separately | 1 |
| 10413 | Chuck Retainer Ring | 1 |
| 10414 | 3 Jaw Chuck Jaw* | 3 |
| 40580 | Tommy Bar | 2 |
*Because chuck jaws are factory ground to precisely match each chuck body you must send your chuck back to us to be fitted with new jaws. Please contact us for instructions on how to return your chuck.
Click the P/N below to download a zipped version of the IGS 3D CAD file. You will need to extract the zip file before viewing the IGS file.
1040 3.1″ 3-Jaw Chuck 3D IGS model
You need an IGS viewer to view .igs files. CLICK HERE to download a FREE IGS viewer.
