Internet Special for February 2019
Save 20% on many of our Tooling Plates!
About Tooling Plates
Like those used on many of our large production machines, the mill tooling plate solves two main problems. It not only protects your mill’s table from damage (while also adding additional stiffness), but it also provides an inexpensive, modifiable surface for clamping work that is as flat as the machine’s original table. The best way to hold a part more securely is to add more clamping points rather than over-tightening the points you already have. The tooling plates show below allow you to easily do this.
These fixtures are not limited to use on Sherline tools. Like the rotary table and some other Sherline accessories, they could be useful on larger machines in your shop as well.
P/N 3560 4″ x 10″ Mill Tooling Plate – Regularly $63, Save $12.60, Now only $50.40
It has a hole pattern predrilled to make it easy to clamp down the Sherline mill vise or the rotary table, but you should feel free to drill and tap whatever additional holes are needed to meet your clamping and setup needs for a particular job. The plate is made from 6061-T6 aluminum that is accurately milled to 1/2″ thick. The surface is not anodized, as it is intended to be easily drilled and machined to suit your unique jobs.
(CLICK HERE for product details)
Monthly Special Discount will be applied at checkout.
P/N 3562 7″ x 13″ Mill Tooling Plate – Regularly $200.25, Save $40.05, Now only $160.20
This 7″ x 13″ tooling plate is a larger version of the standard 4″ x 10″ tooling plate P/N 3560. In addition to an extensive pattern of 10-32 holes on 1-inch centers, the plate has three T-slots milled on its long axis to provide additional mounting capabilities. 10-32 holes are also provided as needed for mounting the Sherline P/N 3700 or 8700 rotary table. Provided with the plate are six 10-32 x 7/16″ mounting screws and T-nuts. Also provided are four 1/4″ diameter steel pins that go in locating holes in the bottom of the T-slots to help quickly locate parts parallel to the axis of the plate. The plate is made from 6061-T6 aluminum that is accurately milled to 3/4″ thick, which is 1/4″ thicker than our standard P/N 3560 tooling plate. The surface is not anodized. Therefore, additional machining to the plate can be done to suit your unique needs.

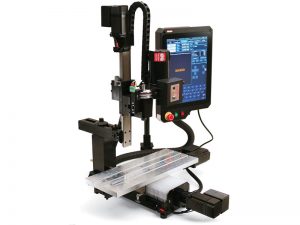

This tooling plate was designed to give our customers a larger work surface. The plate was designed primarily for the 5800 NexGen mill. When mounted on the 5800, it will increase the usable machining area of the mill to a full 7″ x 13″ (that’s an additional 5.0″ in the Y-axis and 8.2″ in the X-axis).
NOTE: It can also be used on the 2000 mill, however, it limits the usable Y-axis travel to 2.85″.
(CLICK HERE for product details)
Monthly Special Discount will be applied at checkout.
P/N 3563 7″ x 18″ Mill Tooling Plate – Regularly $275.00, Save $55.00, Now only $220.00
This 7″ x 18″ tooling plate is a larger version of the 7″ x 13″ tooling plate (P/N 3562) that comes standard with the 5800 NexGen Mill. In addition to an extensive pattern of 10-32 holes on 1-inch centers, the plate has three T-slots milled on its long axis to provide additional mounting capability. 10-32 holes are also provided as needed for mounting the Sherline P/N 3700 or 8700 rotary table. Provided with the plate are six 10-32 x 7/16″ mounting screws and T-nuts. Also provided are four 1/4″ diameter steel pins that go in locating holes in the bottom of the T-slots to help quickly locate parts parallel to the axis of the plate.
The plate was designed primarily for the 5800 NexGen mill. When mounted on the 5800, it will increase the usable machining area of the mill to a full 7″ x 13″ (that’s an additional 5.0″ in the Y-axis and 8.2″ in the X-axis).
NOTE: It can also be used on the 2000 mill, however, it limits the usable Y-axis travel to 2.85″.
(CLICK HERE for product details)
Monthly Special Discount will be applied at checkout.
P/N 3750 Tilting Angle Table – Regularly $115.50, Save $23.10, Now only $92.40
This accessory offers a great variety of setup options. With the base mounted square to the mill table, parts mounted to the tilted table can be machined or drilled at precise angles. It can be set at any angle from 0° to 90°. The hole pattern in the table accepts Sherline’s mill vise and rotary table. A threaded chuck mount is also included.
(CLICK HERE for product details)
Monthly Special Discount will be applied at checkout.
P/N 3725 5″ Rotary Table Tooling Plate – Regularly $47.25, Save $9.45, Now only $37.80
The rotary table tooling plate is just under 5-1/2″ in diameter and is designed to mount on the Sherline 4″ rotary table with T-nuts and mounting screws. It has a pre-drilled and tapped pattern of 10-32 holes to facilitate mounting of fixtures to its surface. The holes are on 1″ centers except for the outermost holes. You can also drill and tap additional holes as your job requires.
(CLICK HERE for product details)
Monthly Special Discount will be applied at checkout.
