Upgraded DRO Chip
Beginning August 1st, 2021, all DROs will ship with an upgraded chip. This new chip upgrade allows our Digital Readout to function with our ball screw machines as well as our standard leadscrew machines. We also programmed some upgrades based on customer feedback, like using Metric on Inch machines and using Inch on Metric machines.
The new DRO chip has six different modes to choose from based on the machine type, e.g., mill, lathe, leadscrew, or ball screw, and your preference of either inch or metric display on the DRO.
For more detailed information on setting up the modes for DRO, please see the DRO Mode Instructions.
NOTE: You must make sure you have the correct RPM tach sticker for your machine. Use a 6-pulse (P/N 81510) tach sticker if your machine is a leadscrew machine or a 5-pulse tach sticker (P/N P/N 87860) if your machine is a ball screw machine.

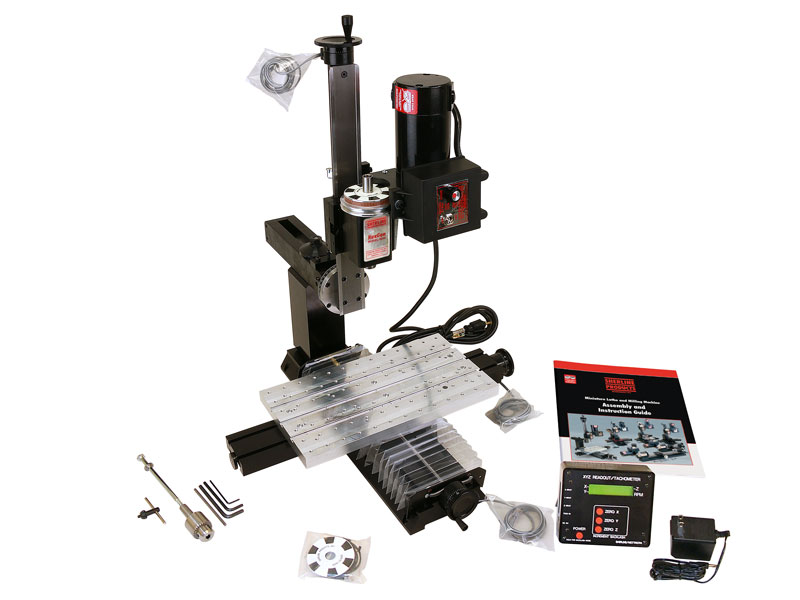

Any Sherline milling machine can be ordered with digital readouts factory installed. The installation includes special handwheels with built-in electronic encoders that replace the standard handwheels. (The standard handwheels are not included when the DRO option is ordered.) These special DRO handwheels are connected to an electronic readout box that translates the handwheel movement into a display of table travel for each of the three axes of movement. The readout for any axis can be reset to zero at any time with the push of a button. Spindle RPM is also constantly displayed on the box whenever the motor is running. The readout can be fitted to either inch or metric machines.
The display shows the position of each axis in relation to a zero point that you establish. Inch versions show position to three and a half decimal places or to within .0005″. Metric versions show position to within .01 mm. Backlash can be electronically eliminated by setting its measured value into the readout box for each axis. When handwheel rotation changes direction, the backlash value is electronically subtracted before the readout counts in the other direction.
The ease with which distance and direction can be kept track of with this system will add a new level of enjoyment to your machining. It also helps eliminate some of the tedious jobs of keeping track of handwheel revolutions and thereby helps eliminate errors.
NOTE: The unit does not translate dimensions from inch to metric. It must be initialized to work with the pitch of the leadscrew to which the handwheel is attached.
Most of our cutting tools, like center drills, are manufactured in a fractional size. If you have a metric machine with metric holders, like collets or end mill holders, you will need to order fractional holders to accommodate our cutting tools.

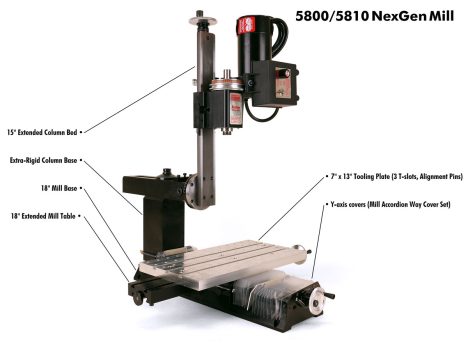

Standard equipment for the mill includes:
- A powerful 90V DC motor with electronic speed controller
- 18″ mill base with Y-axis leadscrew protection
- 2.75″ (70 mm) x 18.0″ (457 mm) extended mill table with two T-slots
- 7″ x 13″ tooling plate
- 15″ (63mm) extended column bed
- Extra-rigid column base
- Special handwheels are supplied with DRO machines. These handwheels can be reset to zero electronically with the push of a button on the DRO display box. Sherline DRO mills are outfitted with the special DRO 2″ (51mm) handwheels on the Y-axis leadscrew and X-axis table feed screw, and a 2.5″ handwheel on the Z-axis vertical feed screw. Each handwheel has laser engraved aluminum handwheel collars
- ¼” Drill Chuck w/ key, #1 Morse arbor with drawbolt
- Oil reservoirs on the X-, Y- and Z-axes
- Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual
Always wear safety glasses when operating machine tools.
(table to spindle)
|14.00″ (356 mm)|
(w/ headstock spacer)
|Travel, “X” Axis||13.65″ (347 mm)|
|Travel, “Y” Axis||11 ″ (279 mm); 8.9″ (226 mm) with tooling plate attached|
|Travel, “Z” Axis||5.38″ (137 mm)|
|Hole through spindle||.405″ (10 mm)|
|Spindle nose thread||3/4″-16 T.P.I.|
|Spindle nose taper||#1 Morse|
|Handwheel graduations||.001″ (.01 mm)|
|Electronically controlled spindle speed range||70 to 2800 RPM|
|Width Overall||20.00 (508 mm)|
|Depth Overall||Base footprint: 20.75″ (527 mm); With fully extended brass leadscrew cover: 28″ (711 mm)|
|Height Overall (Max.)||24.50″ (622 mm)|
|Table size||2.75″ x 18.00″ (70 x 457 mm)|
|Hold-down provision||3 T-Slots|
|Shipping Weight||66 lb. (29.93 kg)|
|Movements in addition to X-, Y- and Z-axes||Headstock rotation 90° left/right|
|Column pivot||90° forward/back|
|Column swing||90° left/right|
|Column travel||(in/out) 5.5″ (140 mm)|
|Motor||90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz. Click here for motor specifications|
|Spindle Speed Range||70-2800 RPM continuously variable by electronic speed control|
*Overall dimensions include motor and speed control
Click on the link for the exploded view of the 5800/5810 Mill to help identify replacement parts.
If you are still uncertain please call our customer service representatives for help with this item.
|5000 (5100)||5400 (5410)||2000 (2010)||5800 (5810)|
(table to spindle)
|8.00″ (203 mm)||8.00″ (203 mm)||9.00″ (229 mm)||14.00″ (356 mm)|
|Throat (no spacer)||2.25″ (50 mm)||2.25″ (50 mm)||Adjustable||Adjustable|
|Throat (w/ headstock spacer)||Optional||3.50″ (90 mm)||Adjustable||Adjustable|
|Travel: X-axis (with stop)||8.65″ (220 mm)||8.65″ (220 mm)||8.65″ (220 mm)||13.65″ (347 mm)|
|Travel: Y-axis||3.00″ (76 mm)||5.00″ (127 mm)||7.00″ (178 mm)||11.00″ (279 mm)|
|Travel: Z-axis||6.25″ (159 mm)||6.25″ (159 mm)||5.38″ (137 mm)||9.38″ (238 mm)|
|Hole through spindle||.405″ (10 mm)||.405″ (10 mm)||.405″ (10 mm)||.405″ (10 mm)|
|Spindle nose thread||3/4-16 T.P.I.||3/4-16 T.P.I.||3/4-16 T.P.I.||3/4-16 T.P.I.|
|Spindle nose taper||#1 Morse||#1 Morse||#1 Morse||#1 Morse|
|Spindle runout of Morse taper||.0005″ or less||.0005″ or less||.0005″ or less||.0005″ or less|
|Handwheel graduations||.001″ (.01 mm)||.001″ (.01 mm)||.001″ (.01 mm)||.001″ (.01 mm)|
|Handwheel Type||Standard Handwheels||Zero Adjustable Handwheels (With the exception of DRO machines which come with DRO handwheels)||Zero Adjustable Handwheels (With the exception of DRO machines which come with DRO handwheels)||Zero Adjustable Handwheels (With the exception of DRO machines which come with DRO handwheels)|
spindle speed range
|70 to 2800 RPM||70 to 2800 RPM||70 to 2800 RPM||70 to 2800 RPM|
|Width overall||14.75″ (375 mm||15.00″ (381 mm)||15.00″ (381 mm)||20.00 (508 mm)|
|Depth overall||11.75″ (298 mm)||14.00″ (356 mm)||22.25″ (565 mm)||23.13″ (588 mm)|
|Height overall (Max.)||20.75″ (527 mm)||20.75″ (527 mm)||23.38″ (568 mm)||24.50″ (622 mm)|
|Table size||2.75″ x 13.00″
(70 mm x 330 mm)
|2.75″ x 13.00″
(70 mm x 330 mm)
|2.75″ x 13.00″
(70 mm x 330 mm)
|2.75″ x 18.00″
(70 x 457 mm)
|Hold-down provision||2 T-slots||2 T-slots||2 T-slots||3 T-slots|
|Shipping weight||33 lb (15.0 kg)||36 lb (16.3 kg)||38 lb (17.2 kg)||50 lb. (22.7 kg)|
|Movements in addition
to X-, Y- and Z-axes
|Column rotation||N/A||N/A||(90° L/R)||N/A|
|Column pivot||N/A||N/A||(90° Fwd/Bk)||(90° Fwd/Bk)|
|Column travel||N/A||N/A||(In/Out) 5.5″ (140 mm)||(In/Out) 5.5″ (140 mm)|
|Input voltage||100 to 240 VAC, 50 or 60 Hz|
|Output to motor||90 VDC|
|Current draw||.5 to 15 amps depending on load|
|No-load output shaft speed||6000 RPM (no pulley)|
|Click here for more detailed specs|
|Spindle End play (factory
adjustment of preload)
|.0002″ (.005 mm) or less, normal pulleys|
|Runout at nose||.0005″ (0.013 mm) or less|
|Bearings||Two 20 mm lifetime lubricated ball bearings with adjustable preload|
