Tilting Angle Table
Product Description
About the Tilting Angle Table
This accessory offers a great variety of setup options. With the base mounted square to the mill table, parts mounted to the tilted table can be machined or drilled at precise angles. It can be set at any angle from 0° to 90°. The hole pattern in the table accepts Sherline’s mill vise and rotary table. A threaded chuck mount is also included, which means parts from the lathe can have machining operations done on them without removing them from the chuck. They can then be put back on the lathe for further operations without re-centering.
With the rotary table mounted to the table and tilted, many additional machining possibilities are opened up. The pre-drilled and tapped hole pattern is laid out so that when the rotary table is rotated to the 90° position, its center is the same height as the right angle adjustable tailstock P/N 3702. This eliminates the need for the P/N 3701 right-angle attachment.
Like the 90° Angle Plate P/N 3559 and the Rotary Table P/N 3700, this accessory can also be useful for setups on other machines in addition to your Sherline machines.

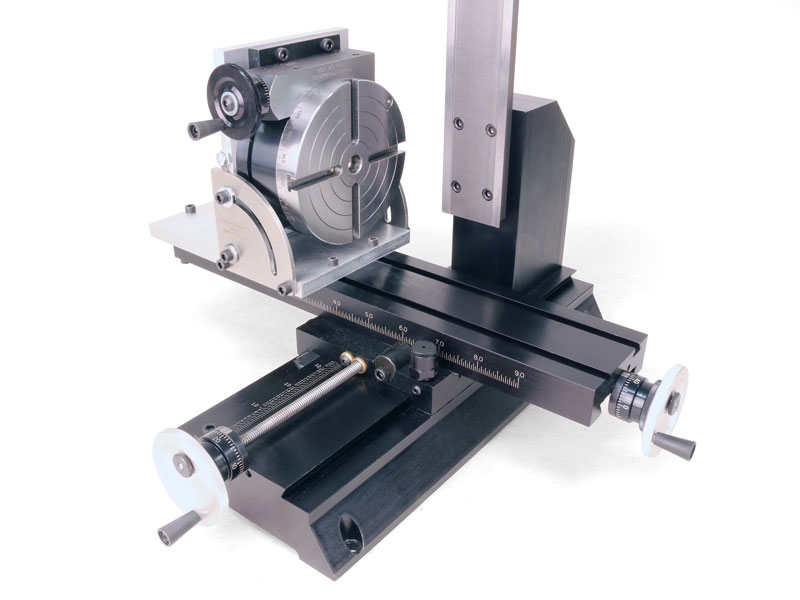

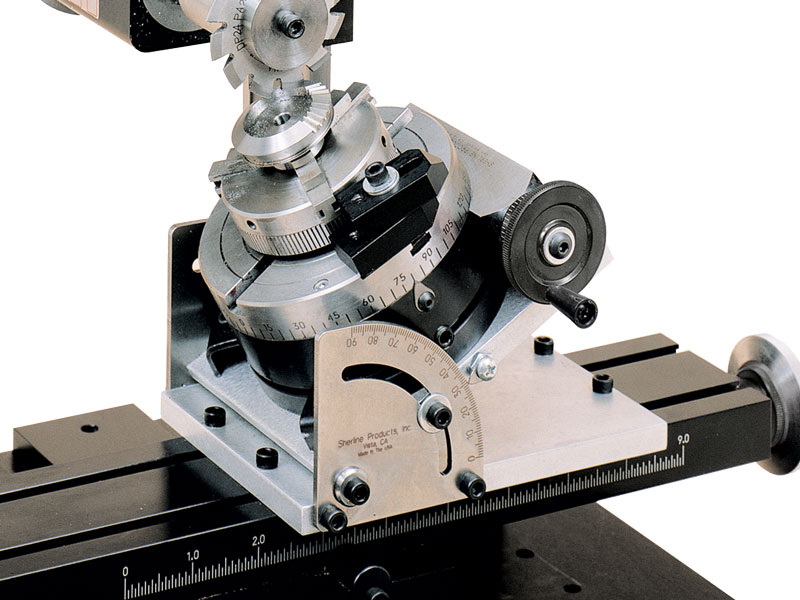

Examples of mounting a Rotary Table on the Tilting Angle Table
Click on the image for a larger view.
Click on the image for a larger view.
|
|
Always wear safety glasses when operating machine tools. |
|
Download PDF 3750 Instructions
|
Download PDF MASSO Rotary Table Limit Switch Interference on the Tilting Angle Table Instructions
|
Tilting Angle Table |
|
|---|---|
| Tilting Angle Table Material | Aluminum |
| Body Coating | N/A |
| Body Dimensions (H x W x D) | 2.625″ x 6″ x 4.125″ |
| 37540 | Tilting Angle Table Bottom Plate |
|---|---|
| 37510 | Tilting Angle Table Top Plate |
| 37520 | Tilting Angle Table Side Plate, Plain |
| 37530 | Tilting Angle Table Side Plate, Engraved |
| 37550 | Tilting Angle Table Bushing (2) |
| 37560 | Tilting Angle Table 3/4-16 Chuck Hold Down |
| 30561 | 10-32 T-Nuts (4) |
| 40670 | 10-32 x 1/2” SHC Screw (13) |
| 40660 | 3/16” I.D. Washer (2) |
| 50120 | Pointer |
| 32100 | 10-32 hex nut |
| 37531 | 8-32 X 3/8″ Pan Head Phillips Screw |
Click the P/N below to download a zipped version of the IGS 3D CAD file. You will need to extract the zip file before viewing the IGS file.
3750 Tilting Angle Table 3D IGS model
You need an IGS viewer to view .igs files. CLICK HERE to download a FREE IGS viewer.
