Right-Angle Attachment

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: 3701 Categories: , ,

Product Description

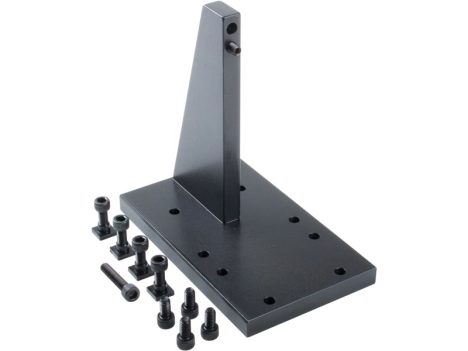

About the Right-Angle Attachment

The rotary table is made even more versatile with the addition of the right-angle attachment. This part has been designed to accurately align the rotary table in a vertical position while still maintaining rigidity. The rotary table is often used in the vertical position for holding an arbor when gear cutting or drilling holes around the outside of a part. It is designed to be used in conjunction with the Adjustable Right Angle Tailstock P/N 3702 in this capacity. All mounting hardware is included.

NOTE: The P/N 3750 Tilting Angle Table can be used in place of this accessory when tilted to the 90° position. Though more expensive, it is also more versatile and might be worth considering as an alternative.

Here is a sample setup to cut a gear using the rotary table mounted to the right angle attachment. An adjustable right angle tailstock steadies the other end of the long shaft.
Here is a sample setup to cut a gear using the rotary table mounted to the right angle attachment. An adjustable right-angle tailstock steadies the other end of the long shaft.



warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF 3701 Instructions

Instructions PDF 3701 Download

30561 (4) 10-32 T-nuts
31080 10-32 x 3/8″ Set Screw
37180 Upright
37190 Right Angle Base
40330 (2) 10-32 x 5/8″ SHC Screw
40340 10-32 x 1″ SHC Screw
40510 (4) 10-32 x 3/8″ SHC Screw
40670 10-32 x 1/2″ SHC Screw

Click the P/N below to download a zipped version of the IGS 3D CAD file. You will need to extract the zip file before viewing the IGS file.
3701 Right Angle Attachment 3D IGS Model
You need an IGS viewer to view .igs files. CLICK HERE to download a FREE IGS viewer.
