Gear Tooth Cutter Holder
Product Description
About the Gear Tooth Cutter Holder

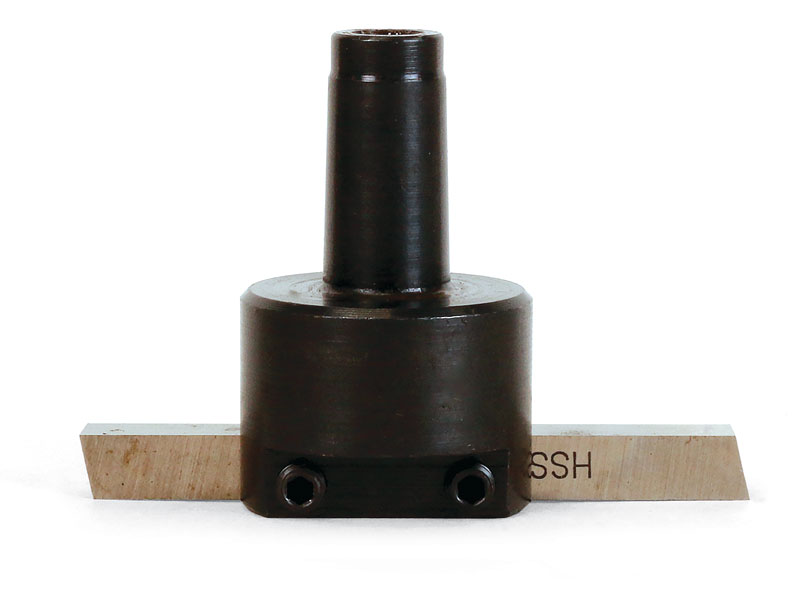

The gear tooth cutter is included with the purchase of the indexing attachment and can also be purchased separately. It looks much like a small fly cutter and includes a 1/4″ high-speed steel tool blank that you can custom grind to the particular gear tooth shape you need. The cutter can be used in conjunction with both the indexing attachment and rotary table. The #1 Morse taper on the shaft is held in the spindle with a drawbolt and special washer.
This is an economical alternative to round commercial involute gear cutters. Also, grinding your own cutter shape, while somewhat time-consuming, offers unlimited possibilities for matching existing gear tooth shapes when making replacements for gears with broken teeth. Simply use your existing gear as a pattern when grinding the cutter shape. With a little practice and skill, good cutters can be ground on a regular bench grinder.
Here is a sample setup to cut a gear using the rotary table mounted to the right angle attachment. An adjustable right angle tailstock steadies the other end of the long shaft. The teeth are being cut using a P/N 3217 gear tooth cutter holder.
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use. |
Always wear safety glasses when operating machine tools. |
| Download PDF P/N 3200 Indexing Attachment Instructions
|
Download PDF P/N 3700 4″ Rotary Table Instructions
|

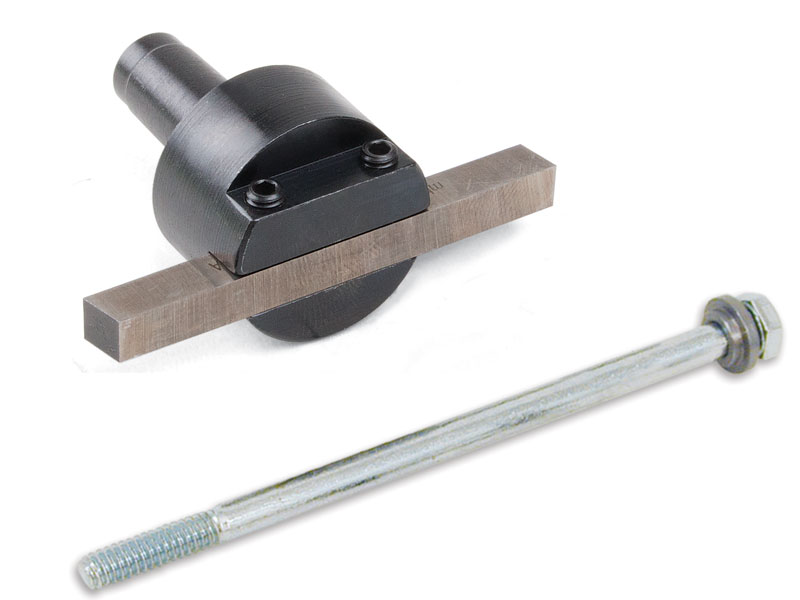

| Part No. | Description | Quantity |
|---|---|---|
| 3005 | HSS Tool Blank | 1 |
| 30880 | 1/4″-20 x 5” Drawbolt with Washer | 1 |
| 31080 | 10-32 x 3/8″ Set Screw | 2 |
| 32170 | Gear Tooth Cutter Body | 1 |
