CNC-Ready Rotary Table
Product Description

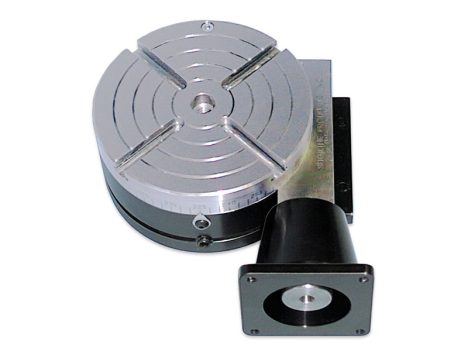

Sherline has taken its P/N 3700 manual 4″ rotary table and applied a stepper motor mount with dampened coupling in place of the handwheel. The mount accepts a NEMA #23 frame-size stepper motor for CNC control. This allows the table to be used as a 4th axis with CNC systems that have the capability to drive a rotary axis.
This table is also available as P/N 8700, which includes a stepper motor and a self-contained CNC controller for use as a stand-alone CNC indexer.
NOTE: We are stating the following weight limits for our rotary tables for continual use.
- Horizontal orientation—50 lbs.
- Vertical orientation—30 lbs.
- Vertical rotational torque—6 foot/lbs. (meaning it can lift a 6 lb. weight when suspended 12″ away from the center of the rotary table)
The rotary tables can hold more weight when they are not under a continual load. Click on the Video tab above to see examples of different weights and uses for our rotary tables.
NOTE: CNC-ready machines cannot be operated manually until stepper motors are installed.
Using the rotary table with the limit switches on the TAT
NOTE: For instructions on using the rotary table with the limit switches on the TAT, click on the Instructions tab above and download the PDF MASSO Rotary Table Limit Switch Interference on the Tilting Angle Table.
Use in laser marking systems
Sherline’s rotary table offers an accurate, stable platform for rotary laser marking applications. Its compact size makes it a good fit in small enclosures. See this YouTube link for a video of a Sherline CNC-ready rotary table in use in a laser marking application on a round part, illustrating the difference between trying to mark on a round part without rotating it vs. rotating it. The video is from Jimani Inc. Laser Marking Systems who use a high-speed motor to drive the table. A Sherline chuck holds the part. A second YouTube video from Jimani shows a typical round part marking operation from start to finish.
NOTE: Because components of the table are ground as a set during production, the P/N 3700 rotary table cannot be upgraded to the P/N 3700-CNC version later on. A new rotary table with stepper motor worm housing must be purchased.
|
|
Always wear safety glasses when operating machine tools. |
|
Download PDF 3700-CNC Ready Instructions
|
Download PDF 3700 Instructions
|
|
Download PDF Troubleshooting CNC Rotary Table Problems
|
Download PDF CNC Rotary Table Maintenance Instructions
|
|
Download PDF MASSO Rotary Table Limit Switch Interference on the Tilting Angle Table Instructions
|
CNC Rotary Table in Action
Rotary Table Weight Capacity Specifications |
|
|---|---|
| Horizontal orientation | 50 lbs. |
| Vertical orientation | 30 lbs. |
| Vertical rotational torque | 6 foot/lbs. (meaning it can lift a 6 lb. weight when suspended 12″ away from the center of the rotary table) |
| Mechanical backlash | 0.2° or less |
*NOTE: If you need a metric equivalent for the 10-32 thread, you can use a 5 x .8mm thread. If the fit is too tight, you can retap the 10-32 holes with a 5 x .8mm tap, and the new threads should be fine.
| Part No. | Description | Quantity |
|---|---|---|
| 10930 | 3/8″ Bearing | 2 |
| 30561 | 10-32 T-nut | 2 |
| 3058 | 4-Jaw Hold Down Set Assembly | 1 |
| 37090 | Rotary Table Chuck Adapter, 3/8-16 to 3/4-16 | 1 |
| 37100 | Rotary Table Base | 1 |
| 37110 | Rotary Table Top | 1 |
| 37121 | CNC Rotary Table Worm Housing (Not sold separately) | N/A |
| 37131 | CNC Rotary Table Worm Shaft (Not sold separately) | N/A |
| 37122 | CNC Rotary Table Worm Housing Assembly (P/Ns 37121, 37131) | 1 |
| 37123 | CNC Rotary Table Coupling | 1 |
| 37124 | CNC Rotary Table Coupling Adapter | 1 |
| 37150 | Oil Plug | 1 |
| 37160 | Preload Nut | 1 |
| 37170 | Lock Pin | 1 |
| 37200 | Button Head Screw, 10-32 X 3/8″ | 2 |
| 37210 | Hold Down Tab | 1 |
| 37220 | Button Head Screw, 6-32 X 1/4″ | 1 |
| 40050 | Handwheel Assembly | 1 |
| 40330 | 10-32 X 5/8″ SHCS | 2 |
| 40420 | Headstock Bearing | 1 |
| 40510 | SHC Screw, 10-32 X 3/8″ | 1 |
| 40520 | Cup Point Set Screw, 10-32 X 3/16″ | 4 |
| 40540 | Cone Point Set Screw, 5/16-18 X 3/4″ | 1 |
| 40660 | Washer | 1 |
| 40670 | 10-32 X 1/2″ SHCS | 2 |
| 50120 | Pointer | 1 |
| 12050 | SHC Screw, 8-32 X 3/8″ | 4 |
| 87510 | CNC Rotary Table Stepper Motor Mount | 1 |
Click the P/Ns below to download a zipped version of the IGS 3D CAD file. You will need to extract the zip file before viewing the files.
3700-CNC 3D IGS model
You need an IGS viewer to open .igs files. CLICK HERE to download a FREE IGS viewer.
