Compatible with drill chucks using the #1 Morse taper in the mill, the gear tooth cutter, and #1 Morse blank.
Back to Replacement Parts
We have temporarily stopped ALL SALES through our website, by phone or by email, of our products to allow us to catch up on our current orders. Thank you for your patience and we apologize for any inconvenience.
Image shown is a representation only. Actual product may vary.

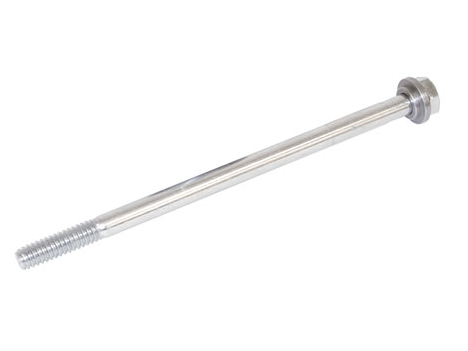

1/4″-20 x 5″ Drawbolt with Washer
Related products
1/4″ Drill Chuck with #1 Morse Arbor
The Sherline Milling Machine makes an excellent precision drilling machine. Accurate positioning of both the "X" and "Y" axes provide a simple way to locate holes, and, although the Sherline does not have a quill feed, the "Z" axis feed screw does give you micrometer accuracy for depth control. The drill chuck is similar to the tailstock chuck used with the lathe in that it is a 3/32" (2.4 mm) to 1/4" (6.35 mm) drill chuck mounted on a #1 morse arbor. The difference is that this arbor has been drilled and tapped for a drawbar. The drawbar prevents the arbor from working loose during use.
NOTE: If runout of less than .003″ amount is required, collets should be used to hold the drill rather than a chuck. This chuck is NOT designed for lateral loads and should not be used for holding end mill cutters
3/8″ Drill Chuck with #1 Morse Arbor
This chuck includes a #1 Morse arbor and drawbolt so that it can be mounted in the headstock of the lathe or mill. It will hold drills from 3/32" (2.4 mm) to 3/8" (9.5 mm) in diameter. If runout of less than .003″ amount is required, collets should be used to hold the drill rather than a chuck.
NOTE: Because of its longer length and ability to hold longer 3/8" drills, this chuck is normally recommended for use on the longer 4400-series benchtop lathes.
