12″ Deluxe Vertical Milling Machine

Clear selection
    Reset options
SKU: N/A Category:

Product Description

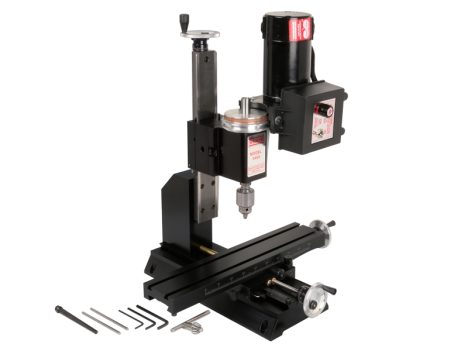

The deluxe mill is our most popular mill. It comes equipped with all of Sherline’s standard features upgraded to include a laser engraved 12″ (305mm) solid aluminum base for 2″ of additional Y-axis travel, laser engraved scales on the table and base, 2-1/2″ (63mm) adjustable “zero” handwheel on the Z-axis and 2″ (51mm) adjustable “zero” handwheels on the X- and Y-axes, a mill headstock spacer to provide more throat distance and a 1/4″ drill chuck and drawbolt.

All Sherline mills feature precision machined dovetailed slides with adjustable gibs, permanently lubricated spindle bearings, adjustable preload anti-backlash feed screws and a high-torque 90V DC motor with electronic speed control. Speed is continuously variable from 70 to 2800 RPM without gear or belt changes. A second pulley position is also available to provide extra torque at low RPM if needed.

Standard equipment for the mill includes:

  • A powerful 90V DC motor with electronic speed controller
  • 12″ base
  • 2-1/2″ (63mm) adjustable “zero” handwheel on the Z-axis and 2″ (51mm) adjustable “zero” handwheels on the X- and Y-axes
  • 2.75″ (70 mm) x 13.0″ (330 mm) table with two T-slots
  • Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual
  • Headstock spacer block
  • ¼” Drill Chuck w/ key, #1 Morse arbor with drawbolt

New Mill Features

  • Oil reservoirs on the X/Y axes and the Z axis to help keep critical parts lubricated. These were initially developed for CNC machines that run constantly for hours on end but can benefit manual machines as well
  • Brass leadscrew cover that keeps chips off the rear of the Y-axis leadscrew

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Assembly and Instruction Guide

Instructions PDF Download

Max clearance
(table to spindle)
8.00″ (203 mm)
Throat
(no spacer)
Optional
Throat
(w/ headstock spacer)
Adjustable
Travel, “X” Axis 8.65″ (220 mm)
Travel, “Y” Axis 5.00″ (127 mm)
Travel, “Z” Axis 6.25″ (159 mm)
Hole through spindle .405″ (10 mm)
Spindle nose thread 3/4″-16 T.P.I.
Spindle nose taper #1 Morse
Spindle runout of Morse taper .0005″ or less
Handwheel graduations .001″ (.01 mm)
Electronically controlled spindle speed range 70 to 2800 RPM
Width Overall* 15.00″ (381 mm)
Depth Overall* Base footprint: 13.875″ (352.5 mm); With fully extended brass leadscrew cover: 16.75″ (425.5 mm)
Height Overall (Max.)* 20.75″ (527 mm)
Table size 2.75″ x 13.00″ (70 x 330 mm)
Hold-down provision 2 T-Slots
Shipping Weight 40 lb. (18.2 kg)
Movements in addition
to X-, Y- and Z-axes
Headstock rotation (90° left/right)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.

Click here for motor specifications
Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control

*Overall dimensions include motor and speed control

Click on the link for the exploded view of the 5000 and 5400 Series Manual Mills to help identify replacement parts.

If you are still uncertain please call our customer service representatives for help with this item.

5000 (5100) Mill 5400 (5410) Mill 5800 NexGen Mill
5000 (5100) 5400 (5410) 2000 (2010) 5800 (5810)
Max. clearance
(table to spindle)
8.00″ (203 mm) 8.00″ (203 mm) 9.00″ (229 mm) 14.00″ (356 mm)
Throat (no spacer) 2.25″ (50 mm) 2.25″ (50 mm) Adjustable Adjustable
Throat (w/ headstock spacer) Optional 3.50″ (90 mm) Adjustable Adjustable
Travel: X-axis (with stop) 8.65″ (220 mm) 8.65″ (220 mm) 8.65″ (220 mm) 13.65″ (347 mm)
Travel: Y-axis 3.00″ (76 mm) 5.00″ (127 mm) 7.00″ (178 mm) 11.00″ (279 mm)
Travel: Z-axis 6.25″ (159 mm) 6.25″ (159 mm) 5.38″ (137 mm) 9.38″ (238 mm)
Hole through spindle .405″ (10 mm) .405″ (10 mm) .405″ (10 mm) .405″ (10 mm)
Spindle nose thread 3/4-16 T.P.I. 3/4-16 T.P.I. 3/4-16 T.P.I. 3/4-16 T.P.I.
Spindle nose taper #1 Morse #1 Morse #1 Morse #1 Morse
Spindle runout of Morse taper .0005″ or less .0005″ or less .0005″ or less .0005″ or less
Handwheel graduations .001″ (.01 mm) .001″ (.01 mm) .001″ (.01 mm) .001″ (.01 mm)
Handwheel Type Standard Handwheels Zero Adjustable Handwheels Zero Adjustable Handwheels Zero Adjustable Handwheels
Electronically controlled
spindle speed range
70 to 2800 RPM 70 to 2800 RPM 70 to 2800 RPM 70 to 2800 RPM
Width overall 14.75″ (375 mm 15.00″ (381 mm) 15.00″ (381 mm) 20.00 (508 mm)
Depth overall 11.75″ (298 mm) 14.00″ (356 mm) 22.25″ (565 mm) 23.13″ (588 mm)
Height overall (Max.) 20.75″ (527 mm) 20.75″ (527 mm) 23.38″ (568 mm) 24.50″ (622 mm)
Table size 2.75″ x 13.00″
(70 mm x 330 mm)
2.75″ x 13.00″
(70 mm x 330 mm)
2.75″ x 13.00″
(70 mm x 330 mm)
2.75″ x 18.00″
(70 x 457 mm)
Hold-down provision 2 T-slots 2 T-slots 2 T-slots 3 T-slots
Shipping weight 33 lb (15.0 kg) 36 lb (16.3 kg) 38 lb (17.2 kg) 50 lb. (22.7 kg)
Movements in addition
to X-, Y- and Z-axes
Headstock rotation
(90° L/R)
Headstock rotation
(90° L/R)
Headstock rotation
(90° L/R)
Headstock rotation
(90° L/R)
Column rotation N/A N/A (90° L/R) N/A
Column pivot N/A N/A (90° Fwd/Bk) (90° Fwd/Bk)
Column swing N/A N/A (90°L/R) (90°L/R)
Column travel N/A N/A (In/Out) 5.5″ (140 mm) (In/Out) 5.5″ (140 mm)
Motor Specs
Input voltage 100 to 240 VAC, 50 or 60 Hz
Output to motor 90 VDC
Current draw .5 to 15 amps depending on load
No-load output shaft speed 6000 RPM (no pulley)
Click here for more detailed specs
Spindle Specs
Spindle End play (factory
adjustment of preload)
.0002″ (.005 mm) or less, normal pulleys
Runout at nose .0005″ (0.013 mm) or less
Bearings Two 20 mm lifetime lubricated ball bearings with adjustable preload
