Manual Rotary Table with Reverse Mount
Product Description

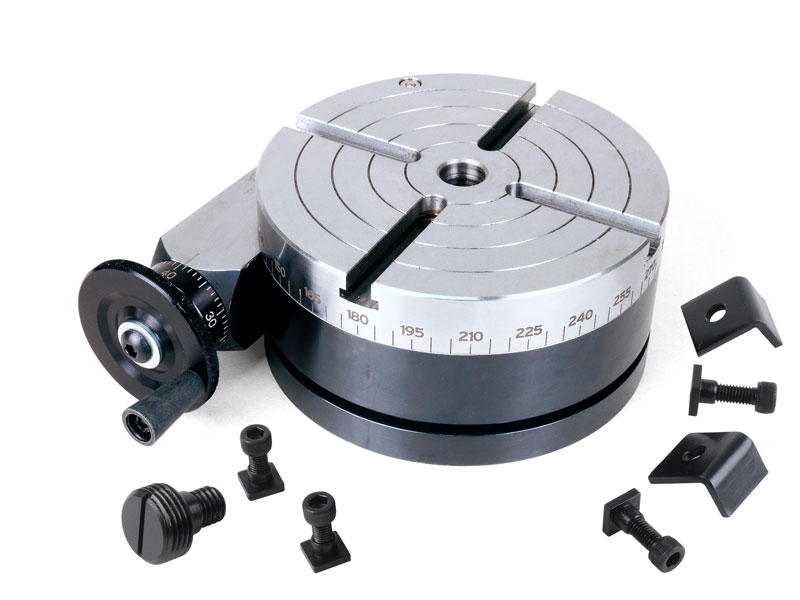

About the Sherline 4″ Reverse Rotary Table
The reverse rotary table is perfect for using on the tilting angle table. The reverse mount allows access to the handwheel from the front of the machine (see photo below). If you used a standard rotary table in the previously described set-up, the handwheel would be mounted facing the backside of the X-axis.
NOTE: When the worm housing is reversed to the opposite side, a clockwise rotation of the handwheel or stepper motor will result in a counter-clockwise rotation of the rotary table.
Weight Limitations for Continual Use
We are stating the following weight limits for our rotary tables for continual use.
- Horizontal orientation—50 lbs.
- Vertical orientation—30 lbs.
- Vertical rotational torque—6 foot/lbs. (meaning it can lift a 6 lb. weight when suspended 12″ away from the center of the rotary table)
The rotary tables can hold more weight when they are not under a continual load. Click on the Video tab above to see examples of different weights and uses for our rotary tables.
Included Parts:
- 1 Hold-down set
- 1 Chuck Adapter
If you would like to convert your current rotary table to the reverse set-up, you can send it back to Sherline, and we can make the change for a $104.25 charge (includes parts and labor). Just fill out the RMA Request form to received instructions on how to send items back to us.
Converting a Manual Table to CNC-Ready
NOTE: You can have your manual rotary table upgraded to CNC-ready, but this is done as a factory-only replacement. You will need to ship your manual rotary table back to our factory for the conversion.
CLICK HERE for details on the conversion process.
For in-depth details about the Sherline 4″ Rotary Table CLICK HERE.
|
|
Always wear safety glasses when operating machine tools. |
Download PDF 3700 Instructions
CNC Rotary Table in Action
Rotary Table Weight Capacity Specifications |
|
|---|---|
| Horizontal orientation | 50 lbs. |
| Vertical orientation | 30 lbs. |
| Vertical rotational torque | 6 foot/lbs. (meaning it can lift a 6 lb. weight when suspended 12″ away from the center of the rotary table) |
| Mechanical backlash | 0.2° or less |

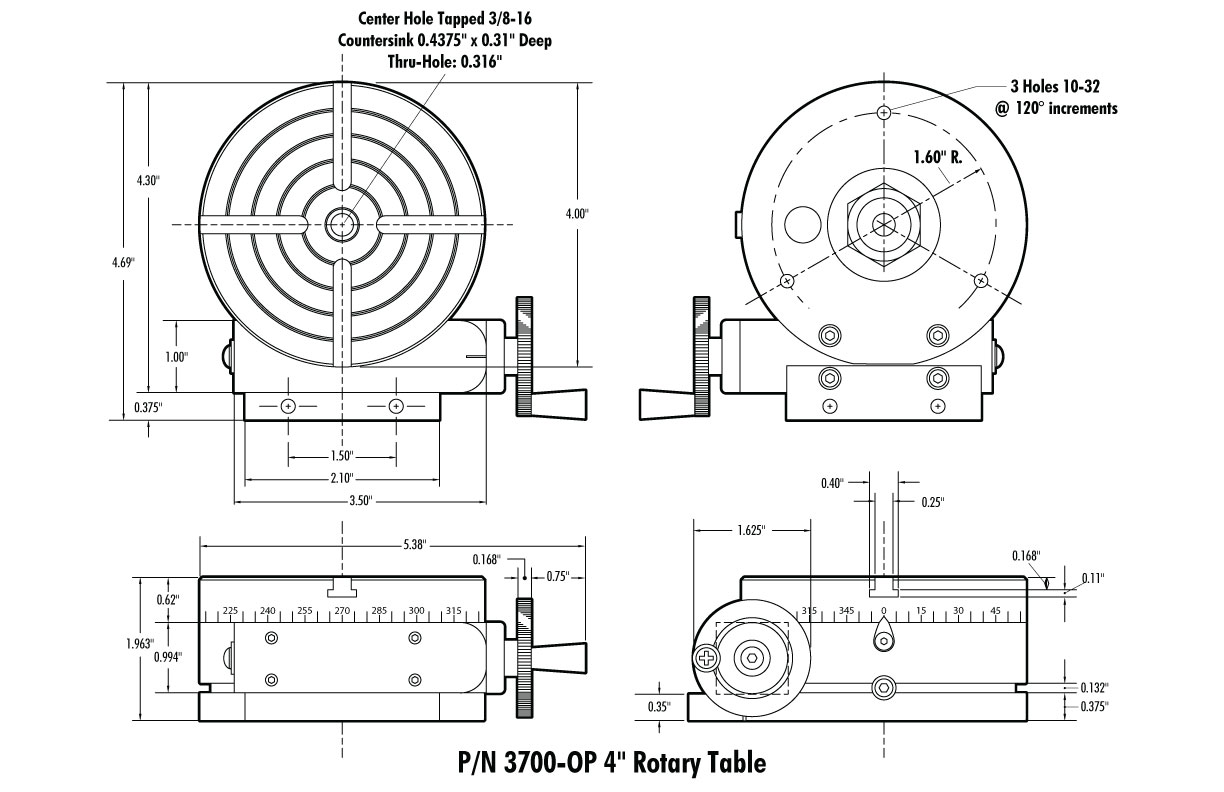

*NOTE: If you need a metric equivalent for the 10-32 thread, you can use a 5 x .8mm thread. If the fit is too tight, you can retap the 10-32 holes with a 5 x .8mm tap, and the new threads should be fine.
| Part No. | Description | Quantity |
|---|---|---|
| 10930 | 3/8″ Bearing | 2 |
| 30561 | 10-32 T-nut | 2 |
| 3058 | 4-Jaw Hold Down Set Assembly | 1 |
| 37090 | Rotary Table Chuck Adapter, 3/8-16 to 3/4-16 | 1 |
| 37100 | Rotary Table Base | 1 |
| 37110 | Rotary Table Top | 1 |
| 37120-OP | Worm Housing (Not sold separately) | 1 |
| 37130 | Worm Gear (Not sold separately) | 1 |
| 37150 | Oil Plug | 1 |
| 37160 | Preload Nut | 1 |
| 37170 | Lock Pin | 1 |
| 37200 | Button Head Screw, 10-32 X 3/8″ | 2 |
| 37210 | Hold Down Tab | 1 |
| 37220 | Button Head Screw, 6-32 X 1/4″ | 1 |
| 40050 | Handwheel Assembly | 1 |
| 40330 | 10-32 X 5/8″ SHCS | 2 |
| 40420 | Headstock Bearing | 1 |
| 40510 | SHC Screw, 10-32 X 3/8″ | 1 |
| 40520 | Cup Point Set Screw, 10-32 X 3/16″ | 4 |
| 40540 | Cone Point Set Screw, 5/16-18 X 3/4″ | 1 |
| 40660 | Washer | 1 |
| 40670 | 10-32 X 1/2″ SHCS | 2 |
| 50120 | Pointer | 1 |
Click the P/Ns below to download a zipped version of the IGS 3D CAD file. You will need to extract the zip file before viewing the files.
3700-OP Reverse Mount 3D IGS model
You need an IGS viewer to open .igs files. CLICK HERE to download a FREE IGS viewer.
