Rotary Scanner Riser Block and Base

Rotary Scanner Riser Block and Base

SKU: 3728 Category:

Product Description

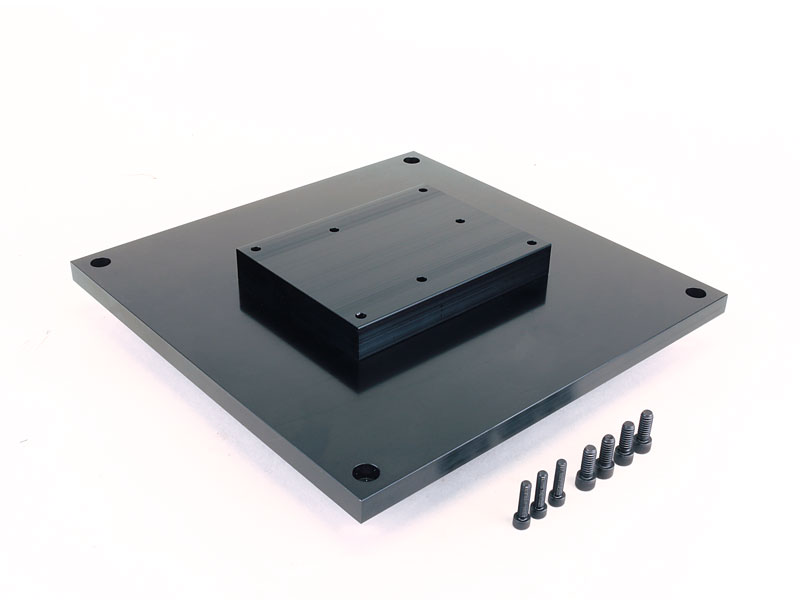

About the Rotary Scanner Riser Block and Base

This base plate is designed to stabilize the Sherline 4” rotary table when it is used with a scanning plate to hold large or heavy objects for laser scanning. The large 10” x 10” base is a 1/2″ thick and offers substantial support to keep the table from tipping if the scanned object is not perfectly centered. The 5 1/4″ x 4″ riser block raises the rotary table an additional 3/4″ above the base plate to provide clearance for the stepper motor. The total height of both plates is 1 1/4″. Holes are provided for mounting the rotary table to the base plate and also for mounting the base plate to a stable platform for additional security. The plates have a tough black anodized finish. Fastening screws are provided.

3728_w_rotary_pic
Rotary table not included, shown for reference only.

Kit includes seven socket-head screws to assemble the plates (rotary table purchased separately).

To see an exploded view of the rotary scanner riser block and base click on the “Instructions” tab and download the PDF.



Other Purchasing Options:

3D Scanning Plates for CNC Rotary Table

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 3728 Instructions

Instructions PDF Download

Rotary Scanner Riser Block and Base
Base Dimensions H x W x D 1/2″ x 10″ x 10″
Riser Block Dimensions H x W x D 3/4″ x 5-1/4″ x 4″
Material Aluminum
Body Coating Black Anodized
37260 Rotary Table Scanning Plate Base
37270 Rotary Table Scanning Plate Riser Block
40690 (3) 10-32 x 3/4″
61110 (4) 1/4-20 x 5/8″
