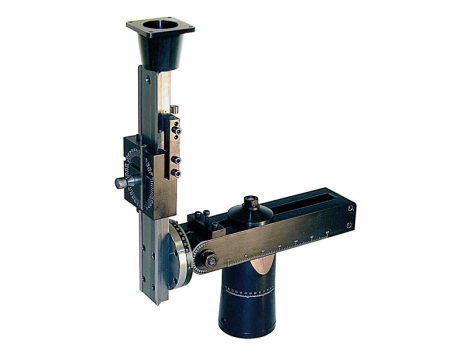

Multi-Direction Mill Column – CNC Ready

Clear selection
    Reset options
SKU: N/A Category: Tag:

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Assembly and Instruction Guide

Instructions PDF Download

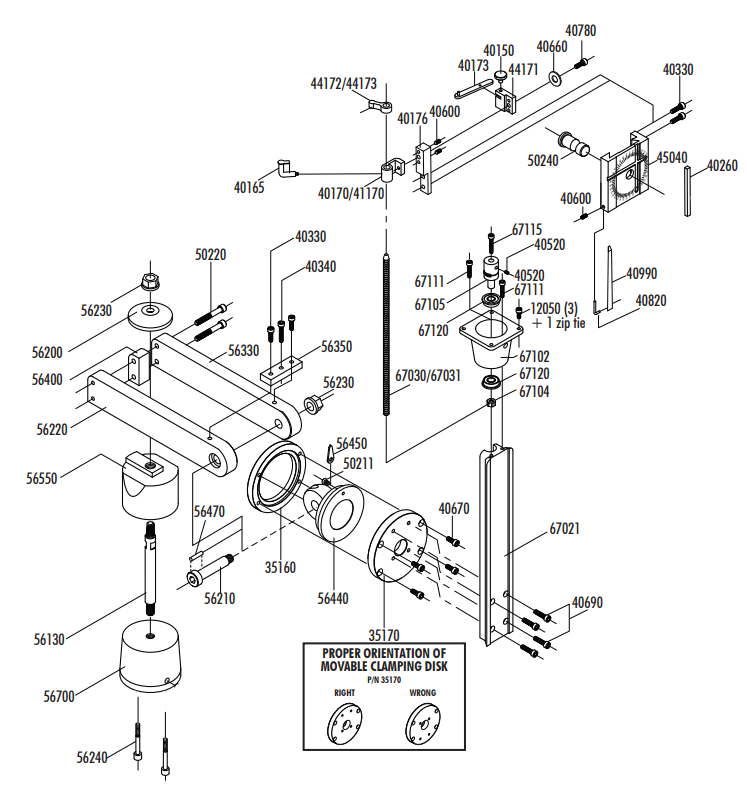

Part No. Description Quantity
12050 8-32 x 3/8″ SHCS 3
34060 Thrust Bearing Set 1
3455
3459
2.5″ Z Axis Zero Adjustable Handwheel (Inch)
2.5″ Z Axis Zero Adjustable Handwheel (Metric)
1
35160 Graduated Clamping Ring 1
35170 Movable Clamp Disk 1
40176 Saddle Travel Extension w/Screws 1
4017ZOL
4117ZOL
Z-Axis Backlash Adjustment Upgrade (Inch)
Z-Axis Backlash Adjustment Upgrade (Metric)
1
40260 Head Key 1
40330 10-32 x 5/8″ SHCS 4
40340 10-32 x 1″ SHCS 1
40600 10-32 x 1/4″ Flat Point Set Screw 1
40660 #10 Washer 3/16″ 1
40670 10-32 x 1/2″ SHCS 4
40690 10-32 x 3/4″ SHCS 4
40740 10-32 x 7/8″ SHCS 1
40820 Gib Lock 1
40900 10-32 x 3/8″ Flat Head Screw 1
40990 Saddle Gib 1
45030 Column Bed 1
45200 Bored Column Thrust 1
50211 8-32 x 1/4″ Button Socket Screw 1
50220 1/4-20 x 1-3/4″ SHCS 2
50240 Pivot Pin 1
56130 Arm Hold Down Bolt 1
56200 Arm Hold Down Washer 1
56210 3/8-16 x 2″ Should Bolt 1
56220 Swing Arm – Left Side 1
56230 3/8-16 Flange Nut 2
56240 1/4-20 x 1-1/2″ SHCS 2
56330 Swing Arm – Right Side 1
56350 Column Adjustment Block 1
56400 Arm Spacer Block 1
56440 Arm Mount 1
56450 Index Tab 1
56470 3/32″ x 1/2″ Dowel Pin 1
56550 Column Top 1
56700 Mill Column Base 1
67021 CNC Mill Column Bed 1
67030
67031
Column Lead Screw (Inch)
Column Lead Screw (Metric)
1
67102 Stepper Motor Mount 1
67104 CNC Preload Nut – Right Hand 1
671052 CNC Coupling 1
67111 8-32 x 7/8″ SHCS 2
67115 5-40 x 7/8″ SHCS 1
67120 Stepper Motor Preload Bearing 2
76140 5/64″ Hex Key 1
