3D Scanning Plates for CNC Rotary Table

Clear selection

-

SKU: N/A Category: Tag:

Product Description

These tooling plates are designed to be mounted to the Sherline 4″ CNC Rotary table to hold parts that are being laser scanned. Each plate has a pattern of 10-32 threaded holes for use in holding fixtures to align parts for 3D laser scanning. A series of concentric circles are also machined into the face of the plate to aid in visual centering of the parts to be scanned. An access hole is provided that should be aligned with the oiler hole on the surface of the rotary table for lubrication. On the bottom of the table, an alignment protrusion is provided that helps center the plate on the counter-bored hole in the center of the rotary table. Four 10-32 socket head cap screws and T-nuts are provided with each plate for securing it to the T-slots on the rotary table’s surface. The aluminum plates have a tough black anodized finish.

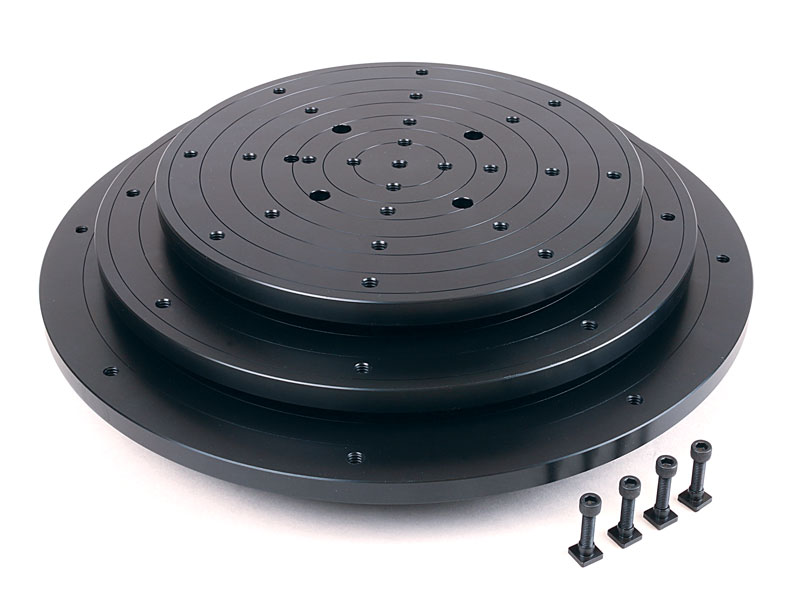

3726-27-28laz_picAll three plates are shown here in one photo as a means of comparison. They come in sizes 8″, 10″, and 12″ in diameter. All are designed to be used on Sherline 4″ Rotary Tables.

Notes on the Use of the Plates

3727laz_pic1
A 10″ diameter scanning plate is shown attached to a CNC version of the Sherline 4″ rotary table (rotary table purchased separately).

These plates are not intended for machining operations. A radial force at the outer diameter of the plate will exert more force on the rotary table worm, and worm gear for which the 4″ rotary table was designed. This plate was designed for laser scanning ONLY. Because the scanning plate is much larger than our 4″ rotary table, all parts that are mounted on the plate for scanning must be centered on the plate. Centering the part will locate the weight load in the middle of the rotary table.

Videos Available

Click on the Video tab above to view the scanning plates in operation.

Hole dimensions and locations on our scanner plates

Click on the images below for a larger view.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF 3726-LAZ Instructions

Instructions PDF Download

White Line 3D Scanning

Sherline Rotary Laser Scanning Table

Dimensions 12″ Diameter x 3/4″ High
10″ Diameter x 3/4″ High
8″ Diameter x 3/4″ High
Material Aluminum
Body Coating Black Anodized
37258 3D Laser Scanning Plate 8″ Blank
372510 3D Laser Scanning Plate 10″ Blank
372512 3D Laser Scanning Plate 12″ Blank
40670 (4) 10-32 X 1/2″ Skt Hd Cap Screw
30561 (4) T Nuts

Click the P/Ns below to download a zipped version of the IGS 3D CAD file. You will need to extract the zip file before viewing the IGS file.
3726LAZ 8″ Scanning Plate 3D IGS Model
3727LAZ 10″ Scanning Plate 3D IGS Model
3728LAZ 12″ Scanning Plate 3D IGS Model
You need an IGS viewer to view .igs files. CLICK HERE to download a FREE IGS viewer.
