Pin Jaws

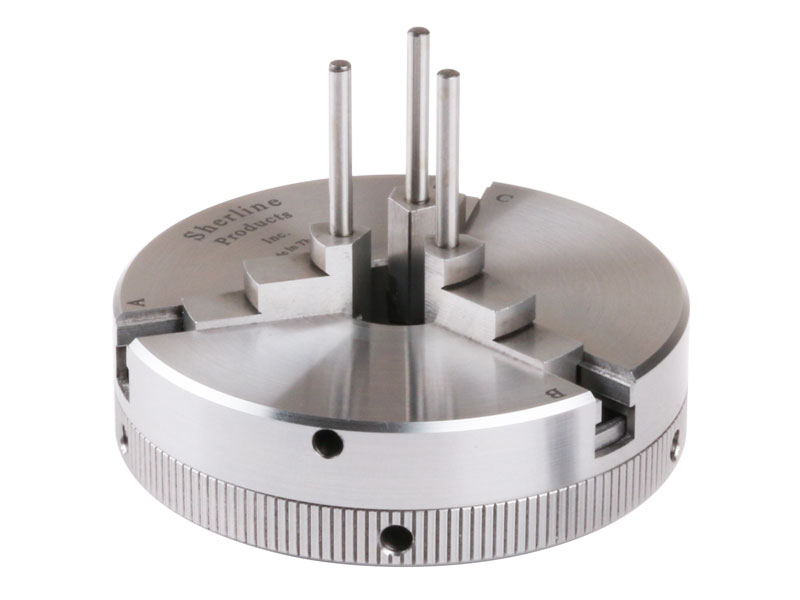

Chuck not included, shown for reference only

SKU: 1140 Categories: ,

Product Description

Each year our machines and accessories are being purchased for use in fields and areas other than their intended use. One of these areas is laser engraving.

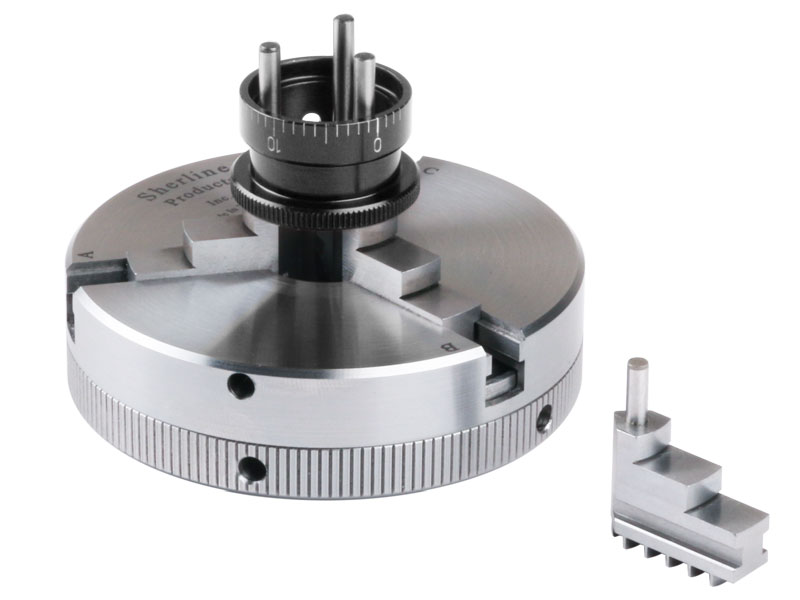

We designed our Pin Jaws specifically for laser engraving rings and other similar parts. These jaws are not designed for machining parts or other uses that require more than finger tight closing pressure to hold the part in the chuck. Round parts can be held from the inside with just finger-tight grip of the pins while the outside is laser marked. The jaws will work in any of our 3-Jaw Chucks.

We recently improved the design of the pin jaws. The hole that holds the pin now goes all the way through each jaw so you can easily knock out any broken pins.

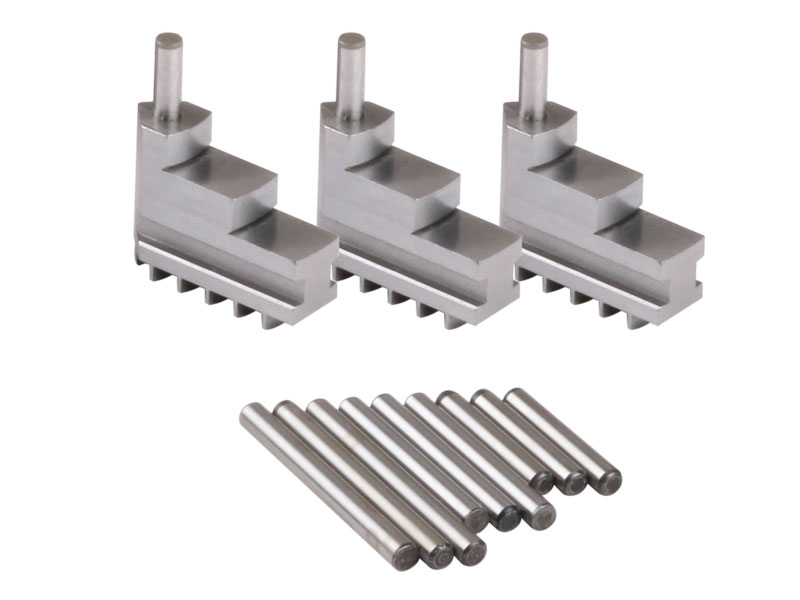

Each Pin-Jaw Set includes:

  • 3 hardened jaws
  • 3 sets of 3 each of the following lengths of 1/8″ hardened steel dowel pins:
    • 3/4″
    • 1″
    • 1-1/4″

These pins can be changed to give you a longer gripping area.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF 1140 Instructions

Instructions PDF Download

Laser Engraving with Sherline “Pin Jaws”

Part # Quantity Description
11414P 3 3-Jaw Chuck “Pin Jaws”
11417 3 1/8″ X 3/4″ Hard-Steel Dowel Pin
11524 3 1/8″ X 1″ Hard-Steel Dowel Pin
11416 3 1/8″ X 1-1/4″ Hard-Steel Dowel Pin
