Image shown is a representation only. Actual product may vary.

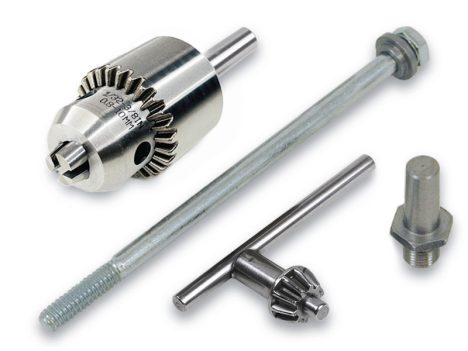

3/8″ Drill Chuck with Two Arbors
This chuck includes a #0 Morse arbor for use in the tailstock for center drilling and a #1 Morse arbor for use in the headstock. It will hold drills from 3/32″ (2.4 mm) to 3/8″ (9.5 mm) in diameter. Runout is .003″ or less. If runout of less than this amount is required, collets should be used to hold the drill rather than a chuck.
NOTE: Because of its longer length and ability to hold longer 3/8″ drills, this chuck is normally recommended for use on the longer 4400-series benchtop lathes.
-
| Chuck Capacity | 1/32″ – 3/8″ (0.8-10 mm) | |
|---|---|---|
| Arbor | #0 Morse for tailstock and #1 Morse for headstock | |
| Runout | .003″ or less | |
| Includes | chuck key, drawbolt+washer and 2 arbors |
