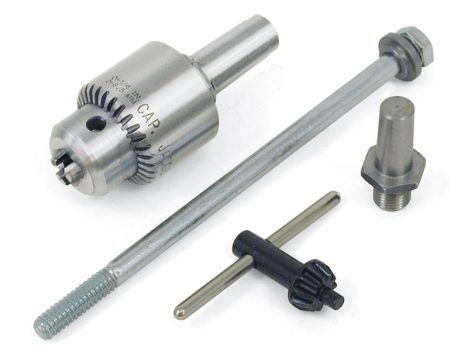

1/4″ Drill Chuck with 2 Arbors

-

SKU: 1072 Category:

Product Description

A drill chuck is probably the most important accessory you will need for your lathe. It will enable you to accurately centerline drill, ream, or tap any part mounted on the lathe. The part to be machined is chuck or collet mounted in the headstock. The tool is mounted in the tailstock chuck and fed into the part using the tailstock ram feed. Parts that are going to be mounted between centers can be center drilled this way. Other parts requiring a hole accurately drilled on-center can also be machined this way.

The Sherline tailstock chuck is a precision 3/32″ (2.4 mm) to 1/4″ (6.4 mm) 3-jaw chuck complete with key. The chuck is fitted with a #0 Morse arbor for use in the tailstock. Also included is a #1 Morse arbor and drawbolt so the chuck can be used in the lathe or mill headstock as well.

NOTE: If runout of less than .003″ amount is required, collets should be used to hold the drill rather than a chuck.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Instructions

Instructions 1072 PDF Download

Chuck Capacity 3/32″ (2.4 mm) – 1/4″ (6.4 mm)
Arbor #0 Morse for tailstock and #1 Morse for headstock
Runout .003″ or less
Includes chuck key, drawbolt+washer and 2 arbors (see above)

11860 Chuck key, 1/4″ drill chuck
11880 threaded arbor for #1 Morse taper
11890 threaded arbor for #0 Morse taper
11900 1/4″ drill chuck body
30880 1/4-20 x 5″ drawbolt with centering washer (for #1 Morse arbors)
