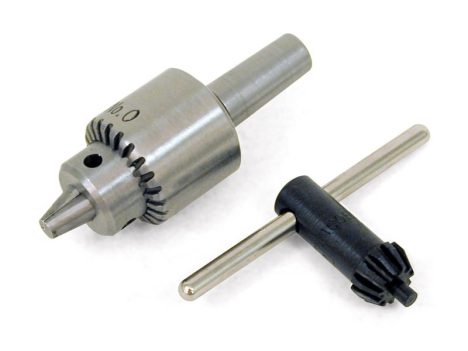

5/32″ Drill Chuck with #0 Morse Arbor

SKU: 1015 Category:

Product Description

These chucks are useful for holding very small drills and their shorter length provides an increase of about 1/2″ in working space between centers compared to the 1/4″ drill chuck. A #0 Morse arbor has been pressed into the Jacobs taper in the back of the chuck. It is used in the tailstock and does not require a drawbolt.

Runout as specified by manufacturer is .004″ or less but we try to maintain .003″ or less in our testing process. If runout of less than .003″ amount is required, collets should be used to hold the drill rather than a chuck.

NOTE: Because the arbor is pressed into the chuck, it is not interchangeable from chuck to chuck. A separate chuck must be purchased for #0 and #1 Morse use.



warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Instructions

Instructions PDF Download

P/N 1015
Chuck Capacity #80 (.0135″ or .34 mm) – 5/32″ (4 mm)
Arbor #0 Morse for tailstock
Runout .003″ or less
Includes chuck key

P/N 1010
10170 5/32″ chuck arbor, #0 Jacobs taper to #1 Morse taper
10180 chuck key, 5/32″ drill chuck
10190 drill chuck body
30880 1/4-20 x 5″ drawbolt with centering washer (for #1 Morse arbors)
P/N 1015
10160 5/32″ chuck arbor, #0 Jacobs to #0 Morse taper
10180 chuck key, 5/32″ drill chuck
10190 drill chuck body
