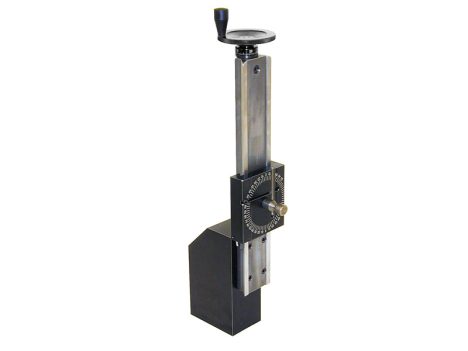

Image shown is a representation only. Actual product may vary.
Mill Column – Manual
NOTE: This column is for a mill, if you want to put this column on a lathe click here
-

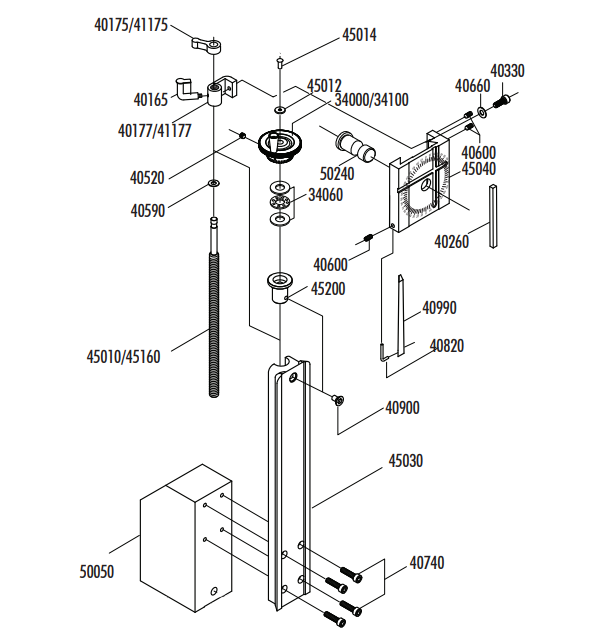

| Part No. | Description | Quantity |
|---|---|---|
| 3400 3410 |
2.5″ Z Axis Handwheel (Inch) 2.5″ Z Axis Handwheel (Metric) |
1 |
| 34060 | Thrust Bearing Set | 1 |
| 40175 41175 |
Saddle Locking Lever (Inch) Saddle Locking Lever (Metric) |
1 |
| 40177OL 41177OL |
Saddle Nut with Oiler (Inch) Saddle Nut with Oiler (Metric) |
1 |
| 40260 | Head Key | 1 |
| 40330 | 10-32 x 5/8″ SHCS | 1 |
| 40590 | 1/4″ Washer | 1 |
| 40600 | 10-32 x 1/4″ Flat Point Set Screw | 3 |
| 40660 | #10 Washer 3/16″ | 1 |
| 40740 | 10-32 x 7/8″ SHCS | 4 |
| 40820 | Gib Lock | 1 |
| 40900 | 10-32 x 3/8″ Flat Head Screw | 1 |
| 40990 | Saddle Gib | 1 |
| 45010 45160 |
Column Lead Screw (Inch) Column Lead Screw (Metric) |
1 |
| 45030 | Column Bed | 1 |
| 45040 | Column Saddle | 1 |
| 50050 | Mill Column Base | 1 |
| 50220 | 1/4-20 x 1-3/4″ SHCS | 2 |
| 50240 | Pivot Pin | 1 |
| 76140 | 5/64″ Hex Key | 1 |
