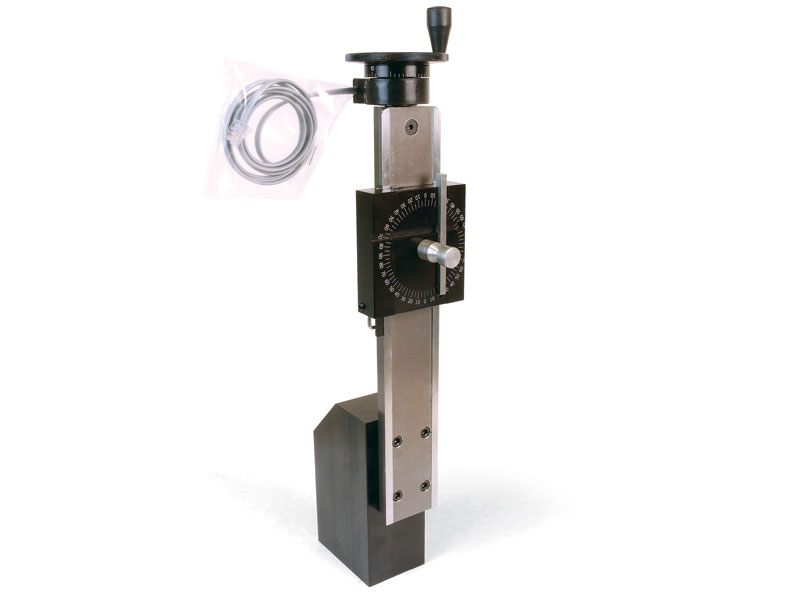

Mill Column – DRO

Clear selection
    Reset options
SKU: N/A Category:

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Assembly and Instruction Guide

Instructions PDF Download

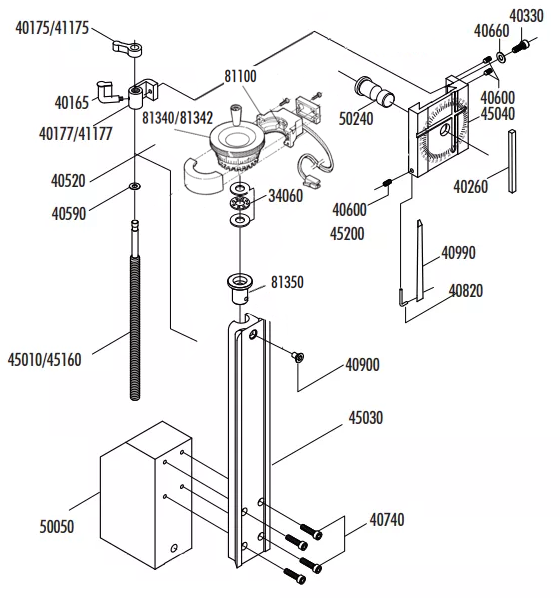

Part No. Description Quantity
34060 Thrust Bearing Set 1
40175
41175
Saddle Locking Lever (Inch)
Saddle Locking Lever (Metric)
1
40177OL
41177OL
Saddle Nut with Oiler (Inch)
Saddle Nut with Oiler (Metric)
1
40260 Head Key 1
40330 10-32 x 5/8″ SHCS 1
40590 1/4″ Washer 1
40600 10-32 x 1/4″ Flat Point Set Screw 3
40660 #10 Washer 3/16″ 1
40740 10-32 x 7/8″ SHCS 4
40820 Gib Lock 1
40900 10-32 x 3/8″ Flat Head Screw 1
40990 Saddle Gib 1
45010
45160
Column Lead Screw (Inch)
Column Lead Screw (Metric)
1
45030 Column Bed 1
45040 Column Saddle 1
50050 Mill Column Base 1
50220 1/4-20 x 1-3/4″ SHCS 2
50240 Pivot Pin 1
76140 5/64″ Hex Key 1
81100 Encoder Unit with Cable 1
81340
81342
2.5″ Z Axis DRO Handwheel (Inch)
2.5″ Z Axis DRO Handwheel (Metric)
1
81350 DRO Z Axis Thrust Collar 1
