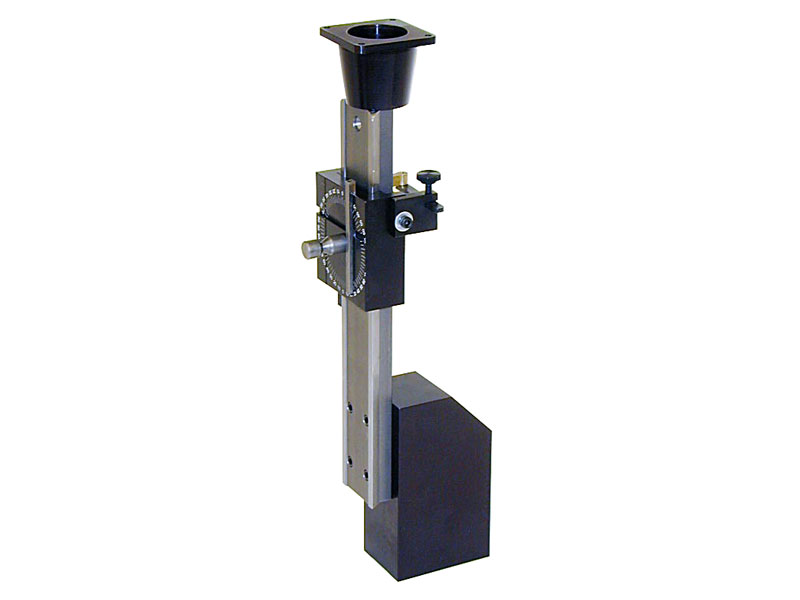

Deluxe Mill Column – CNC Ready

Clear selection
    Reset options
SKU: N/A Category: Tag:

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Assembly and Instruction Guide

Instructions PDF Download

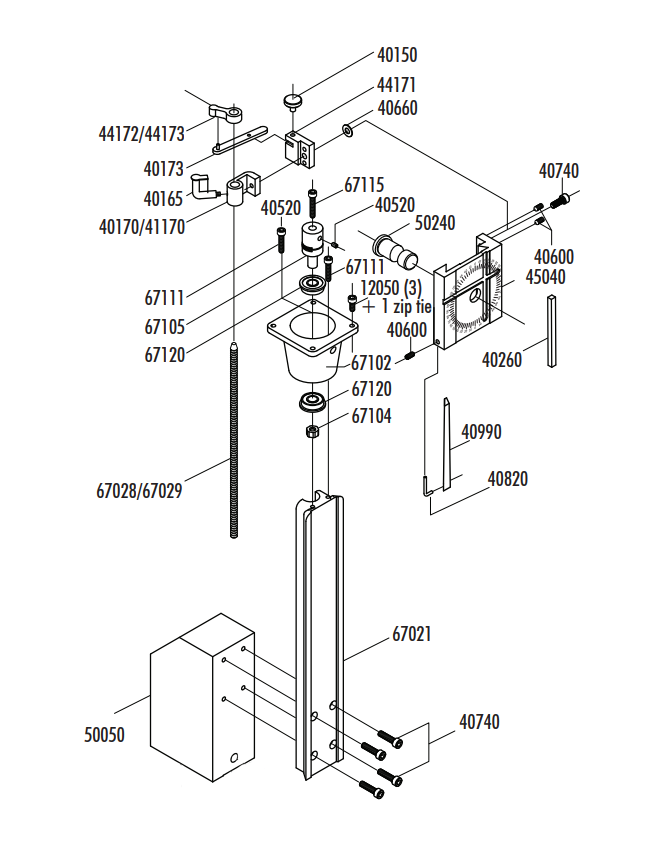

Part No. Description Quantity
12050 8-32 x 3/8″ SHCS 3
3455
3459
2.5″ Z Axis Zero Adjustable Handwheel (Inch)
2.5″ Z Axis Zero Adjustable Handwheel (Metric)
1
4017ZOL
4117ZOL
Z-Axis Backlash Adjustment Upgrade (Inch)
Z-Axis Backlash Adjustment Upgrade (Metric)
1
40260 Head Key 1
40600 10-32 x 1/4″ Flat Point Set Screw 1
40660 #10 Washer 3/16 1
40740 10-32 x 7/8″ SHCS 4
40820 Gib Lock 1
40990 Saddle Gib 1
45040 Column Saddle 1
50050 Mill Column Base 1
50220 1/4-20 x 1-3/4″ SHCS 2
50240 Pivot Pin 1
67021 CNC Mill Column Bed 1
67028
67029
Column Lead Screw (Inch)
Column Lead Screw (Metric)
1
67102 Stepper Motor Mount 1
67104 CNC Preload Nut – Right Hand 1
671052 CNC Coupling 1
67111 8-32 x 7/8″ SHCS 2
67115 5-40 x 7/8″ SHCS 1
67120 Stepper Motor Preload Bearing 2
76140 5/64″ Hex Key 1
