14″ Deluxe 8-direction CNC Mill Package A

Clear selection
    Reset options
SKU: N/A Category: Tag:

Product Description

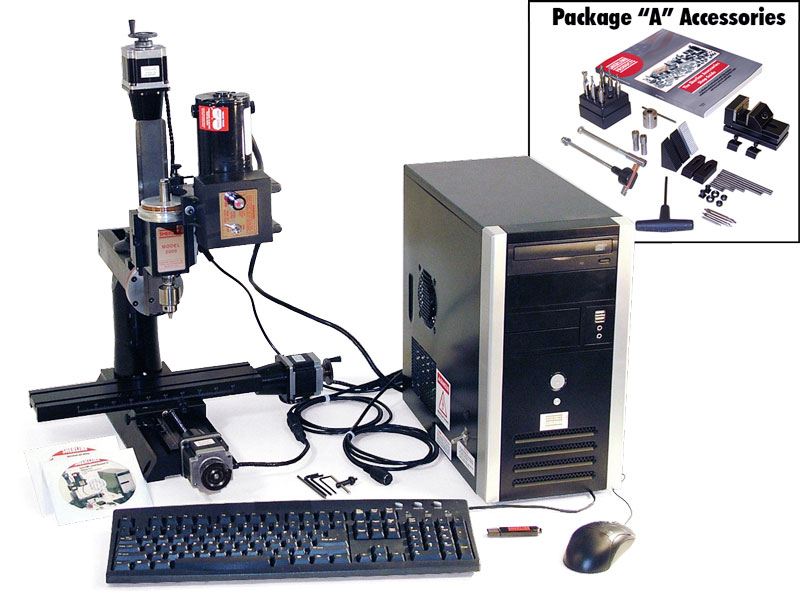

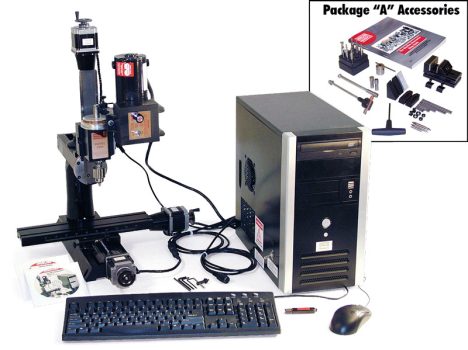

The CNC Package Includes:

  • 8-direction mill fitted with saddle oiler, stepper motor mounts and couplers on X-, Y- and Z-axes
  • A computer with Ubuntu Linux-based OS with linuxcnc 4-axis CNC software preinstalled
  • Keyboard and mouse
  • 4-axis driver board and power supply installed inside the computer
  • Computer cables to the X-, Y-, and Z-axes are 69″ in length
  • Instruction and utility CD. The CD includes complete instructions, and several free utilities to translate CAD files or TrueType fonts into G-code.
  • A blank 4GB USB flash drive
  • 1-year warranty on all components for non-production use. 90-day warranty on CNC and computer-related components.

You supply only a monitor.

A Package Accessories Include:

  • Step block hold-down set
  • 5/32″ Sherline hex T-driver
  • 3-piece center drill set
  • Fly cutter w/carbide bit
  • 3-piece mill collet set w/drawbolt
  • 6-piece 3/8″ 2-flute double-ended end mill set
    (4-flute set may be substituted depending on availability)
  • 3/8″ end mill holder
  • Milling vise
  • Sherline Accessories Shop Guide book

Standard equipment for the mill includes:

  • A powerful 90V DC motor with electronic speed controller
  • 14″ base
  • 2″ (51mm) adjustable “zero” handwheels are mounted on each of the stepper motors
  • 2.75″ (70 mm) x 13.0″ (330 mm) table with two T-slots
  • ¼” Drill Chuck w/ key, #1 Morse arbor with drawbolt
  • 2″ column riser block
  • Laser-engraved scales on the base and table
  • Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual

Sherline CNC Specification Links

NOTE: Depending upon availability, actual computer supplied with the system may look different than shown above.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Assembly and Instruction Guide

Instructions PDF Download

Download PDF Sherline Vertical Milling Machine CNC Instructions

Instructions PDF Download

Download PDF 14″ Mill Base Dimensions

Instructions PDF Download

Max clearance
(table to spindle)
9.00″ (229 mm)
Throat
(no spacer)
Adjustable
Throat
(w/ headstock spacer)
Not Required
Travel, “X” Axis 8.65″ (220 mm) (9″ (228 mm) w/stop screw removed)
Travel, “Y” Axis 7.00″ (178 mm)
Travel, “Z” Axis 5.38″ (137 mm)
Hole through spindle .405″ (10 mm)
Spindle nose thread 3/4″-16 T.P.I.
Spindle nose taper #1 Morse
Spindle runout of Morse taper .0005″ or less
Handwheel graduations .001″ (.01 mm)
Width Overall* 15.00″ (381 mm)
Depth Overall* Base footprint: 20.375″ (517.5 mm); With fully extended brass leadscrew cover: 24.375″ (619 mm)
Height Overall (Max.)* 23.38″ (568 mm)
Table size 2.75″ x 13.00″ (70 x 330 mm)
Hold-down provision 2 T-Slots
Shipping Weight 40 lb. (18.2 kg)
Movements in addition
to X-, Y- and Z-axes
Headstock rotation 90° left/right, column rotation (90° L/R), column pivot (front/back), column swing (90° L/R) and 5.5″ column travel (in/out)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.
Click here for motor specifications
Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control
CNC Stepper motor holding torque 136 oz-in
Maximum CNC travel positioning speed, X, Y and Z axes 22 inches/min**

*Overall dimensions include motor and speed control
**NOTE: To avoid missed steps, rapid travel speeds should be used for positioning only. Actual feed rates when cutting metal will usually be the range of 6 inches/min or slower.

Click on the link for the exploded view of the 8020/8021 CNC Deluxe Mill to help identify replacement parts.

If you are still uncertain please call our customer service representatives for help with this item.

We offer two types of 3D object files: .igs and .stp.

  1. To view .igs files you need an IGS viewer. CLICK HERE to download a FREE IGS viewer.
  2. To view .stp files you need a STP viewer. CLICK HERE to use Autodesk’s FREE A360* online file viewer. STP is a file extension for a 3-D graphic file used by CAD software. STP stands for STandard for the Exchange of Product model data. STP files are used to store 3D image data in an ASCII format, following the standards defined in ISO 10303-21: Clear Text Encoding of the Exchange Structure.
  3. Each 3D file format has been compressed into a .zip file to save file space. Click on the .zip file link below to download it to your computer.
  4. Extract the .zip file to the drive location of your choice.
  5. Open the .igs file using the IGS Viewer, or open the .stp file using the A360 Autodesk online viewer.

*NOTE: There are also other free STP viewers that can be downloaded directly to your computer.

CLICK HERE to download the 3D IGS file
No STP file available

5000 (5100) Mill 5400 (5410) Mill 5800 NexGen Mill
5000 (5100) 5400 (5410) 2000 (2010) 5800 (5810)
Max. clearance
(table to spindle)
8.00″ (203 mm) 8.00″ (203 mm) 9.00″ (229 mm) 14.00″ (356 mm)
Throat (no spacer) 2.25″ (50 mm) 2.25″ (50 mm) Adjustable Adjustable
Throat (w/ headstock spacer) Optional 3.50″ (90 mm) Adjustable Adjustable
Travel: X-axis (with stop) 8.65″ (220 mm) 8.65″ (220 mm) 8.65″ (220 mm) 13.65″ (347 mm)
Travel: Y-axis 3.00″ (76 mm) 5.00″ (127 mm) 7.00″ (178 mm) 11.00″ (279 mm)
Travel: Z-axis 6.25″ (159 mm) 6.25″ (159 mm) 5.38″ (137 mm) 9.38″ (238 mm)
Hole through spindle .405″ (10 mm) .405″ (10 mm) .405″ (10 mm) .405″ (10 mm)
Spindle nose thread 3/4-16 T.P.I. 3/4-16 T.P.I. 3/4-16 T.P.I. 3/4-16 T.P.I.
Spindle nose taper #1 Morse #1 Morse #1 Morse #1 Morse
Spindle runout of Morse taper .0005″ or less .0005″ or less .0005″ or less .0005″ or less
Handwheel graduations .001″ (.01 mm) .001″ (.01 mm) .001″ (.01 mm) .001″ (.01 mm)
Handwheel Type Standard Handwheels Zero Adjustable Handwheels Zero Adjustable Handwheels Zero Adjustable Handwheels
Electronically controlled
spindle speed range
70 to 2800 RPM 70 to 2800 RPM 70 to 2800 RPM 70 to 2800 RPM
Width overall 14.75″ (375 mm 15.00″ (381 mm) 15.00″ (381 mm) 20.00 (508 mm)
Depth overall 11.75″ (298 mm) 14.00″ (356 mm) 22.25″ (565 mm) 23.13″ (588 mm)
Height overall (Max.) 20.75″ (527 mm) 20.75″ (527 mm) 23.38″ (568 mm) 24.50″ (622 mm)
Table size 2.75″ x 13.00″
(70 mm x 330 mm)
2.75″ x 13.00″
(70 mm x 330 mm)
2.75″ x 13.00″
(70 mm x 330 mm)
2.75″ x 18.00″
(70 x 457 mm)
Hold-down provision 2 T-slots 2 T-slots 2 T-slots 3 T-slots
Shipping weight 33 lb (15.0 kg) 36 lb (16.3 kg) 38 lb (17.2 kg) 50 lb. (22.7 kg)
Movements in addition
to X-, Y- and Z-axes
Headstock rotation
(90° L/R)
Headstock rotation
(90° L/R)
Headstock rotation
(90° L/R)
Headstock rotation
(90° L/R)
Column rotation N/A N/A (90° L/R) N/A
Column pivot N/A N/A (90° Fwd/Bk) (90° Fwd/Bk)
Column swing N/A N/A (90°L/R) (90°L/R)
Column travel N/A N/A (In/Out) 5.5″ (140 mm) (In/Out) 5.5″ (140 mm)
Motor Specs
Input voltage 100 to 240 VAC, 50 or 60 Hz
Output to motor 90 VDC
Current draw .5 to 15 amps depending on load
No-load output shaft speed 6000 RPM (no pulley)
Click here for more detailed specs
Spindle Specs
Spindle End play (factory
adjustment of preload)
.0002″ (.005 mm) or less, normal pulleys
Runout at nose .0005″ (0.013 mm) or less
Bearings Two 20 mm lifetime lubricated ball bearings with adjustable preload
