Product Description

Ultimate Machine Shop DRO Package with NexGen Mill

If you want to set up a complete miniature machine shop with just one purchase, the “Ultimate Machine Shop” package makes it easy for you. We have combined our Model 4400-DRO/4410-DRO Deluxe 3.5 x 17″ lathe and 5800-DRO/5810-DRO NexGen vertical milling machine with a host of the most popular machining accessories. Included are all the items you need to set up for most machining jobs including cutting tools and holding fixtures.

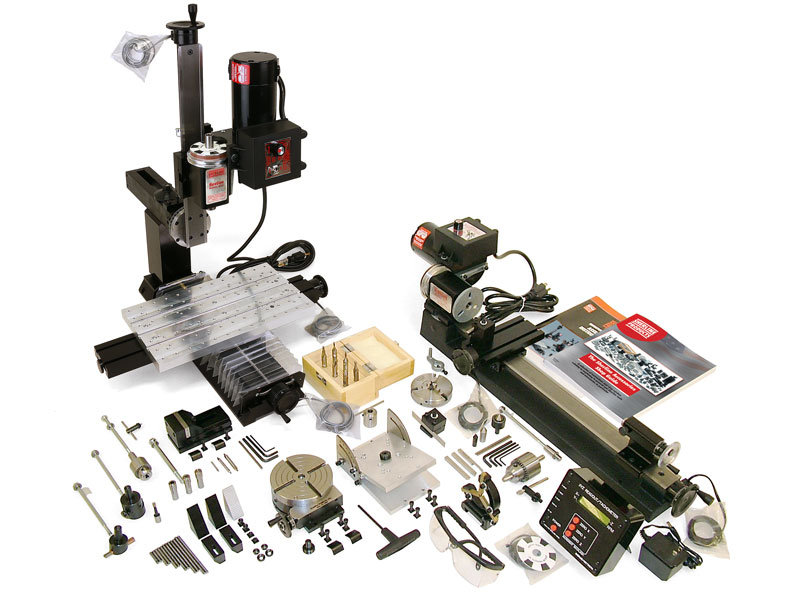

See the individual pages in the “LATHES” and “MILLS” sections for more details on the machines themselves and what comes with them. The package includes everything shown in the photo above.

NOTE: In August 2021, the DRO operation was modified so that it can do metric or inch conversions – providing readings in the units required with any leadscrew installed. DROs shipping after August 2021 include this feature and older units can be upgraded at a nominal charge (P/N 81705).

In addition to the lathe and mill, you get the following accessories:
LATHE

  • 3.1″ 3-jaw Self-centering Chuck
  • 3/8″ Drill Chuck w/ Arbors, Key and Drawbolt
  • Steady Rest
  • Live Center
  • Rear Mount Cutoff Tool and Holder
  • 3-pc. 1/4″ HSS Tool Set (LH, RH, Boring)

MILL

  • Headstock Spacer Block
  • 3 pc. Center Drill Set
  • Fly Cutter w/ 1/4″ Carbide Cutting Tool
  • Boring Head
  • Boring Tool (5/16″ min. hole, 1″ max. depth)
  • 3-pc. Mill Collet Set w/ Drawbolt
  • 1/4″ Drill Chuck w/ #1 Morse Arbor, Key and Drawbolt
  • 3/8″ End Mill Holder
  • 6-pc. 3/8″ Shank End Mill Set
  • Milling Vise
  • Step Block Hold-down Set
  • 4″ Rotary Table
  • Tilting Angle Table

MISCELLANEOUS

  • 5/32″ Sherline Hex T-Driver
  • Sherline Accessories Shop Guide book
  • Safety Glasses

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download Assembly and Instruction Guide

Instructions PDF Download

Download Mill DRO Instruction Guide

Instructions PDF Download

Download Lathe DRO Instruction Guide

Instructions PDF Download

Download PDF DRO Mode Instructions

Instructions PDF Download

Max clearance
(table to spindle)
14.00″ (356 mm)
Throat
(no spacer)
Adjustable
Throat
(w/ headstock spacer)
Adjustable
Travel, “X” Axis 13.65″ (347 mm)
Travel, “Y” Axis 11 ″ (279 mm); 8.9″ (226 mm) with tooling plate attached
Travel, “Z” Axis 5.38″ (137 mm)
Hole through spindle .405″ (10 mm)
Spindle nose thread 3/4″-16 T.P.I.
Spindle nose taper #1 Morse
Handwheel graduations .001″ (.01 mm)
Electronically controlled spindle speed range 70 to 2800 RPM
Width Overall 20.00 (508 mm)
Depth Overall Base footprint: 20.75″ (527 mm); With fully extended brass leadscrew cover: 28″ (711 mm)
Height Overall (Max.) 24.50″ (622 mm)
Table size 2.75″ x 18.00″ (70 x 457 mm)
Hold-down provision 3 T-Slots
Shipping Weight 50 lb. (22.7 kg)
Movements in addition to X-, Y- and Z-axes Headstock rotation 90° left/right
Column pivot 90° forward/back
Column swing 90° left/right
Column travel (in/out) 5.5″ (140 mm)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz. Click here for motor specifications
Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control

*Overall dimensions include motor and speed control

Swing Over Bed 3.50″ (90 mm)
Swing Over Carriage 1.75″ (45 mm)
Distance Between Centers 17.00″ (430 mm)
Hole Through Spindle .405″ (10 mm)
Spindle Nose Thread 3/4″-16 T.P.I.
Spindle Nose Taper #1 Morse
Spindle Runout of Morse Taper .0005″ or less
Travel of Crosslide 4.25″ (110 mm)
Tailstock Spindle Taper #0 Morse
Protractor Graduations 0° to 45° by 5°
Handwheel Graduations .001″ (.01 mm)
Length Overall 32.5″ (826 mm)
Width Overall 8.00″ (267 mm)
Height Overall 8.00″ (216 mm)
Shipping Weight 31 lb. (14.1 kg)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.

Click here for motor specifications

Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control

Click on the link for the exploded view of the 4400-Series Manual Lathe to help identify replacement parts.

Click on the link for the exploded view of the 5800/5810 Mill to help identify replacement parts.

If you are still uncertain please call our customer service representatives for help with this item.

If you are working with brass or wood, we suggest you use the toggle switch dust cover to protect the life of your motor & speed control.
