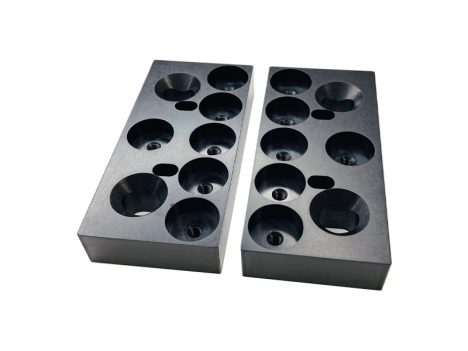

MB Vise Versagrip Top Jaws
The MB Versagrip Top Jaws are used for holding round or oddly shaped stock. These top jaws use the MB Versagrip Vise Jaw Inserts (P/N 35529) made by Mitee-Bite*. You can place the jaw inserts into any insert pockets in the MB Versagrip top jaws to accommodate differently shaped parts.
*NOTE: The MB Versagrip Vise Jaw Inserts are sold separately.
What’s Included:
- Two Versagrip top jaws
- Four 82° screws
Related products
-
Talon Grip Vise Jaw Inserts by Mitee-Bite
-
Reversible Jaw Inserts (smooth) by Saunders
-
Fixed base plate
-
Movable base plate
-
Adjustable stop
-
3 hex keys (7/32", 5/32", 3/32")
-
Mounting screws and T-nuts
-
Reversible Jaw Inserts:
Both sides are smooth for holding finished parts with minimal marking. Easily reversible in the top jaw (includes 2 inserts and 8 screws). -
Talon Grip Vise Jaw Inserts:
Double-sided serrated inserts for aggressive holding of raw stock. The serrated edge enhances grip strength (includes 2 inserts and 2 screws). -
MB Versagrip Vise Jaws & Inserts:
Serrated on both sides for secure gripping of raw or irregular material. Compatible only with the Versagrip jaws (includes 4 inserts and 4 screws). -
MB Hard Stop:
Designed to fit in the fixed jaw insert slot and used alongside the Talon Grip Inserts for repeatable part positioning. -
Jaw inserts are sold separately. The Standard MB Vise Fixture Base Plates are required to mount any jaw inserts.
-
Although the serrated inserts are intended for raw stock, they may be used on finished surfaces if light clamping pressure is applied and only light machining or engraving is performed.
- Four Versagrip jaw inserts
- Four socket head cap screws (not shown)
Sherline MB Vise Fixture
The Sherline MB Vise Fixture is designed to locate directly in the T-slots of our mill tables and tooling plates. By aligning the fixed and movable jaws in the T-slots, your mill table or tooling plate becomes the base for the fixture - maximizing usable table length. This setup allows you to securely hold and machine much larger or irregularly shaped parts than traditional vises can accommodate.
Workholding Versatility
The MB Vise Fixture supports a wide range of part shapes through the use of two different sets of interchangeable top jaws:
For square and rectangular stock use the standard top jaws with either:
For round or irregularly shaped material:
Use the MB Versagrip Top Jaws, which fit the same fixed and movable base plates. These jaws accept the MB Versagrip Vise Jaw Inserts by Mitee-Bite. The ¾" round inserts can be rotated within any insert pocket to match and grip a wide variety of part geometries securely.
Standard MB Vise Fixture Includes:
Insert Options:
Notes:

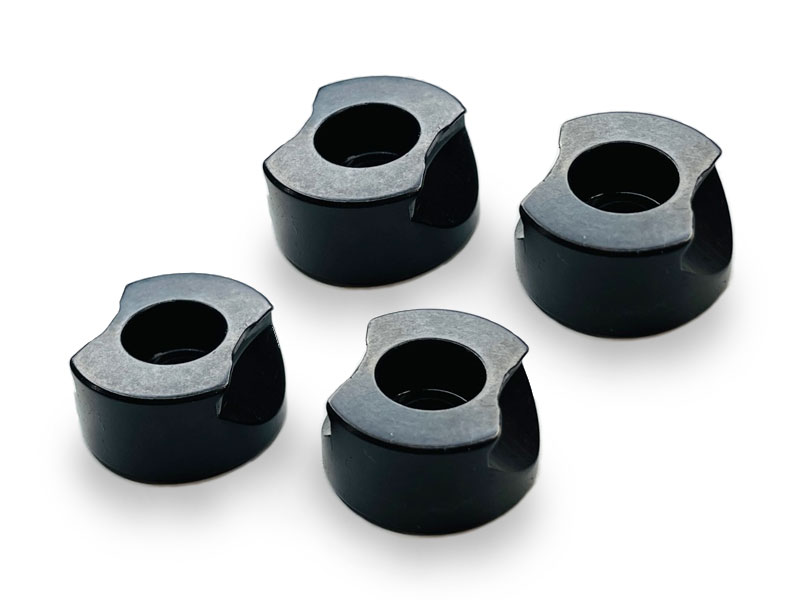

MB Vise Versagrip Jaw Inserts
These inserts have two serrated sides and bite into the part surface for holding raw material. They are only compatible with the Versagrip top jaws (P/N 35535).
What's included in each set:
