Sherline MB Vise Fixture

Select your Jaw & Insert options below

Clear selection
    Reset options
    • 15 $
SKU: N/A Category:

Product Description

About the Sherline MB Vise Fixture

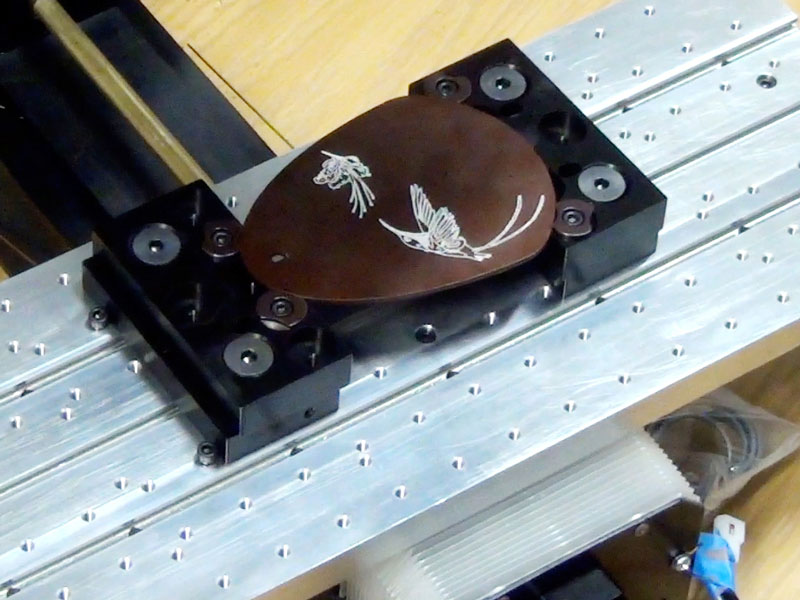

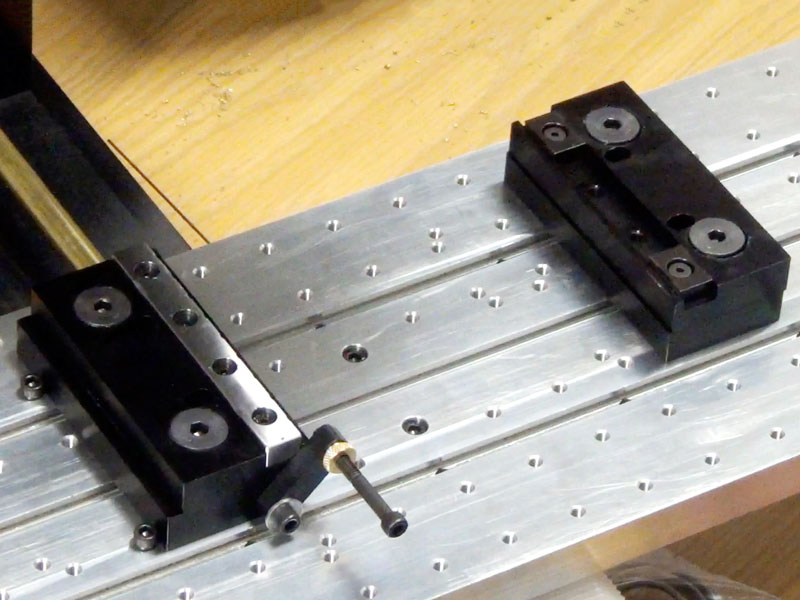

Our Sherline MB vise fixture is designed to locate on the T-slots in our mill table and our tooling plates. By using the T-slots to locate the fixed and movable jaw, your mill table or tooling plate becomes the base for the vise fixture. This allows the entire table length of your mill to be used. You can now hold and machine parts that are much larger and have various different shapes and sizes.

Holding Stock in the Vise Fixture

Our vise fixture allows you to hold virtually any stock or part shape by offering two different sets of top jaws.

  • Holding square and rectangular stock
    You can use the standard top jaws with either the Talon Grip Vise Jaw Inserts (P/N 35526) made by Mitee-Bite or the Reversible Jaw Inserts (smooth/serrated, P/N 35524) made by Saunders.
  • Holding round material and differently shaped stock

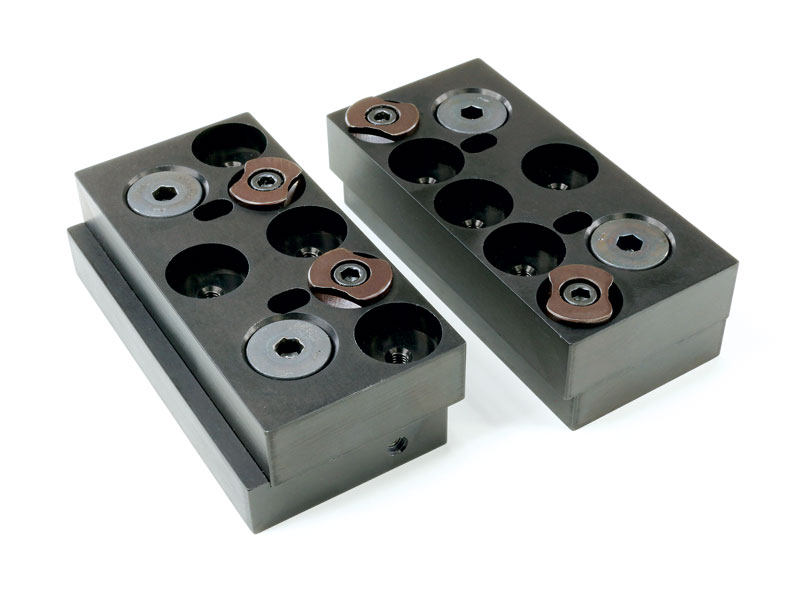

    The MB Versagrip Top Jaws (P/N 35535), used with the same fixed and movable base plates. These top jaws use the MB Versagrip Vise Jaw Inserts (P/N 35529) made by Mitee-Bite. You can place these jaw inserts into any insert pockets in the MB Versagrip top jaws (P/N 35535) to accommodate round material and differently shaped parts. These jaw inserts are 3/4″ round and can be rotated to match the part shape you wish to hold.
Standard MB Vise Fixture Features

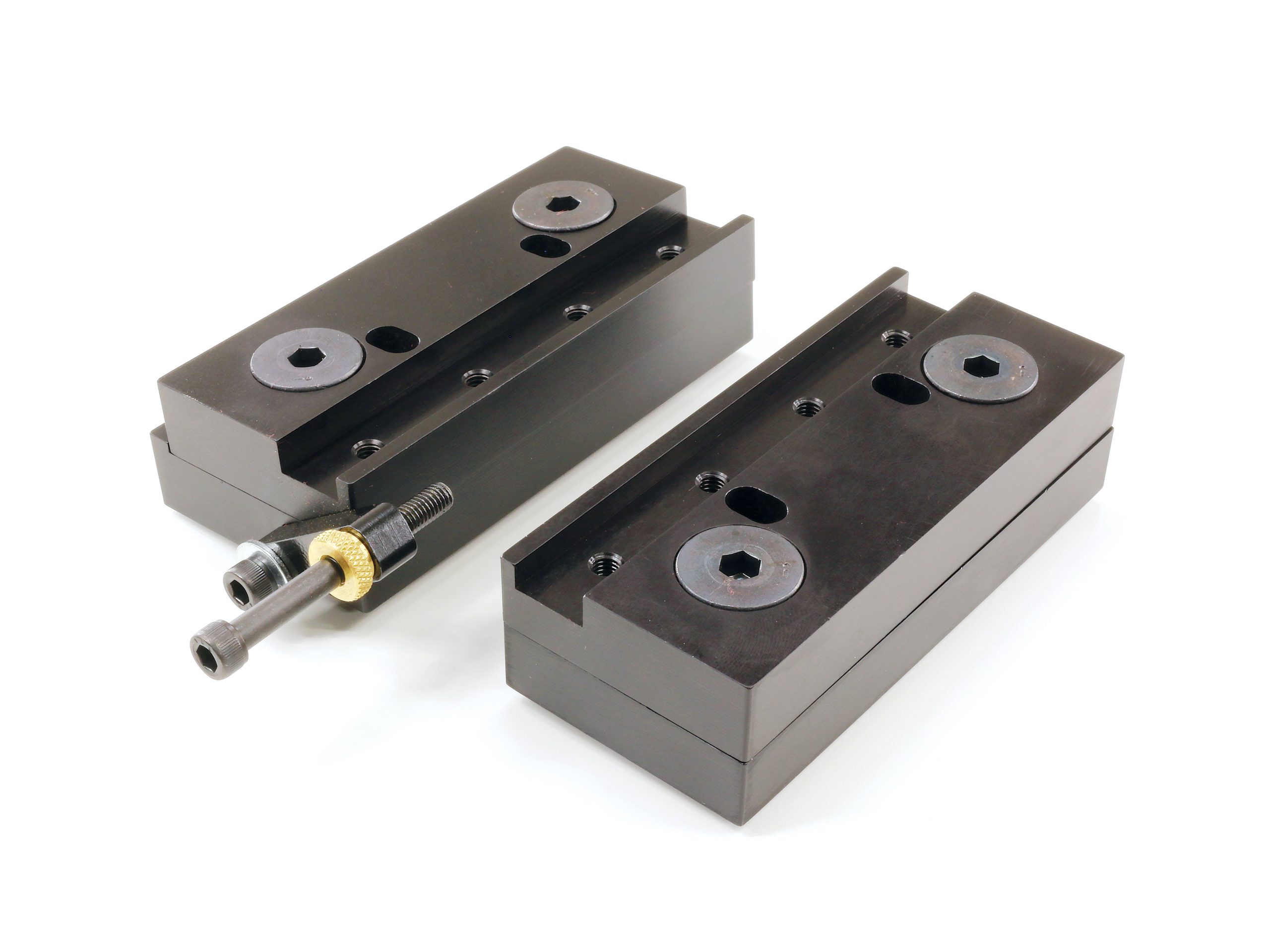

  • Fixed base plate
  • Movable base plate
  • Adjustable stop
  • 3 Hex keys (7/32″, 5/32″, and 3/32″)
  • Mounting screws and T-nuts

Select Your Insert Options*

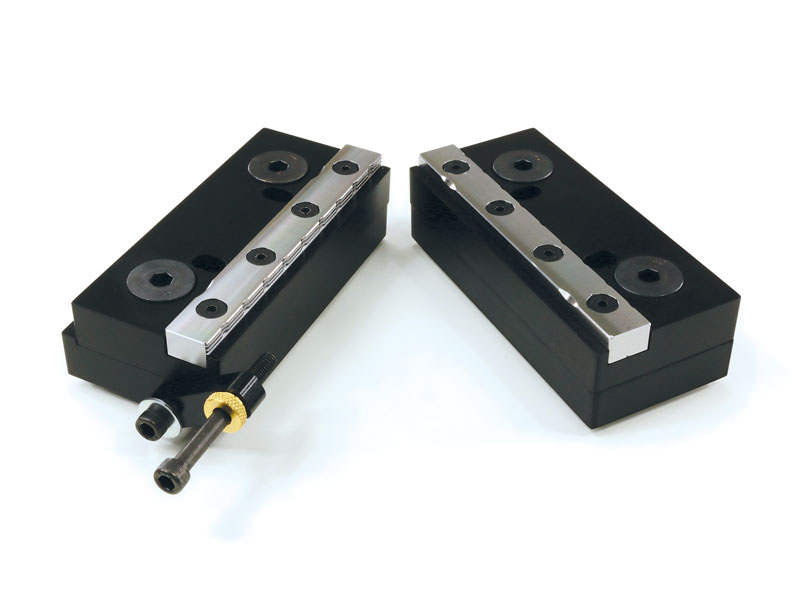

  • P/N 35524–Reversible Jaw Inserts: These inserts have a serrated side and a smooth side. The serrated side is used for raw stock, just as P/N 35526 noted above. The smooth side is used to hold parts by their finished surface, leaving virtually no marks. The inserts can easily be turned from the serrated side to the smooth side in the top jaw (comes as 1 insert w/4 screws).

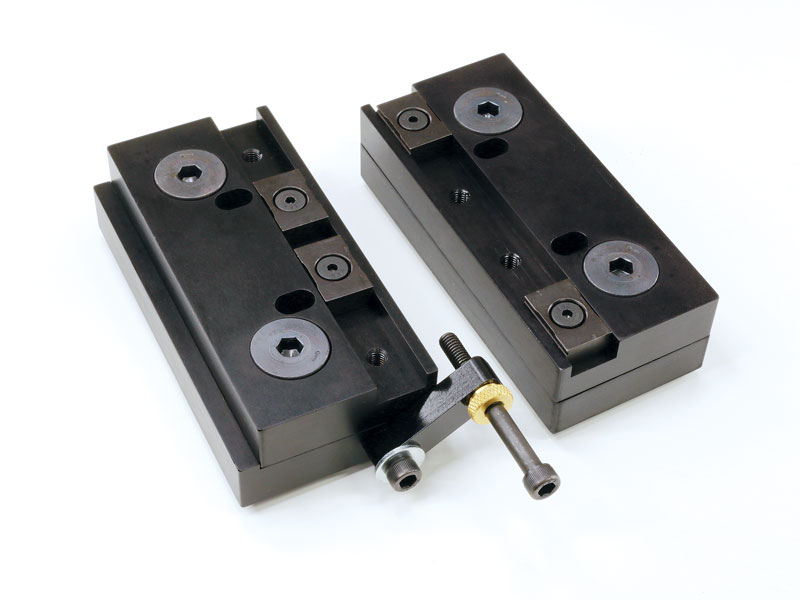

  • P/N 35526–Talon Grip Vise Jaw Inserts: These inserts are serrated on both sides and designed to hold raw stock**. The serrated edge is part of the insert’s gripping design and strength (comes as 2 inserts w/2 screws).
  • P/N 35535 & 35529–MB Versagrip Vise Jaws & Inserts: These inserts also have two serrated sides, which hold onto raw material. These will also bite into the part surface (comes as 2 inserts w/2 screws). They are only compatible with the Versagrip top jaws.
  • P/N 35528–MB Hard Stop: The hard stop is designed to fit in the same insert slot on the fixed jaw and it is used in conjunction with the Talon Grip Jaw Inserts (P/N 35526).

*NOTE: You can order the jaw insert options separately, but you must have the Standard Fixture Base Plates to hold the jaws.

**NOTE: You can use the serrated side of these inserts to hold finished parts without damaging the part surface if you use light clamping pressure and only if you are taking very light cuts or engraving.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF 3552 Instructions

Instructions PDF Download

Using the Sherline MB Vise Fixture video-Part 1

Using the Sherline MB Vise Fixture video-Part 2

Sherline MB Vise Engraving Demo

Part No. Description Quantity
3552
MB Vise Fixture
35520 Movable-Jaw Bottom Plate 1
35521 Fixed-Jaw Bottom Plate 1
35522 Top Jaw 2
35523 82° Clamp Screw (3/8-24 x 1″ Flat Head Screw) 4
35532 Stop Arm 1
30561 T-Nut (2 extra) 6
40510 10-32 x 3/8″ SHCS (for T-nuts) 4
40690 10-32 x 3/4″ SHCS 1
40660 #10 washer 1
22680 QC Knurled Lock Nut 1
40700 10-32 x 1-3/4″ SHCS 1
40575 7/32″ Hex key 1
40550 5/32″ Hex key 1
40570 3/32″ Hex key 1
35524
MB Vise Reversible Jaws
35524 Reversible Jaw Insert (Smooth/Serrated), each insert includes 4 screws 2
35525 10-32 x 3/8″ SHCS with a low profile head 4
35526
MB Talon Grip Vise Jaws
35526 Talon Grip Vise Jaws, comes as 2 inserts with 2 screws 4
35527 Talon Grip Replacement Screws (1 for Optional MB hard stop) 5
35528 MB Hard Stop (*OPTIONAL) 1
35529
MB Versagrip Vise Jaws
35523 82° Clamp Screw (3/8-24 x 1″ Flat Head Screw) 4
35529 MB Versagrip Vise Jaw 3/4″, comes as 2 inserts with 2 screws 4
35535 MB Versagrip Top Jaw 2
40670 10-32 x 1/2″ SHCS 4
