Image shown is a representation only. Actual product may vary.

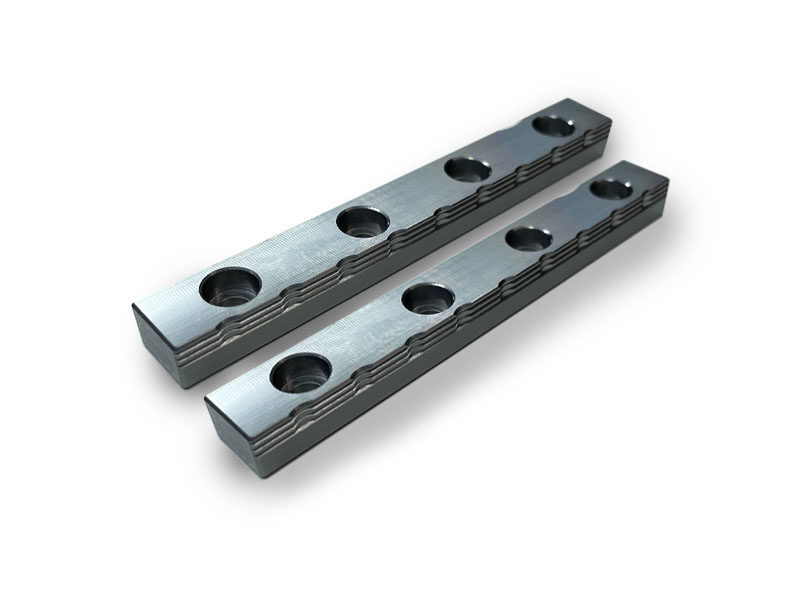

MB Vise Smooth Jaw Inserts (Set of 2)

Our supplier has made a design change to these jaw inserts. They are no longer produced with a serrated side; the new version is smooth on both sides.

In addition, the overall length has been changed from 4.00″ to 3.76″. The mounting hole size and location remain unchanged, so the inserts will still fit and function with our top jaws. However, because of the shorter length, the ends of the inserts will sit approximately 0.120″ inside the edge of the top jaw on each side.

-

SKU: 35524 Category:
