55° RH and LH Carbide Tool Holders


Clear selection
    Reset options
SKU: N/A Category:

Product Description

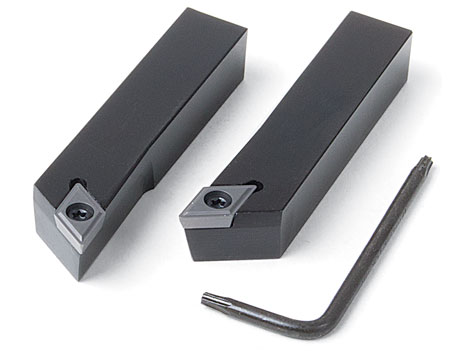

Sherline now manufactures its own inserted tip carbide tool holders. They are available with 55° inserts individually as a right-hand holder or a left-hand holder, or a pair. Each comes with a  55° carbide insert, hold-down screw and special Torx key. The 3/8″ square shank is held in a 3/8″ tool post. The 5° offset angle of the tip makes it easier to accomplish certain cuts. For example, by using the tool holder square with the crosslide, you can turn an O.D. up to a shoulder and then finish the shoulder by backing the tool out while still maintaining the proper tool clearance. The tip of the cutting tool is .375″ from the bottom of the holder, which is the industry standard. The holders are made from case hardened steel with a black oxide finish.

Though relatively expensive, if a cutting edge becomes dull or chipped, the insert can be removed and rotated 180° to expose two new cutting surfaces, providing, in effect, two tools for the price of one.

The primary method of cutting metal on miniature machine tools is usually with high-speed steel tools as they are inexpensive, easily resharpened and can be ground into “form” tools for special jobs. However, inserted tip carbide tools can be lifesavers for some jobs. Though more expensive and not able to be resharpened, carbide tools hold their cutting edge when cutting exotic metals or abrasive materials and can speed up the cutting process. This is why they are used for most cutting tasks in the modern professional machine shop.

NOTE:  A tool is named by the direction from which the chip leaves the tool; so a right-hand tool has its cutting edge on the left and the chip peels off to the right.

The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.


Always wear safety glasses when operating machine tools.

Download PDF Carbide Tip Tools Instructions

Instructions PDF Download

Insert Holder Material Case Hardened Steel
Body Coating Black Oxide
Insert Material Carbide

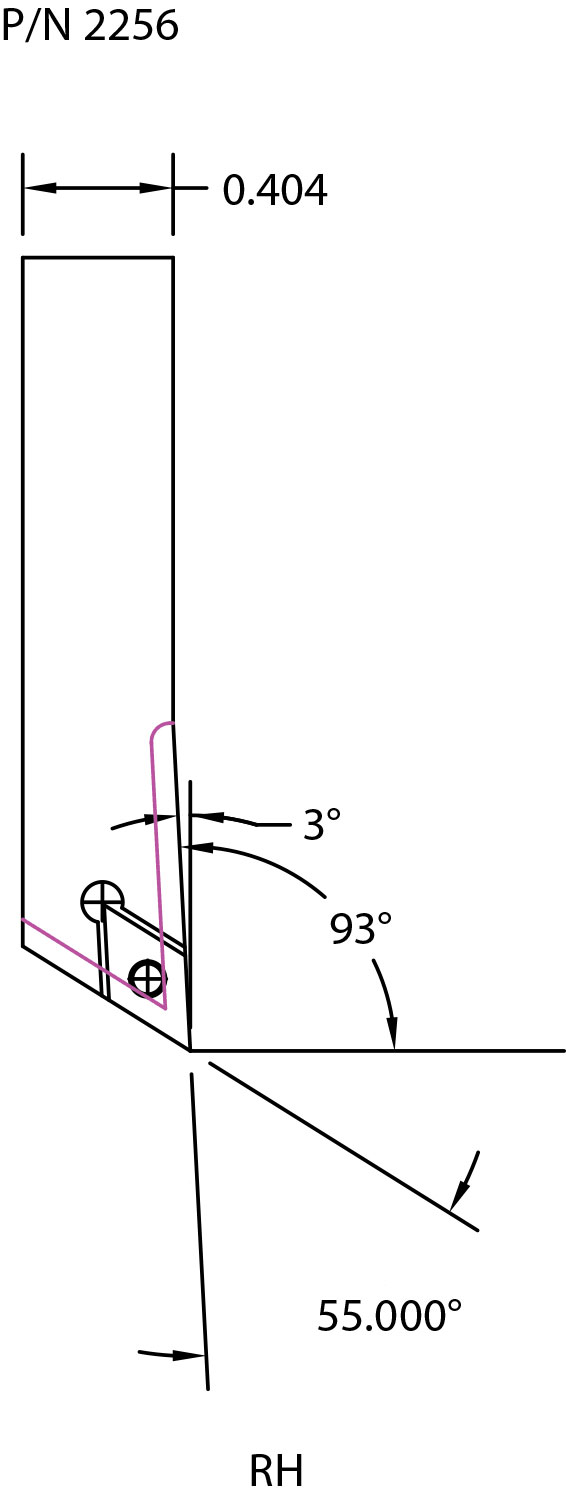

Cutting and insert angle for P/N 2256

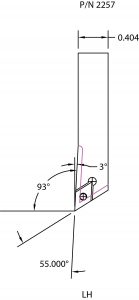

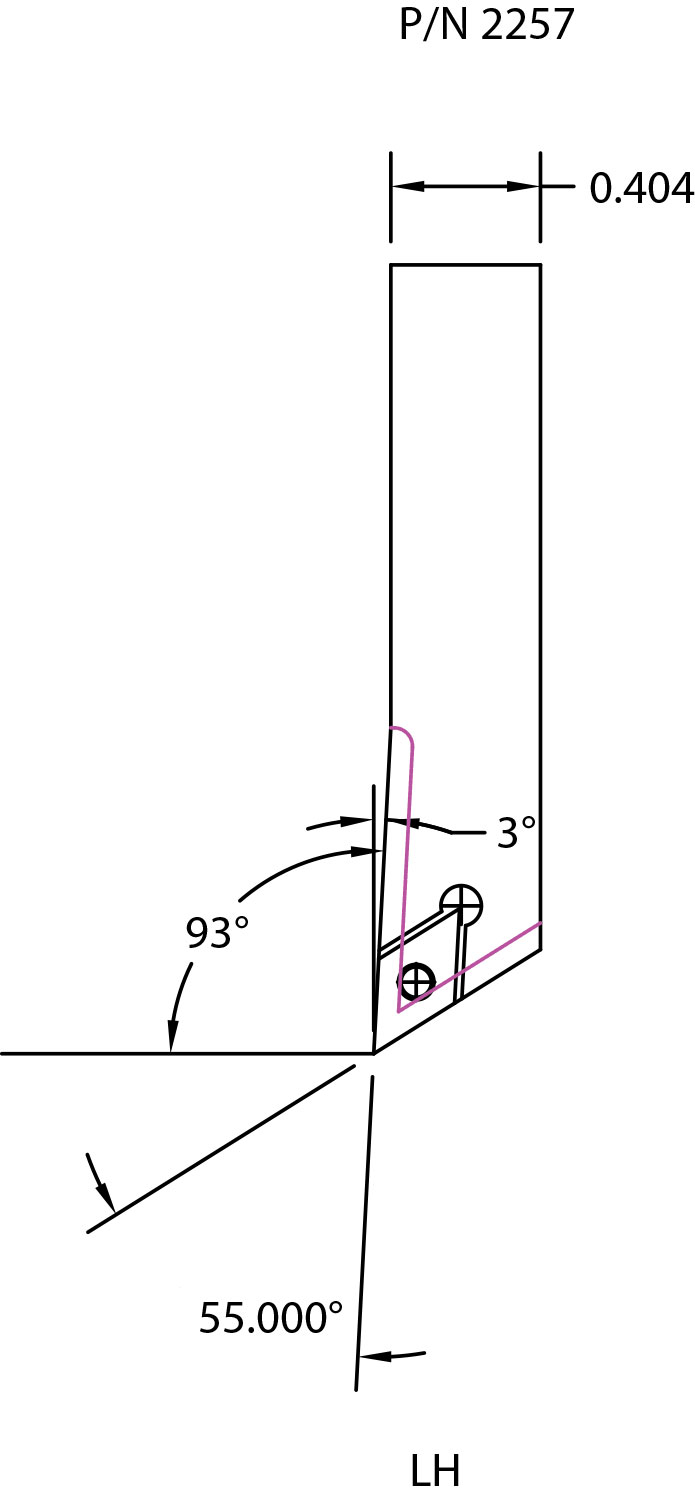

Cutting and insert angle for P/N 2257
Part No. Description Quantity
22561 55° right-hand insert tool holder body 1
22571 55° left-hand insert tool holder body 1
22580 T7 Torx driver 1
7605 55° carbide insert 1
76232 Torx screw 1
