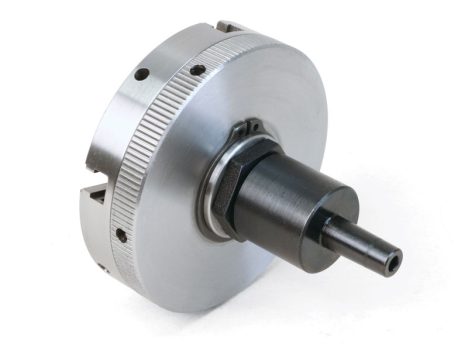

This tailstock live center has a 3/4-16 adapter to hold a 3-jaw or 4-jaw chuck. This live center is used in industrial winding operations, and has a runout of .003″.
Chuck not included
-
This tailstock live center has a 3/4-16 adapter to hold a 3-jaw or 4-jaw chuck. This live center is used in industrial winding operations, and has a runout of .003″.
Part No. | Description | Quantity |
---|---|---|
10930 | 3/8″ bearings | 2 |
11824 | Shim washer | 1 |
11905 | 3/4-16″ Chuck adapter for live tailstock body | 1 |
11915 | Chuck adapter live tailstock body | 1 |
Sherline 3-jaw chucks are designed with synchronized jaws that move together to automatically center round or hex stock to within a few thousandths of an inch. They offer the fastest and most convenient way to hold work in a lathe, making them one of Sherline’s most popular accessories.
These chucks can grip externally on bar stock or internally on tubing. The jaws are reversible to handle a wider range of part sizes.
Compatibility with Sherline and Other Lathes
Chucks are available with different spindle threads for use on Sherline lathes (3/4-16) and other machines such as older Unimat models (12mm x 1mm or 14mm x 1mm) or Sears 6" lathes (1/2-20).
Note: Thread sizes other than 3/4″ x 16 are custom made and require 5–7 business days.
Jaw Options
If you prefer jaws with a looser fit for faster operation (where maximum accuracy isn’t critical), add a note requesting “loose jaws” below.
Soft steel jaws (unhardened and unmachined) are also available when building your own chuck.
