The Sherline lathe comes equipped with two dead centers that fit the headstock and tailstock. These centers are used for holding parts that are mounted “between centers.” This system of mounting work in a lathe has been in use for many years. However, since the tailstock center is held stationary and does not turn with the part, it is a point of friction and requires frequent oiling and attention. Also, because of thermal expansion caused by friction generated heat, the pressure of the tailstock center must be checked frequently. This is especially important for parts made from thermal plastic materials which have a tendency to soften and even melt as a result of the heat.

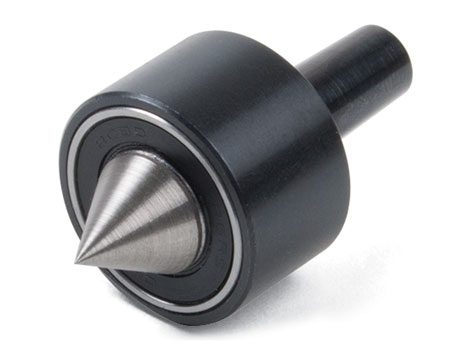

The Sherline live center is designed to eliminate these problems. The center is ball bearing mounted so that it can rotate with the part. This reduces wear and heat and makes machining much more pleasant. The sealed bearings are permanently lubricated and require no maintenance.
Download PDF 1191 Instructions
|Live Center Body Material||12L14 Steel|
|Body Coating||Black Oxide||Live Center Point Material||Case Hardened and Finish Ground 12L14 Steel|
|10910||Live Center Body||1|
|10920||Live Center Point||1|
Click the P/Ns below to download a zipped version of the IGS 3D CAD files. You will need to extract the zip file before viewing the IGS file.
1191 Live Center 3D IGS Model (Chuck not included)
You need an IGS viewer to view .igs files. CLICK HERE to download a FREE IGS viewer.
