8-Direction Ultimate DRO Machine Shop

Clear selection
  • Optional Chuck Upgrade
    Upgrade the 3.1" chuck that comes with the package to a different chuck
    Reset options
SKU: N/A Category:

Product Description

If you want to set up a complete miniature machine shop with just one purchase, the “Ultimate Machine Shop” package makes it easy for you. We have combined our Model 4400-DRO/4410-DRO deluxe 3.5 x 17″ lathe and 2000-DRO/2010-DRO 8-Direction vertical milling machine with a host of the most popular machining accessories. Included are all the items you need to set up for most machining jobs including cutting tools and holding fixtures.

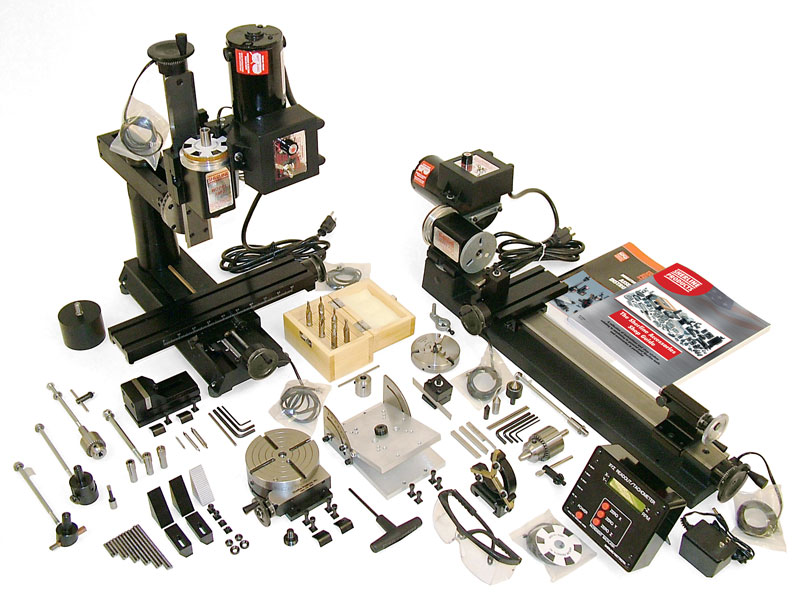

See the individual pages in the “LATHES” and “MILLS” sections for more details on the machines themselves and what comes with them. The package includes everything shown in the photo above.

NOTE: In August 2021, the DRO operation was modified so that it can do metric or inch conversions – providing readings in the units required with any leadscrew installed. DROs shipping after August 2021 include this feature and older units can be upgraded at a nominal charge (P/N 81705).

In addition to the lathe and mill, you get the following accessories:


  • 3.1″ 3-jaw Self-centering Chuck
  • 3/8″ Drill Chuck w/ Arbors, Key and Drawbolt
  • Steady Rest
  • Live Center
  • Rear Mount Cutoff Tool and Holder
  • 3-pc. 1/4″ HSS Tool Set (LH, RH, Boring)


  • Headstock Spacer Block
  • 3 pc. Center Drill Set
  • Fly Cutter w/ 1/4″ Carbide Cutting Tool
  • Boring Head
  • Boring Tool (5/16″ min. hole, 1″ max. depth)
  • 3-pc. Mill Collet Set w/ Drawbolt
  • 1/4″ Drill Chuck w/ #1 Morse Arbor, Key and Drawbolt
  • 3/8″ End Mill Holder
  • 6-pc. 3/8″ Shank End Mill Set
  • Milling Vise
  • Step Block Hold-down Set
  • 4″ Rotary Table
  • Tilting Angle Table


  • 5/32″ Sherline Hex T-Driver
  • Sherline Accessories Shop Guide book
  • Safety Glasses

The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.


Always wear safety glasses when operating machine tools.

Download Assembly and Instruction Guide

Instructions PDF Download

Download Mill DRO Instruction Guide

Instructions PDF Download

Download Lathe DRO Instruction Guide

Instructions PDF Download

Download PDF DRO Mode Instructions

Instructions PDF Download

Max clearance
(table to spindle)
9.00″ (229 mm)
(no spacer)
(w/ headstock spacer)
Travel, “X” Axis 8.65″ (220 mm)
Travel, “Y” Axis 7.00″ (178 mm)
Travel, “Z” Axis 5.38″ (137 mm)
Hole through spindle .405″ (10 mm)
Spindle nose thread 3/4″-16 T.P.I.
Spindle nose taper #1 Morse
Spindle runout of Morse taper .0005″ or less
Handwheel graduations .001″ (.01 mm)
Electronically controlled spindle speed range 70 to 2800 RPM
Width Overall* 15.00″ (381 mm)
Depth Overall* Base footprint: 16.75″ (425.5 mm); With fully extended brass leadscrew cover: 20.75″ (527 mm)
Height Overall (Max.)* 23.38″ (568 mm)
Table size 2.75″ x 13.00″ (70 x 330 mm)
Hold-down provision 2 T-Slots
Shipping Weight 45 lb. (20.1 kg)
Movements in addition
to X-, Y- and Z-axes
Headstock rotation (90° left/right)
Column rotation (90° left/right)
Column pivot (90° forward/back)
Column swing (90° left/right)
Column travel (in/out) 5.5″ (140 mm)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.

Click here for motor specifications

Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control

*Overall dimensions include motor and speed control

Swing Over Bed 3.50″ (90 mm)
Swing Over Carriage 1.75″ (45 mm)
Distance Between Centers 17.00″ (430 mm)
Hole Through Spindle .405″ (10 mm)
Spindle Nose Thread 3/4″-16 T.P.I.
Spindle Nose Taper #1 Morse
Spindle Runout of Morse Taper .0005″ or less
Travel of Crosslide 4.25″ (110 mm)
Tailstock Spindle Taper #0 Morse
Protractor Graduations 0° to 45° by 5°
Handwheel Graduations .001″ (.01 mm)
Length Overall 32.5″ (826 mm)
Width Overall 8.00″ (267 mm)
Height Overall 8.00″ (216 mm)
Shipping Weight 31 lb. (14.1 kg)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.Click here for motor specifications
Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control

Click on the link for the exploded view of the 4400-Series Manual Lathe to help identify replacement parts.

Click on the link for the exploded view of the 5000 and 5400 Series Manual Mills to help identify replacement parts.

If you are still uncertain please call our customer service representatives for help with this item.


We do not charge a flat rate for shipping because of the variations in weight for our products. Instead, we charge you what the shipping company charges us. Our website uses a shipping calculator based on the daily rates for USPS and UPS based on the weight and destination of the shipment. You can also have us use your UPS/FedEx account number to charge your shipping. Just enter it in the appropriate box on the checkout page.

Domestic orders are shipped Monday – Friday. Expedited orders must be placed by 9 am PST to ship the same day.

Orders shipping ground have a processing time of 7 working days for domestic orders and 14 working days for international orders. CLICK HERE for more information on our shipping and order policies.


Most merchandise can be returned within 30 days of the purchase date. A refund will be issued to the original form of payment at the original selling price. View our complete return policy and/or start your return online here.


If you are working with brass or wood, we suggest you use the toggle switch dust cover to protect the life of your motor & speed control.
