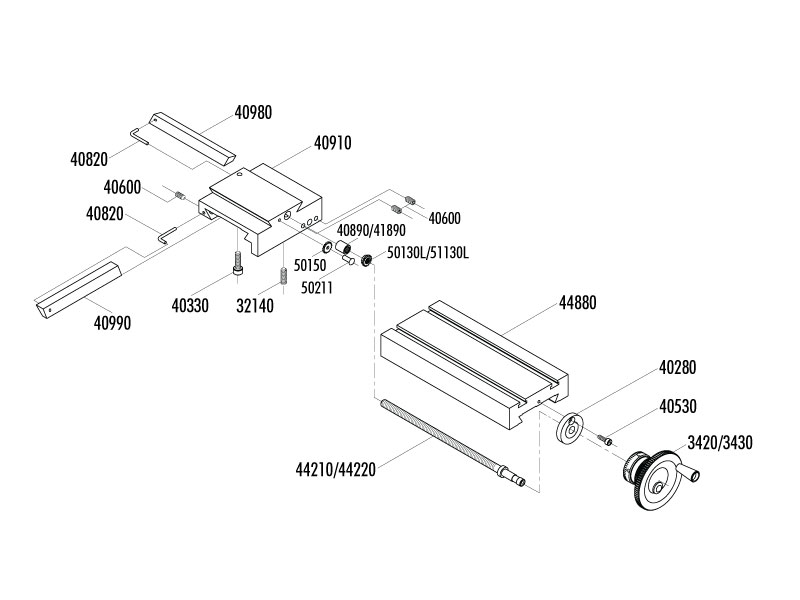

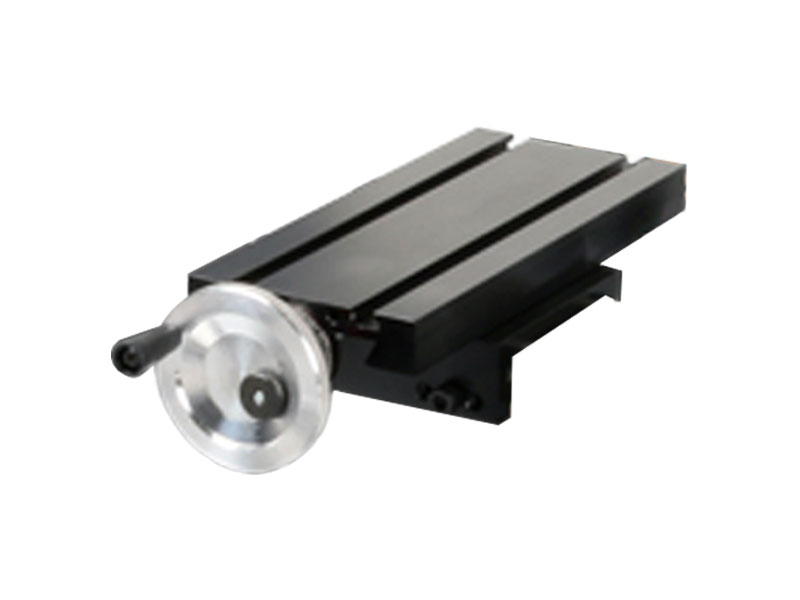

6″ Deluxe Lathe Crosslide and Saddle Assembly – Manual
With 2″ Zero Handwheel
-
| Part No. | Description | Quantity |
|---|---|---|
| 3420 3430 |
2″ Y-Axis Zero Handwheel (Inch) 2″ Y-Axis Zero Handwheel (Metric) |
1 |
| 32140 | 10-32 x 1/2″ Cup Point Set Screw | 1 |
| 40280 | Thrust Collar | 1 |
| 40330 | 10-32 x 5/8″ SHCS | 1 |
| 40530 | 5-40 x 3/8″ SHCS | 1 |
| 40600 | 10-32 x 1/4″ Flat Point Set Screw | 3 |
| 40820 | Gib Lock | 2 |
| 40890 41890 |
Slide Screw Insert (Inch) Slide Screw Insert (Metric) |
1 |
| 40910 | Lathe Saddle | 1 |
| 40980 | Crosslide Gib | 1 |
| 40990 | Saddle Gib | 1 |
| 44210 44220 |
6.5″ Slide Screw (Inch) 6.5″ Slide Screw (Metric) |
1 |
| 44880 | 6″ Crosslide | 1 |
| 50130L 51130L |
Lathe Anti-Backlash Nut (Inch) Lathe Anti-Backlash Nut (Metric) |
1 |
| 50150 | Anti-Backlash Lock | 1 |
| 50211 | 8-32 x 1/4″ Button Socket Screw | 1 |
