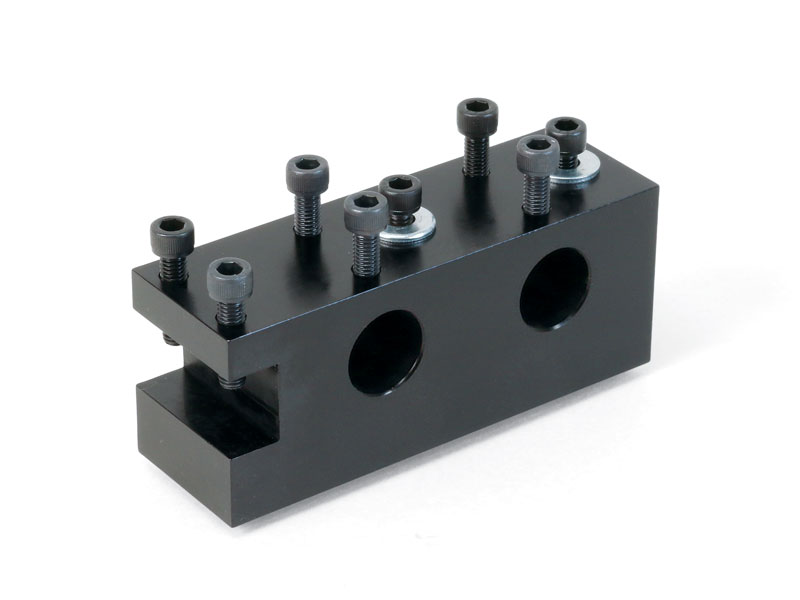

5/8″ Front Side Multi-Tool Holder
-
Tools not included, shown for reference only
Product Description

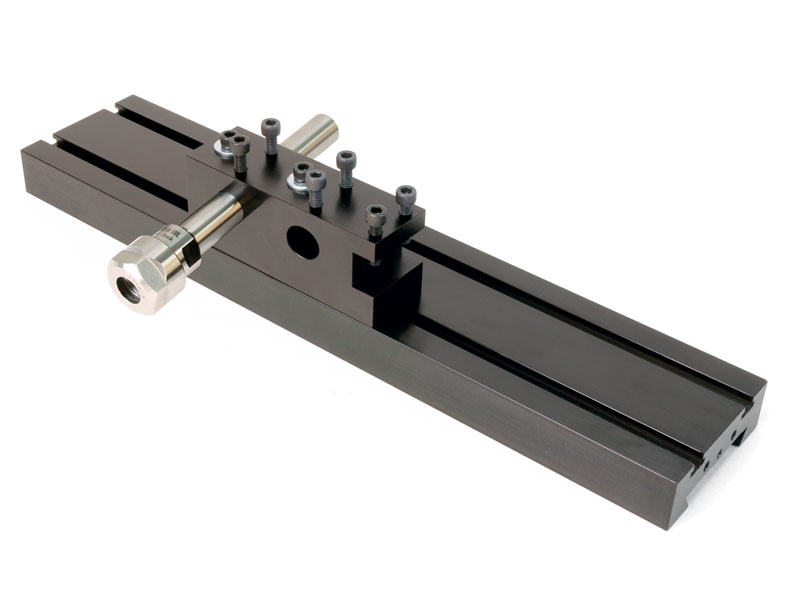

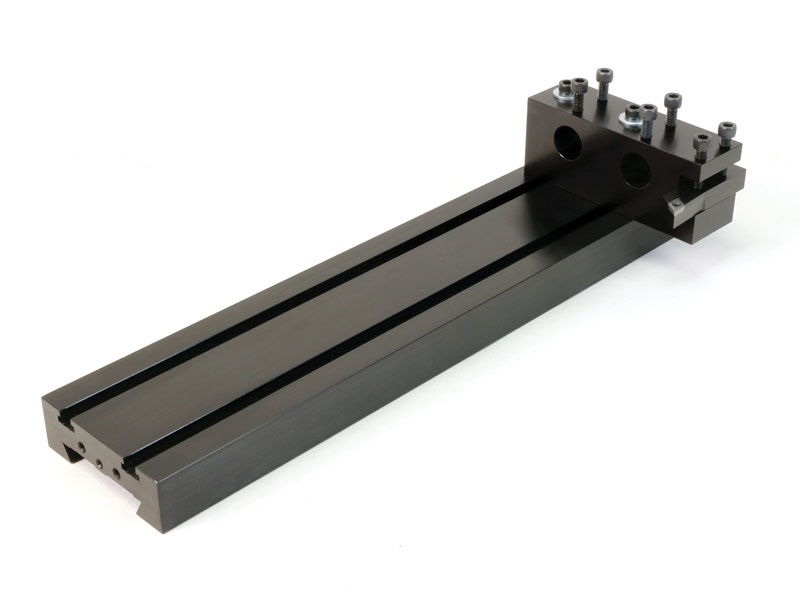

The front side, multi-tool holder was designed to complement our four position, gang-tooling tool posts. It can be used in conjunction with the gang-tooling tool post, or on its own for our customers who want to convert their Sherline lathe into a “Chucker Lathe” or gang-tooling lathe.

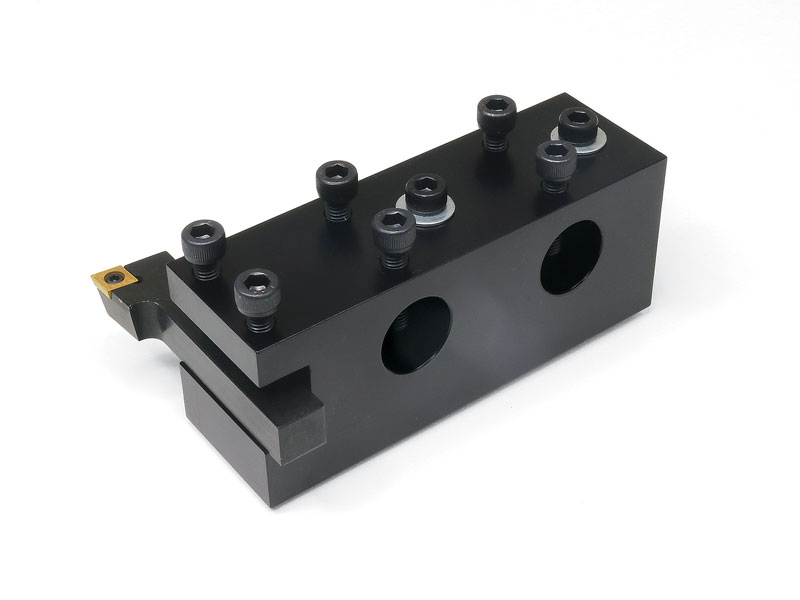

Our front side, multi-tool holder offers a convenient and accurate way to hold up to two, ER16 collet holders with a 5/8″ shank, and a slot to hold 3/8″ square carbide tool holders for turning, grooving, or threading tools.
For video instructions on “Indicating in Your Gang-Tooling Tool Post,” click on the Video tab above, or visit our Videos page.
Includes the following:
- 5/8″ Front Side Multi-Tool Post Body
- 10-32 x 1″ SHCS (2)
- Extended Tool-Post T-Nut (2)
- 10-32 x 3/4″ SHCS (6)
- #10 Washer (2)
- Steel Dowel Pin 1/4″ x 3/4″ (2)
Considerations Regarding this Tool Holder and Its Possible End Uses
There are many considerations regarding this tool post and its possible end uses. Please check the instructions for a complete list (click on the Instructions tab above to download the document).
Available Gang Tool Posts


3/8″ Gang-Tooling Tool Post
-
Add to cart

3/8″ Front Side Multi-Tool Holder
-
Add to cart

3/8″ Rear Side Multi-Tool Holder
-
Add to cart

5/8″ Rear Side Multi-Tool Holder
-
Add to cart

3/8″ Rear-Side Cutoff Multi-Tool Holder
-
Add to cart

5/8″ Gang-Tooling Tool Post
-
Add to cart

5/8″ Front Side Multi-Tool Holder
-
Add to cart

5/8″ Rear-Side Cutoff Multi-Tool Holder
-
Add to cartIndicating in your Sherline Gang-Tooling Tool Post
Insert Holder Tool Post |
|
---|---|
Tool Post Body Material | Aluminum |
Body Coating | Black Anodized |
Body Dimensions (H x W X D) | 1.5″ x 3.764″ x 1.1875″ |
Tool Holes | 1.5″ between centers |
Part No. | Description | Quantity |
---|---|---|
59307 | 5/8″ Front Side Multi-Tool Post Body | 1 |
40340 | 10-32 x 1″ SHC Screw | 2 |
40250 | Extended Tool-Post T-Nut | 2 |
40690 | 10-32 x 3/4″ SHC Screw | 6 |
40660 | #10 Washer | 2 |
59303 | Steel Dowel Pin 1/4″ x 3/4″ | 2 |
