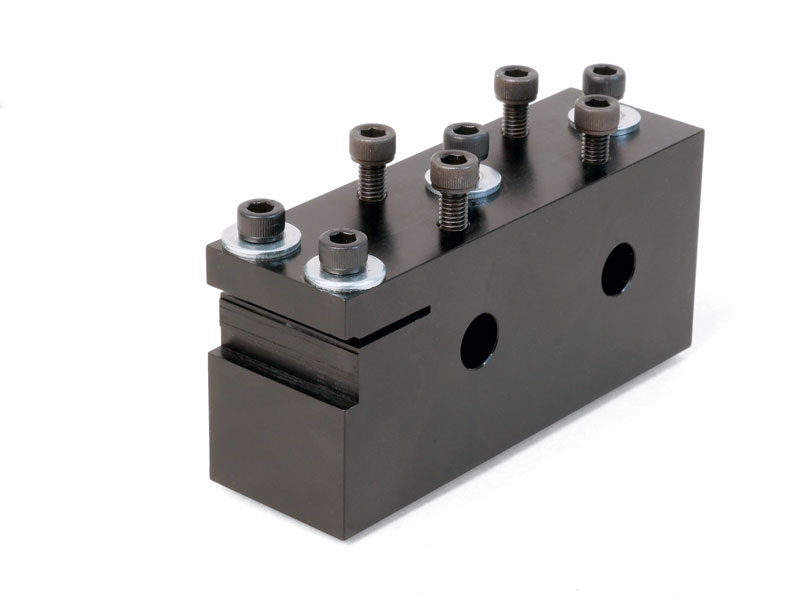

3/8″ Rear-Side Cutoff Multi-Tool Holder

-

Tools not included, shown for reference only

SKU: 5931 Category:

Product Description

About the 3/8″ Rear Side Cutoff Multi-Tool Holder

The rear side cutoff, multi-tool holder, was designed to complement our four-position, gang-tooling tool posts. It can be used in conjunction with the gang-tooling tool post or on its own for our customers who want to convert their Sherline lathe into a “Chucker Lathe” or gang-tooling lathe.

This tool holder is designed to be used on the backside of the part with the cutoff blade mounted with the cutting edge facing down. The cutoff blade cannot be used on the front side of the part.

Our rear-side cutoff multi-tool holder offers a convenient and accurate way to hold up to two round boring tools with a known center-line-to-center-line distance of 1.500″, and a slot for holding a cutoff tool blade.

We also offer a tool holder for customers who want to use ER16 collet holders with a 5/8″ shank.

For video instructions on “Indicating in Your Gang-Tooling Tool Post,” click on the Video tab above or visit our Videos page.

Includes the following:

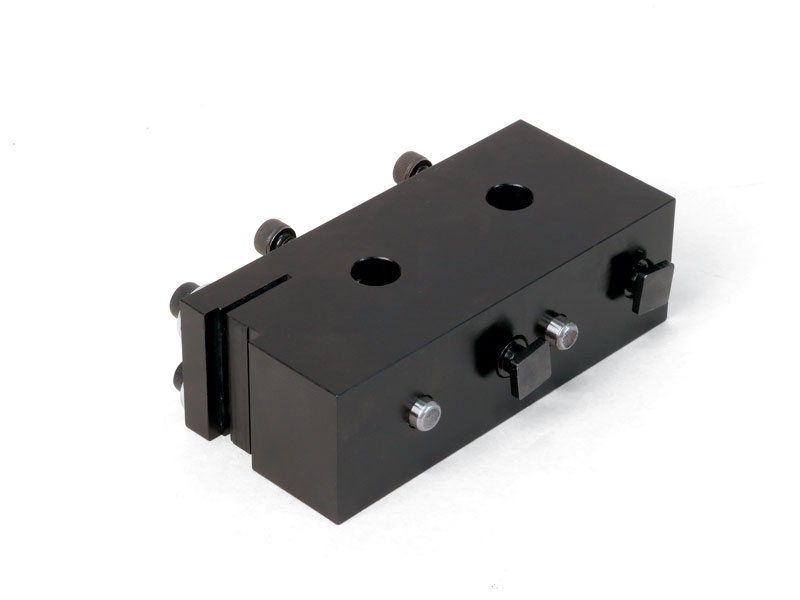

  • 3/8″ Rear-Side Cutoff Multi-Tool Post Body
  • 10-32 x 1″ SHCS (2)
  • Extended Tool-Post T-Nut (2)
  • 10-32 x 3/4″ SHCS (6)
  • #10 Washer (4)
  • Steel Dowel Pin 1/4″ x 3/4″ (2)

Using the Part-Off Tool

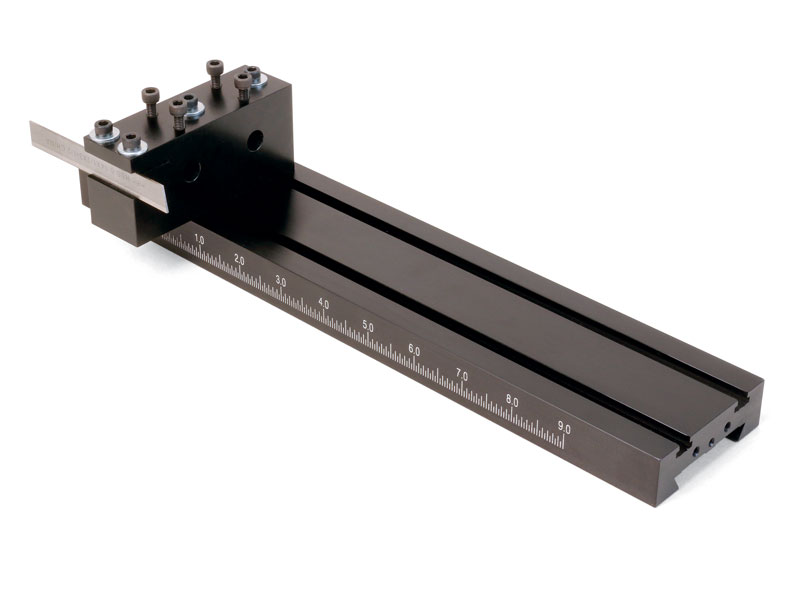

This holder can be mounted as shown in Figure 1, so the blade is in front of the crosslide. This will allow you to cut off larger diameter parts as long as the section to be parted off does not exceed 1.0” in length (the distance between the back of the part-off blade and the front of the crosslide).

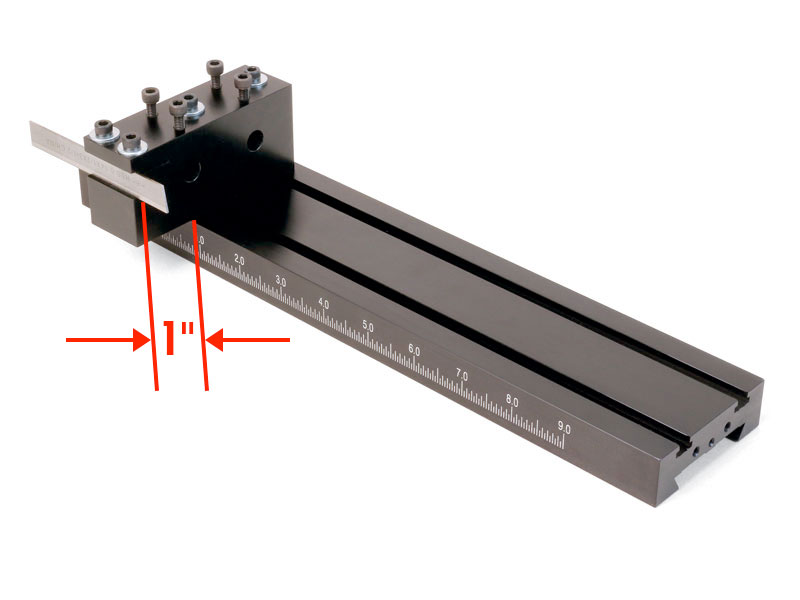

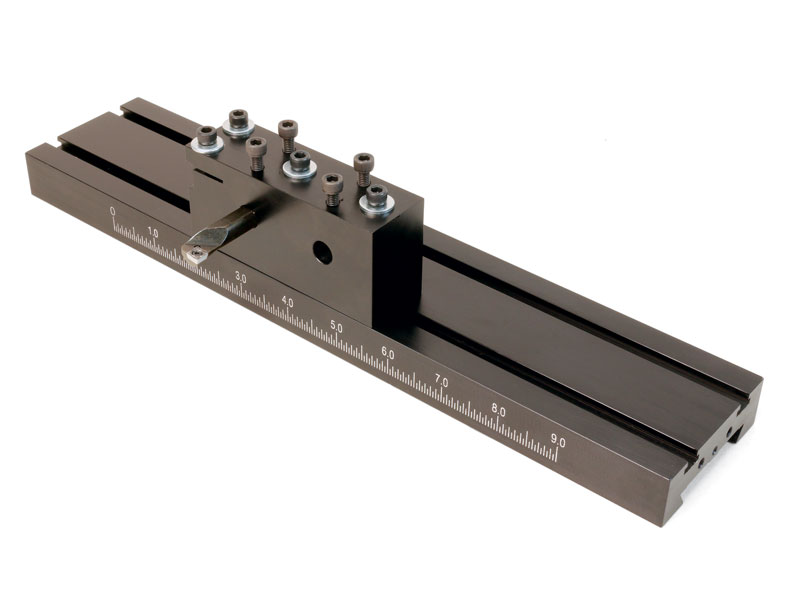

FIGURE 1—The distance from the back of the part-off blade to the front of the crosslide is 1.0″ when the tool holder is perpendicular to the crosslide. Click on the image for a larger view.

Considerations Regarding This Tool Holder and Its Possible End Uses

There are many considerations regarding this tool post and its possible end uses. Please check the instructions for a complete list (click on the Instructions tab above to download the document).

Available Gang Tool Posts

3/8″ Gang-Tooling Tool Post
Tools not included, shown for reference only
$86.19

-

Add to cart
3/8″ Front-Side Multi-Tool Holder
Tools not included, shown for reference only
$74.70

-

Add to cart
3/8″ Rear Side Multi-Tool Holder
Tools not included, shown for reference only
$78.15

-

Add to cart
5/8″ Rear Side Multi-Tool Holder
Tools not included, shown for reference only
$89.64

-

Add to cart
3/8″ Rear-Side Cutoff Multi-Tool Holder
Tools not included, shown for reference only
$86.19

-

Add to cart
5/8″ Gang-Tooling Tool Post
Tools not included, shown for reference only
$109.17

-

Add to cart
5/8″ Front-Side Multi-Tool Holder
Tools not included, shown for reference only
$86.19

-

Add to cart
5/8″ Rear-Side Cutoff Multi-Tool Holder
Tools not included, shown for reference only
$97.68

-

Add to cart

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 5931 Instructions

Instructions PDF Download

Indicating in your Sherline Gang-Tooling Tool Post

Insert Holder Tool Post
Tool Post Body Material Aluminum
Body Coating Black Anodized
Body Dimensions (H x W X D) 1.7″ x 3.764″ x 1.1875″
Tool Holes 1.5″ between centers
Part No. Description Quantity
59302 3/8″ Rear Side Cutoff Multi-Tool Post Body 1
40710 10-32 x 1 1/4″ SHC Screw 2
40250 Extended Tool-Post T-Nut 2
40690 10-32 x 3/4″ SHC Screw 6
40660 #10 Washer 4
59303 Steel Dowel Pin 1/4″ x 3/4″ 2
