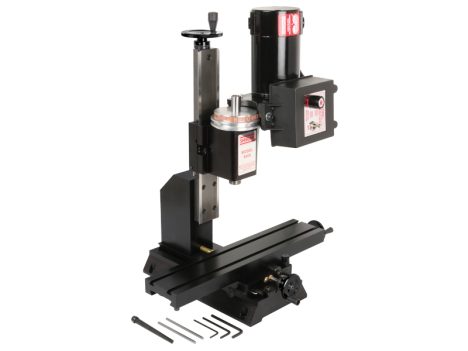

10″ Mill
The 10″ tabletop mill is Sherline’s most affordable milling machines and an excellent starting point for any miniature machine shop. These mills feature a sturdy 10″ (254mm) precision-machined aluminum base, dovetailed slides with adjustable gibs, permanently lubricated spindle bearings, and adjustable preload anti-backlash feed screws on the X- and Y-axes. They also include two 1-5/8″ (41mm) laser-engraved aluminum handwheels, one 2-1/2″ (63mm) handwheel with thrust bearings, and many of the same features found on high-end commercial machines.
This compact tabletop mill is ideal for those looking to create small, precision parts. Proudly made in the USA, our mills are backed by unmatched customer service. Despite its small footprint, the 10″ mill delivers the accuracy and rigidity needed to cut not only wood and plastic, but also aluminum and steel. It’s a desktop-size machine built for full-size performance and precision.
Note on Ordering a Metric Mill – Most Sherline cutting tool, such as center drills, are offered in fractional sizes. If you opt for a metric machine with metric collets or holders, you’ll need to order compatible fractional-size holders to use these tools effectively.
Standard Equipment for the 10″ Benchtop Mill
- A powerful 90V DC motor with electronic speed controller
- 10″ base with laser-engraved scales
- Brass leadscrew cover that keeps chips off the rear of the Y-axis leadscrew
- 2.75″ (70 mm) x 13.0″ (330 mm) table with laser-engraved scales and two T-slots
- Standard handwheels:
- (2) 1-5/8″ (41 mm) handwheels on the X- and Y-axes
- (1) 2-1/2″ (63 mm) handwheel with thrust bearings on the Z-axis
- All with laser-engraved aluminum collars
- Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual
- Oil reservoirs on the X/Y axes and the Z axis help keep critical parts lubricated. These were initially developed for CNC machines that run constantly for hours on end but can benefit manual machines as well
-
| Max clearance (table to spindle) |
8.00″ (203 mm) |
|---|---|
| Throat (no spacer) |
Optional |
| Throat (w/ headstock spacer) |
Adjustable |
| Travel, “X” Axis | 8.65″ (220 mm) |
| Travel, “Y” Axis | 3.00″ (76 mm) |
| Travel, “Z” Axis | 6.25″ (159 mm) |
| Hole through spindle | .405″ (10 mm) |
| Spindle nose thread | 3/4″-16 T.P.I. |
| Spindle nose taper | #1 Morse |
| Spindle runout of Morse taper | .0005″ or less |
| Handwheel graduations | .001″ (.01 mm) |
| Electronically controlled spindle speed range | 70 to 2800 RPM |
| Width Overall* | 14.75″ (375 mm) |
| Depth Overall* | Base footprint: 11.625″ (295 mm); With fully extended brass leadscrew cover: 12.375″ (314 mm) |
| Height Overall (Max.)* | 20.75″ (527 mm) |
| Table size | 2.75″ x 13.00″ (70 x 330 mm) |
| Hold-down provision | 2 T-Slots |
| Shipping Weight | 30 lb. (13.6 kg)td> |
| Movements in addition to X-, Y- and Z-axes |
Headstock rotation (90° left/right) |
| Column rotation | (90° left/right) |
| Column pivot | (90° forward/back) |
| Column swing | (90° left/right) |
| Column travel | (in/out) 5.5″ (140 mm) |
| Motor | 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz. Click here for motor specifications |
| Spindle Speed Range | 70-2800 RPM continuously variable by electronic speed control |
*Overall dimensions include motor and speed control
Click on the link for the exploded view of the 5000 and 5400 Series Manual Mills to help identify replacement parts.
If you are still uncertain please call our customer service representatives for help with this item.
Click the P/Ns below to download a zipped version of the IGS 3D CAD file. You will need to extract the zip file before viewing the files.
5000 3D IGS model
You need an IGS viewer to open .igs files. CLICK HERE to download a FREE IGS viewer.
|
 |
 |
 |
|
|---|---|---|---|---|
| 5000 (5100) | 5400 (5410) | 2000 (2010) | 5800 (5810) | |
| Max. clearance (table to spindle) |
8.00″ (203 mm) | 8.00″ (203 mm) | 9.00″ (229 mm) | 14.00″ (356 mm) |
| Throat (no spacer) | 2.25″ (50 mm) | 2.25″ (50 mm) | Adjustable | Adjustable |
| Throat (w/ headstock spacer) | Optional | 3.50″ (90 mm) | Adjustable | Adjustable |
| Travel: X-axis (with stop) | 8.65″ (220 mm) | 8.65″ (220 mm) | 8.65″ (220 mm) | 13.65″ (347 mm) |
| Travel: Y-axis | 3.00″ (76 mm) | 5.00″ (127 mm) | 7.00″ (178 mm) | 11.00″ (279 mm) |
| Travel: Z-axis | 6.25″ (159 mm) | 6.25″ (159 mm) | 5.38″ (137 mm) | 9.38″ (238 mm) |
| Hole through spindle | .405″ (10 mm) | .405″ (10 mm) | .405″ (10 mm) | .405″ (10 mm) |
| Spindle nose thread | 3/4-16 T.P.I. | 3/4-16 T.P.I. | 3/4-16 T.P.I. | 3/4-16 T.P.I. |
| Spindle nose taper | #1 Morse | #1 Morse | #1 Morse | #1 Morse |
| Spindle runout of Morse taper | .0005″ or less | .0005″ or less | .0005″ or less | .0005″ or less |
| Handwheel graduations | .001″ (.01 mm) | .001″ (.01 mm) | .001″ (.01 mm) | .001″ (.01 mm) |
| Handwheel Type | Standard Handwheels | Zero Adjustable Handwheels (With the exception of DRO machines which come with DRO handwheels) | Zero Adjustable Handwheels (With the exception of DRO machines which come with DRO handwheels) | Zero Adjustable Handwheels (With the exception of DRO machines which come with DRO handwheels) |
| Electronically controlled spindle speed range |
70 to 2800 RPM | 70 to 2800 RPM | 70 to 2800 RPM | 70 to 2800 RPM |
| Width overall | 14.75″ (375 mm | 15.00″ (381 mm) | 15.00″ (381 mm) | 20.00 (508 mm) |
| Depth overall | 11.75″ (298 mm) | 14.00″ (356 mm) | 22.25″ (565 mm) | 23.13″ (588 mm) |
| Height overall (Max.) | 20.75″ (527 mm) | 20.75″ (527 mm) | 23.38″ (568 mm) | 24.50″ (622 mm) |
| Table size | 2.75″ x 13.00″ (70 mm x 330 mm) |
2.75″ x 13.00″ (70 mm x 330 mm) |
2.75″ x 13.00″ (70 mm x 330 mm) |
2.75″ x 18.00″ (70 x 457 mm) |
| Hold-down provision | 2 T-slots | 2 T-slots | 2 T-slots | 3 T-slots |
| Shipping weight | 33 lb (15.0 kg) | 36 lb (16.3 kg) | 38 lb (17.2 kg) | 50 lb. (22.7 kg) |
| Movements in addition to X-, Y- and Z-axes |
Headstock rotation (90° L/R) |
Headstock rotation (90° L/R) |
Headstock rotation (90° L/R) |
Headstock rotation (90° L/R) |
| Column rotation | N/A | N/A | (90° L/R) | N/A |
| Column pivot | N/A | N/A | (90° Fwd/Bk) | (90° Fwd/Bk) |
| Column swing | N/A | N/A | (90°L/R) | (90°L/R) |
| Column travel | N/A | N/A | (In/Out) 5.5″ (140 mm) | (In/Out) 5.5″ (140 mm) |
| Motor Specs | ||||
| Input voltage | 100 to 240 VAC, 50 or 60 Hz | |||
| Output to motor | 90 VDC | |||
| Current draw | .5 to 15 amps depending on load | |||
| No-load output shaft speed | 6000 RPM (no pulley) | |||
| Click here for more detailed specs | ||||
| Spindle Specs | ||||
| Spindle End play (factory adjustment of preload) |
.0002″ (.005 mm) or less, normal pulleys | |||
| Runout at nose | .0005″ (0.013 mm) or less | |||
| Bearings | Two 20 mm lifetime lubricated ball bearings with adjustable preload | |||
