17″ Lathe Package A – CNC Ready
Any Sherline lathe can be ordered ready for the application of stepper motors and Computer Numeric Control (CNC). Sherline installs stepper motor mounts in place of the leadscrew and crosslide handwheels. These mounts are designed to accept 23-frame size stepper motors. A dampened coupling for the 1/4″ motor shaft is included. The coupling drives the leadscrew through two 3/8″ bearings with adjustable preload to remove end play.
Once you have the machine, you will need to attach stepper motors and connect them through a driver to a computer. Several aftermarket companies provide the proper motors, drivers, and software to complete the package. You can read a list of these supplies and visit their websites for price comparisons by visiting the CNC Dealers page within Sherline’s site. Sherline also offers high-quality stepper motors, which can be found in the accessories section of this site.
Standard equipment for the lathe includes:
- A powerful 90V DC motor with electronic speed controller*
- 2.75″ (70mm) x 6.0″ (152mm) crosslide
- 24″ (610mm) steel bed that has 17″ (431mm) between centers
- 2.5″ (63mm) resettable “zero” handwheel for the leadscrew, one 2″ (51mm) resettable “zero” handwheels for the crosslide feed screw, and a 2″ (51mm) resettable “zero” handwheel on the tailstock. Each handwheel has laser engraved aluminum handwheel collars*
- Rocker tool post substituted for the standard tool post used on the short bed lathes
- Pulleys, drive belt, faceplate, lathe dog, two dead centers, three hexagonal keys, tool post, sharpened high-speed steel cutting tool, eight-foot three-wire power cord, and instruction manual
* Not included with lathe without motor and speed control
**CNC-ready machines cannot be operated manually until stepper motors are installed.

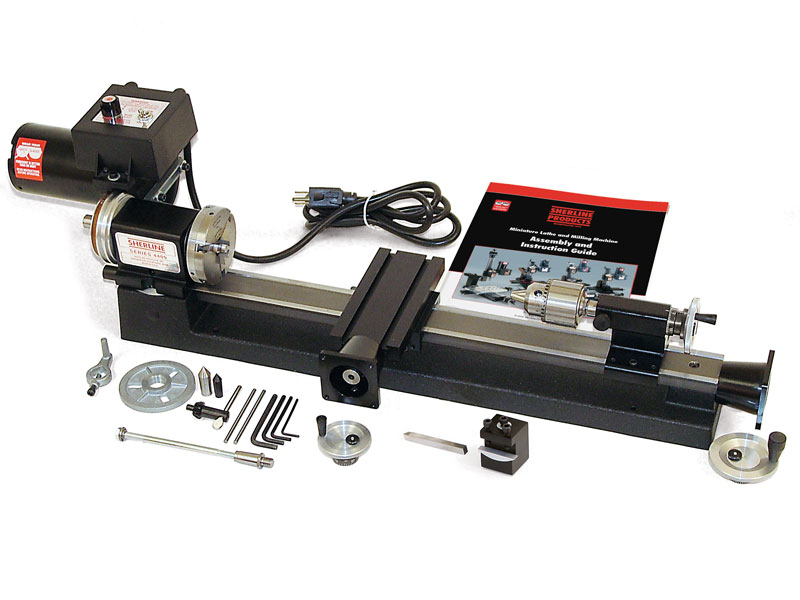

The A Package Includes:
- 3.1″ 3-jaw self-centering chuck
- 3/8″ tailstock drill chuck w/ key, #0 Morse arbor, #1 Morse arbor with drawbolt
Other ordering options:
Similar to the XYZ bases for our mills, you can now order the lathe without the headstock, motor, or speed control. Please see the selections in the drop-down menu above.
Always wear safety glasses when operating machine tools.
|Swing Over Bed||3.50″ (90 mm)|
|Swing Over Carriage||1.75″ (45 mm)|
|Distance Between Centers||17.00″ (430 mm)|
|Hole Through Spindle||.405″ (10 mm)|
|Spindle Nose Thread||3/4″-16 T.P.I.|
|Spindle Nose Taper||#1 Morse|
|Spindle Runout of Morse Taper||.0005″ or less|
|Travel of Crosslide||4.25″ (110 mm)|
|Tailstock Spindle Taper||#0 Morse|
|Protractor Graduations||0° to 45° by 5°|
|Handwheel Graduations||.001″ (.01 mm)|
|Length Overall||32.5″ (826 mm)|
|Width Overall||8.00″ (267 mm)|
|Height Overall||8.00″ (216 mm)|
|Shipping Weight||31 lb. (14.1 kg)|
|Motor||90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.
Click here for motor specifications
|Spindle Speed Range||70-2800 RPM continuously variable by electronic speed control|
4400-Series CNC-Ready Lathe
Click on the link for the exploded view of the 4400-Series CNC-Ready Lathe to help identify replacement parts.
If you are still uncertain please call our customer service representatives for help with this item.
We offer two types of 3D object files: .igs and .stp.
- To view .igs files you need an IGS viewer. CLICK HERE to download a FREE IGS viewer.
- To view .stp files you need an STP viewer. CLICK HERE to use Autodesk’s FREE A360* online file viewer. STP is a file extension for a 3-D graphic file used by CAD software. STP stands for STandard for the Exchange of Product model data. STP files are used to store 3D image data in an ASCII format, following the standards defined in ISO 10303-21: Clear Text Encoding of the Exchange Structure.
- Each 3D file format has been compressed into a single .rar file to save file space. Click on the .rar file link below to download it to your computer.
- Extract the .rar file to the drive location of your choice.
- If your system cannot decompress RAR files, CLICK HERE to download WinRAR software.
- Open the .igs file using the IGS Viewer, or open the .stp file using the A360 Autodesk online viewer.
*NOTE: There are also other free STP viewers that can be downloaded directly to your computer.
4400 Series 17″ Lathe CNC-Ready
CLICK HERE to download the 3D RAR file.
|4000 (4100)||4400 (4410)|
|Swing over bed||3.50″ (90 mm)||3.50″ (90 mm)|
|Swing over carriage||1.75″ (44.5 mm)||1.75″ (44.5 mm)|
|Distance between centers||8.00″ (200 mm)||17.00″ (430 mm)|
|Hole through spindle||.405″ (10 mm)||.405″ (10 mm)|
|Spindle nose thread||3/4-16 T.P.I.||3/4-16 T.P.I.|
|Spindle nose taper||#1 Morse||#1 Morse|
|Spindle runout of Morse taper||0005″ or less||.0005″ or less|
|Travel of crosslide||4.25″ (110 mm)||4.25″ (110 mm)|
|Tailstock spindle taper||#0 Morse||#0 Morse|
|Tailstock spindle travel||1.75″ (44.5 mm)||1.75″ (44.5 mm)|
|Protractor graduations||0° to 45° by 5°||0° to 45° by 5°|
|Handwheel graduations||001″ (.01 mm)||001″ (.01 mm)|
|Handwheel type||Standard Handwheels||Zero Adjustable Handwheels (With the exception of DRO machines which come with DRO handwheels)|
|Electronically controlled spindle speed range||70 to 2800 RPM||70 to 2800 RPM|
|Length overall||23″ (584 mm)||32.5″ (826 mm)|
|Width overall||10.25″ (260 mm)||10.55″ (267 mm)|
|Height overall||8″ (203 mm)||8.5″ (216 mm)|
|Shipping weight||24 lb. (10.9 kg)||30 lb. (13.6 kg)|
|Input voltage||100 to 240 VAC, 50 or 60 Hz|
|Output to motor||90 VDC|
|Current draw||.5 to 15 amps depending on load|
|No-load output shaft speed||6000 RPM (no pulley)|
|Click here for more detailed specs|
|Spindle End play (factory
adjustment of preload)
|.0002″ (.005 mm) or less, normal pulleys|
|Runout at nose||.0005″ (0.013 mm) or less|
|Bearings||Two 20 mm lifetime lubricated ball bearings with adjustable preload|
