Back to Replacement Parts

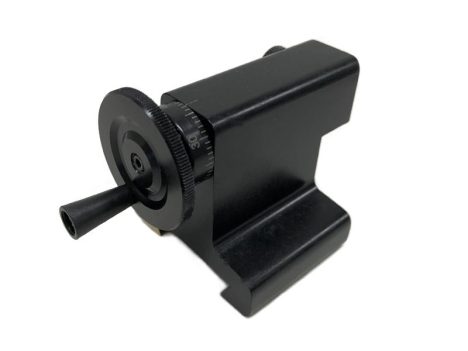

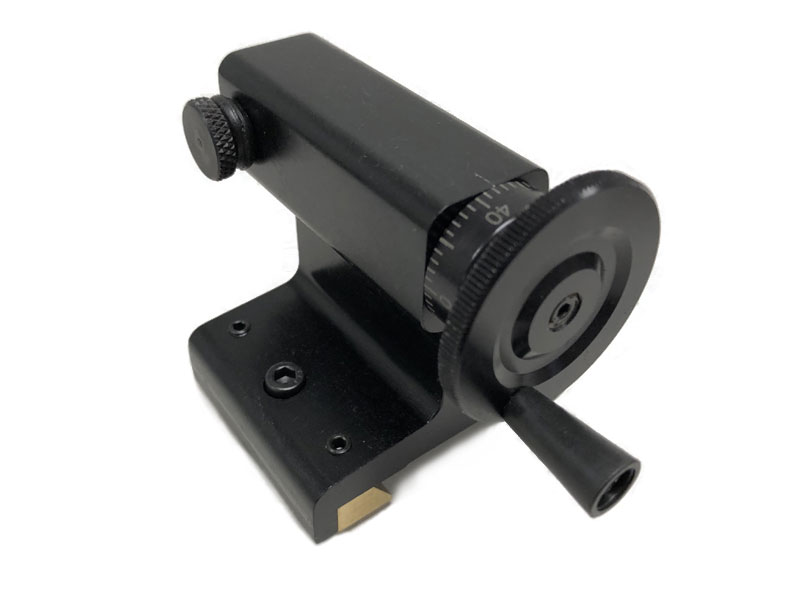

Tailstock Assembly
-
| Part No. | Description | Quantity |
|---|---|---|
| 32140 | 10-32 x 1/2″ Cup Point Set Screw | 2 |
| 40080 41040 |
1-5/8″ Handwheel (Inch) 1-5/8″ Handwheel (Metric) |
1 |
| 40111 | Tailstock Case | 1 |
| 40112 | Tailstock Gib | 1 |
| 40220 41220 |
Feed Screw (Inch) Feed Screw (Metric) |
1 |
| 40270 41270 |
Tailstock Spindle (Inch) Tailstock Spindle (Metric) |
1 |
| 40330 | 10-32 x 5/8″ SHCS | 1 |
| 40520 | 10-32 x 3/16″ Cup Point Set Screw | 1 |
| 40590 | 1/4″ Washer | 1 |
| 40860 | Tailstock Locking Screw Grommet | 1 |
| 40870 | Tailstock Spindle Locking Screw | 1 |
