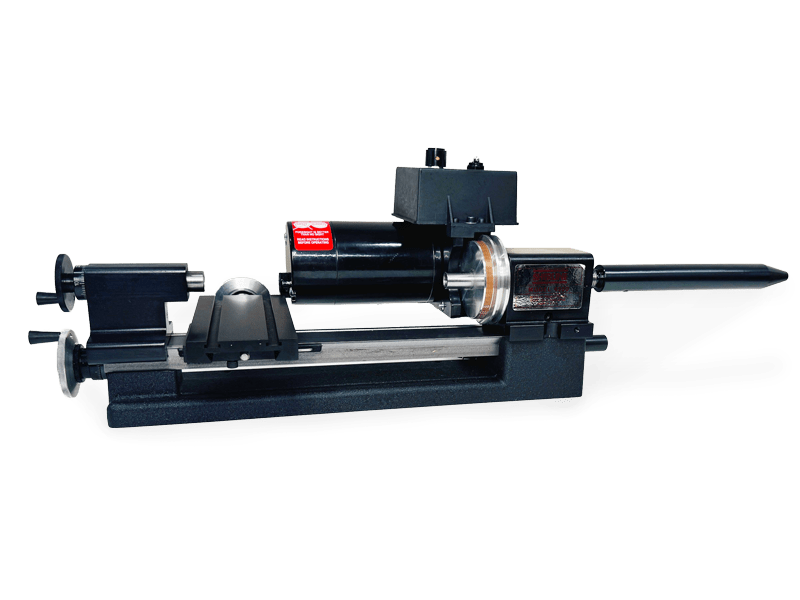

Sherline Lathe (not included) with the headstock rotated for use with our Jewelers Point Carver Holders
Sherline Lathe (not included) with the headstock rotated for use with our Jewelers Point Carver Holders
Our Jeweler Point Carver System was developed in response to a request from Everett Walker Jewels. You can view Everett’s exceptional craftsmanship on Instagram at @everettwalkerjewels
Designed primarily for lapidary applications, this system provides jewelers with a precise and secure method for carving, shaping, and detailing stones and other small components.
The system is built around our P/N 3306 headstock, which features a Morse #1 spindle taper. It can be purchased as a complete, standalone system or the point carver holders can be purchased as an accessory for any Sherline lathe equipped with a Morse #1 headstock.

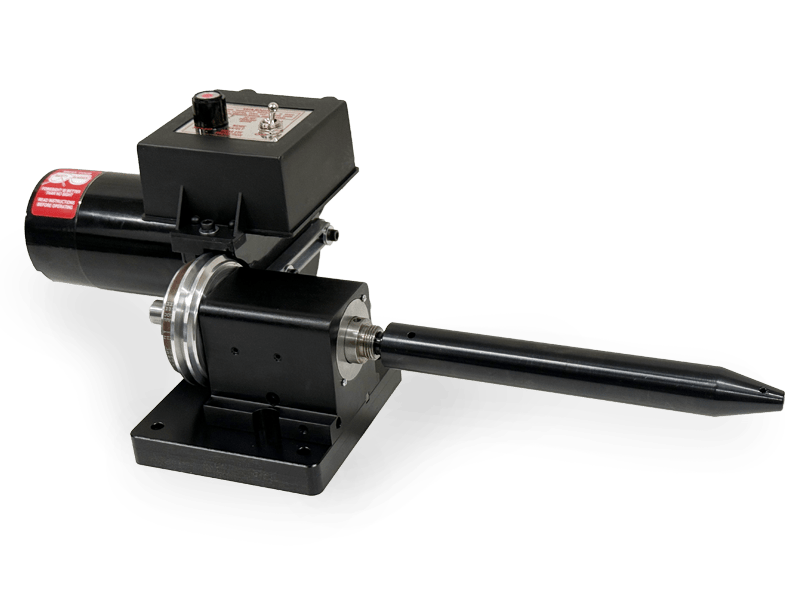

At the core of the system is the headstock, paired with a motor and electronic speed control to deliver smooth, variable-speed operation.

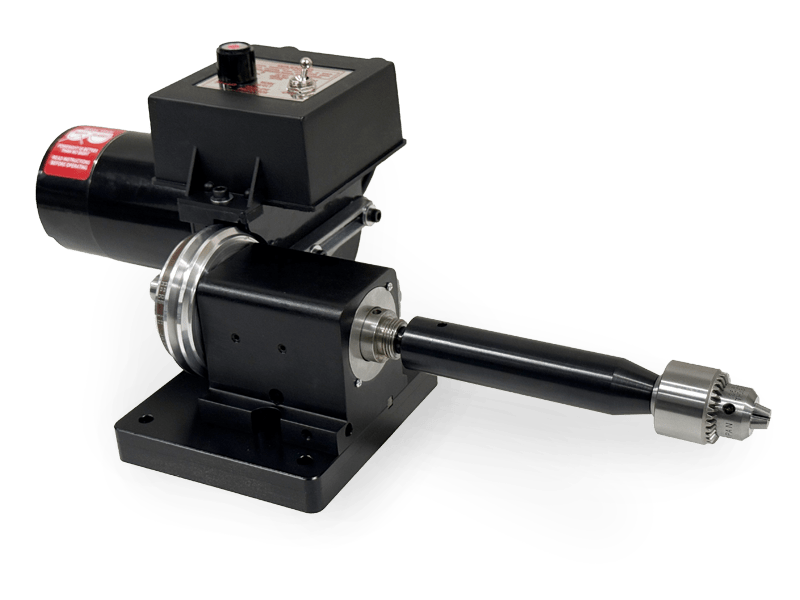

The system offers four interchangeable holder options. Each holder features a Morse #1 taper mount that fits directly into the headstock spindle. The taper mount provides a highly secure and concentric connection, making it one of the most reliable methods for mounting accessories on a rotating axis.

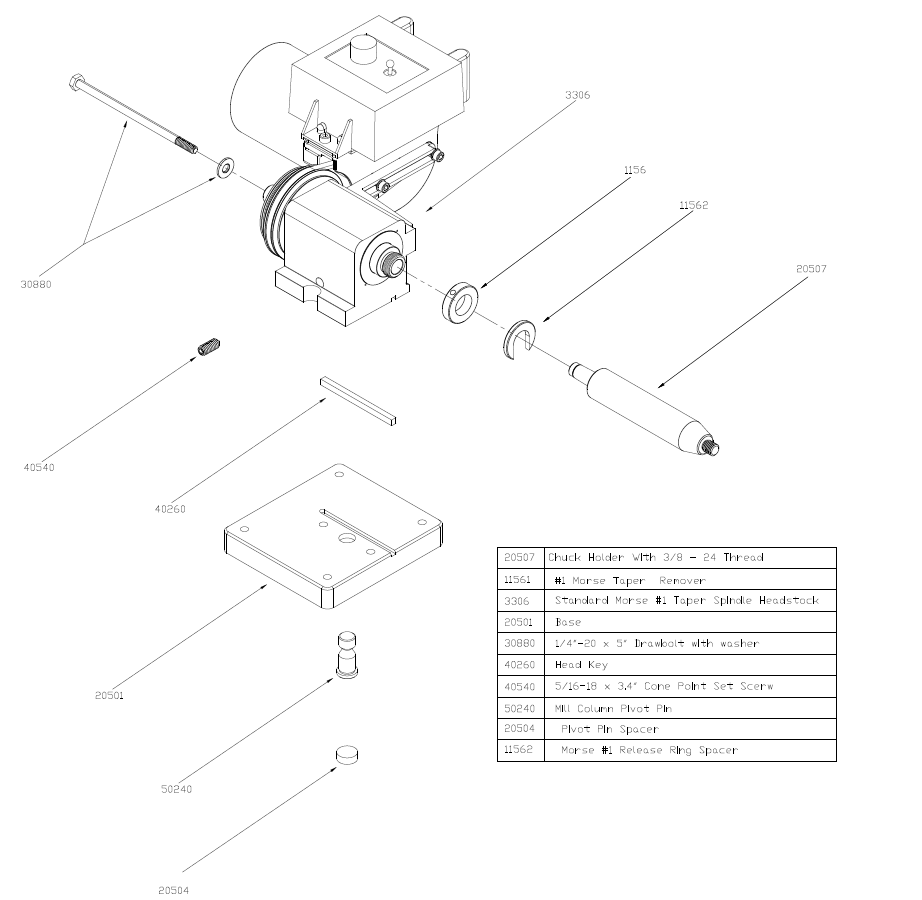

Each holder includes our P/N 30880 ¼-20 drawbolt and washer, ensuring the holder is securely retained within the spindle’s Morse #1 taper during operation.

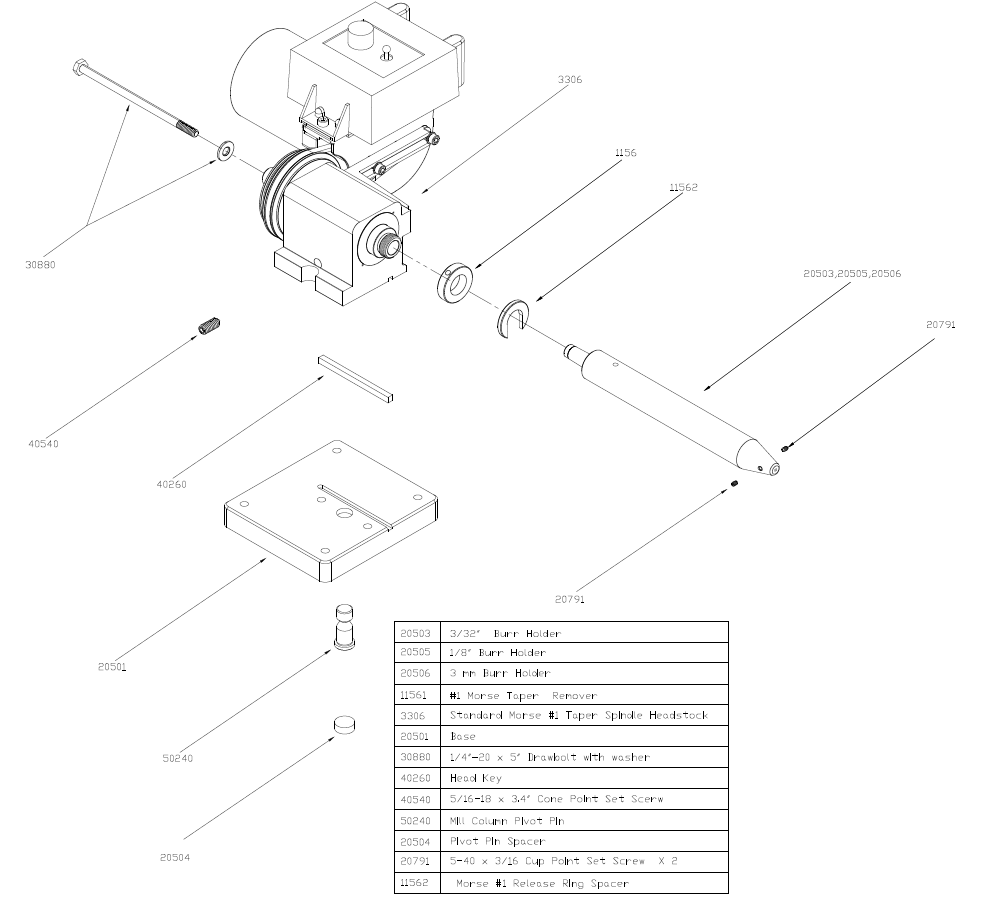

The Point Carver System also includes our P/N 1156 #1 Morse Taper Remover, allowing holders to be safely and easily released from the spindle taper when changing setups.
-
Jewelers Point Carver System Instructions
For use with our Jewelers Point Carver system or your existing lathe headstock.
Each holder features a Morse #1 taper mount that fits directly into the headstock spindle. The taper mount provides a highly secure and concentric connection, making it one of the most reliable methods for mounting accessories on a rotating axis.
Each holder includes our P/N 30880 ¼-20 drawbolt and washer, ensuring the holder is securely retained within the spindle's Morse #1 taper during operation.
