#1 Morse Taper Remover

SKU: 1156 Categories: ,

Product Description

Using the Taper Removal Tool

Throughout the years, some customers have asked for a way to remove tapered tools like drill chucks, boring heads or the WW Collet Adapter from the spindle without having to hit the drawbolt with a hammer or use a knockout bar, fearing it might knock their headstock out of alignment. This simple removal ring screws onto the 3/4-16 thread on the Sherline headstock spindle nose. Unscrewing the remover pushes the #1 Morse holder out of the spindle.

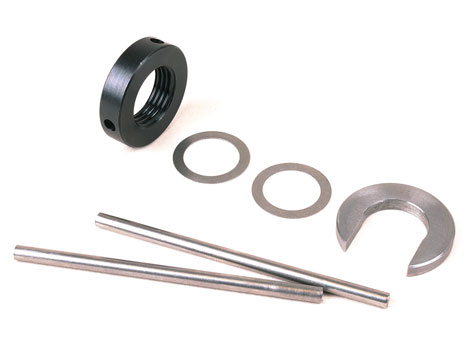

What Is Included

Two slip washers are included. These help push straight down on the taper without rotating it, while breaking the taper loose. A special “C” shaped washer is also included to help remove drill chucks. Two Tommy bars are also provided.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 1156 Instructions

Instructions PDF Download

11561 Spindle Taper Removal Ring
11562 #1 Morse Release Ring Spacer
11824 (2) Shim Washers
40580 (2) Tommy Bars
