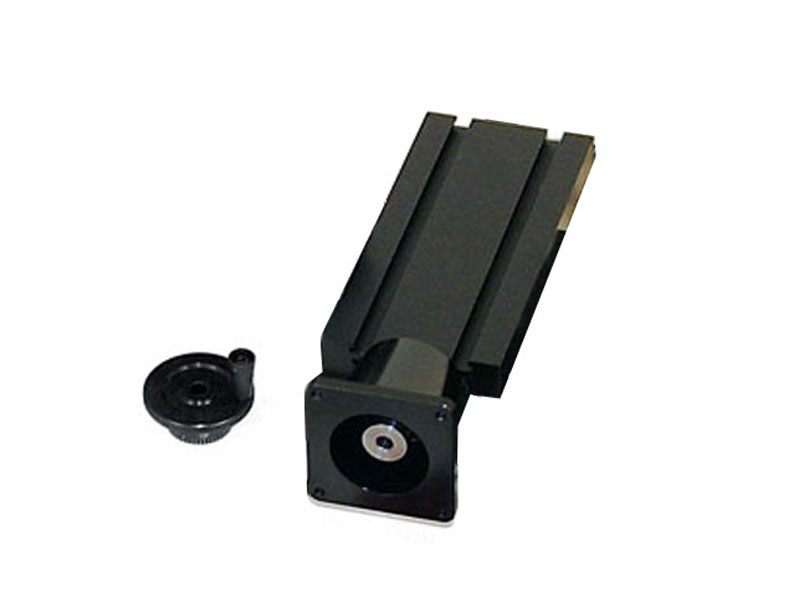

6″ Lathe Crosslide Assembly – CNC Ready
-

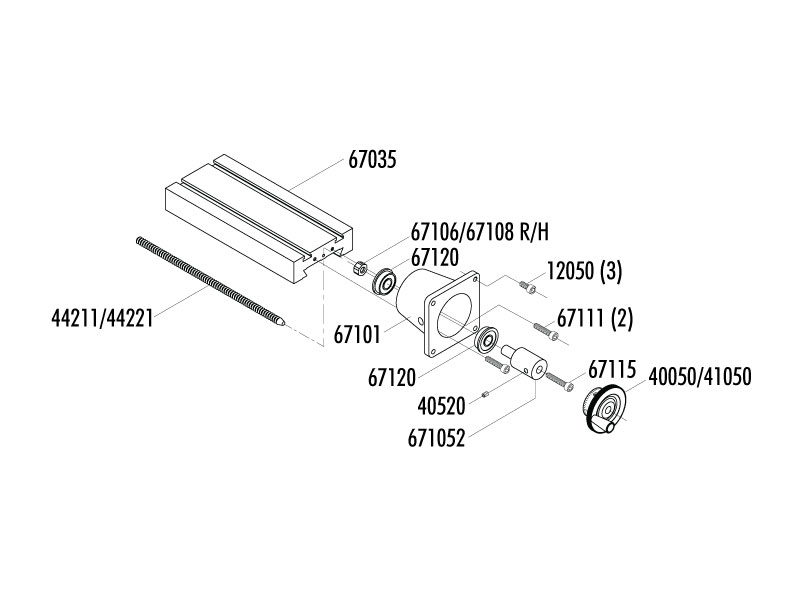

| Part No. | Description | Quantity |
|---|---|---|
| 12050 | 8-32 x 3/8″ SHCS | 3 |
| 40050 41050 |
Y Axis Handwheel (Inch) Y Axis Handwheel (Metric) |
1 |
| 40520 | 10-32 x 3/16″ Cup PT Set Screw | 1 |
| 44211 44221 |
6.5″ Slide Screw (Inch) 6.5″ Slide Screw (Metric) |
1 |
| 67035 | 6″ Crosslide | 1 |
| 67102 | Stepper Motor Mount | 1 |
| 671052 | CNC Coupling | 1 |
| 67106 67108 |
RH Coupling Preload Nut – Course (Inch) RH Coupling Preload Nut – Course (Metric) |
1 |
| 67111 | 8-32 x 7/8″ SHCS | 2 |
| 67115 | 5-40 x 7/8″ SHCS | 1 |
| 67120 | Stepper Motor Preload Bearing | 2 |
