Use of the 3/8″ Drill Chuck with the Straight Shaft Arbor

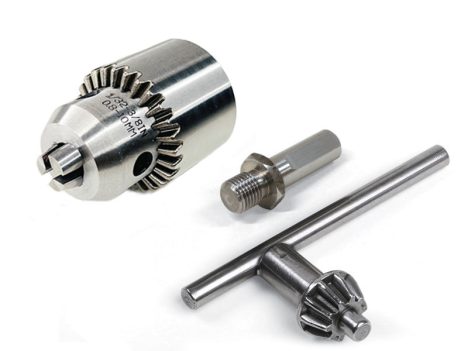

This chuck comes with a straight shaft arbor designed to fit in our multi-tool holders with 3/8″ mounting holes*. The straight shaft arbor will also work with our 3/8″ insert holder tool post (P/N 7600). It has a 3/8″ diameter straight shaft with a machined flat for holding in the posts. Ensure the flat surface on the arbor is oriented toward the top of the tool post, so the 10-32 x 3/4″ SHC screw will be perpendicular to the flat. This orientation will assure that the arbor does not turn or move when force is exerted on the tool.
*Multi-tool holders with 3/8″ holes:
- 5930 4-Position Gang-tooling Tool Post
- 5931 Rear-Side Cutoff Multi-Tool Holder
- 5932 Front-Side Multi-Tool Holder
Always wear safety glasses when operating machine tools.
|Chuck Capacity||3/32″ (2.4 mm) – 3/8″ (9.5 mm)|
|Arbor||Straight shaft for 3/8″ tool holders|
|11801||3/8″ drill chuck body||11850||3/8″ Dia. Straight Shaft Chuck Arbor|
|11860||Chuck key, 3/8″ drill chuck|
