90° Angle Plate
90° Angle Plate
Product Description
About the 90° Angle Plate

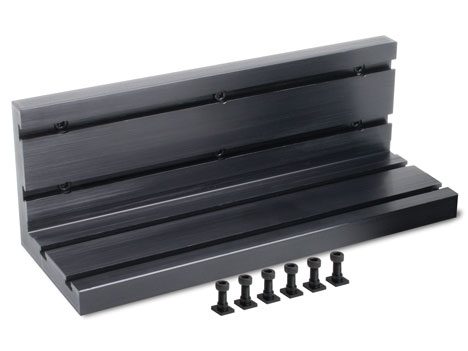

This angle plate is a very useful work-holding fixture for milling. It can be used to hold parts on either the vertical or horizontal surface. Parts can also be held from two directions at once. It has large 3″ x 3″ x 10″ surfaces with two T-slots running full length on each. It is made from extruded aluminum with accurately machined faces and a black anodized finish. Provided with the plate are six 10-32 x 3/8″ mounting screws and T-nuts.
This fixture is not limited to use on Sherline tools. Like the rotary table and some other Sherline accessories, it could be useful on larger machines in your shop as well.
Other Purchasing Options:
3560 Mill Tooling Plate (4″ X 10″)
3561 Short 90° Angle Plate
3700 4″ Rotary Table
3700-CNC 4″ Rotary Table
8700 CNC 4″ Rotary Table Indexer
|
|
Always wear safety glasses when operating machine tools. |
Download PDF 3559 Instructions
90° Angle Plate |
|
|---|---|
| 90° Angle Plate Material | Aluminum |
| Body Coating | Black Anodized |
| Body Dimensions (H x W x D) | 3″ x 10″ x 3″ |
| 30561 | (6) 10-32 T-nuts |
|---|---|
| 35590 | Right Angle Table Body |
| 40510 | (6) 10-32 X 3/8” SHC Screw |
