90° Angle Plate (short)

Short 90° Angle Plate

SKU: 3561 Category:

Product Description

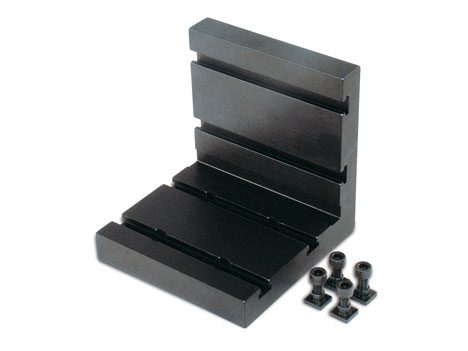

About the Short 90° Angle Plate

This angle plate is a very useful work-holding fixture for milling. It is 3-1/2″ long as opposed to the P/N 3559 90° angle plate which is 10″ long. Parts can also be held from two directions at once. It can be used to hold parts on either the vertical or horizontal surface, but its short length gives it the additional advantage of being able to be oriented either parallel to or perpendicular to the mill table, giving you some extra setup options when working on small parts. It has two T-slots running full length on each face. It is made from extruded aluminum with accurately machined faces and a black anodized finish. Provided with the plate are four 10-32 x 3/8″ mounting screws and T-nuts.

This fixture is not limited to use on Sherline tools. Like the rotary table and some other Sherline accessories, it could be useful on larger machines in your shop as well.

Other Purchasing Options:

3559 90° Angle Plate
3560 Mill Tooling Plate (4″ X 10″)

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 3559 Instructions

Instructions PDF Download

90° Angle Plate
90° Angle Plate Material Aluminum
Body Coating Black Anodized
Body Dimensions (H x W x D) 3″ x 3.5″” x 3″
30561 (4) 10-32 T-nuts
35611 Right Angle Table Body
40510 (4) 10-32 X 3/8” SHC Screw
