Boring Head with Straight Shaft


Clear selection
SKU: N/A Category:

Product Description

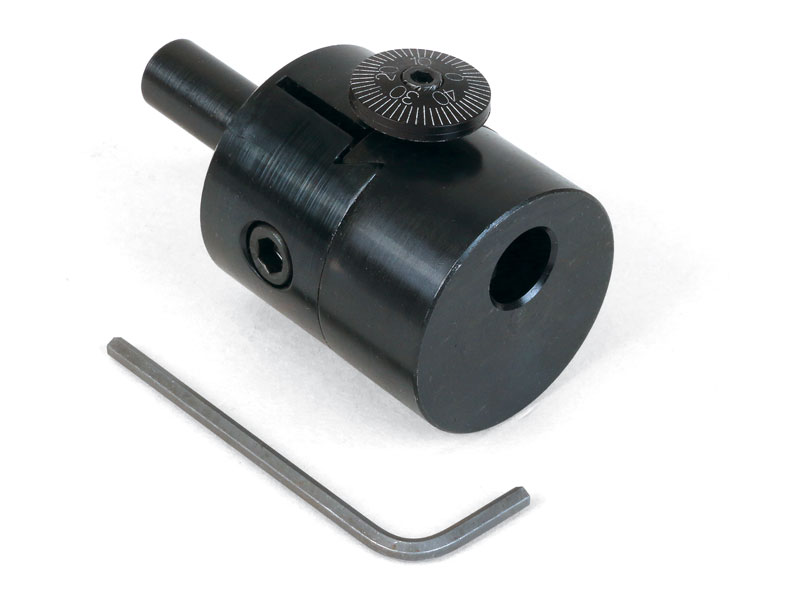

The Straight Shaft Boring Head was designed for those who are using an ER-16 or 3C headstock. Our standard boring head  has a #1 Morse tapered shaft and is held in the 3/4 x 16 headstock spindle with a drawbolt. This holder has a straight shaft and is held in the spindle using a 3/8″ collet.*

A boring head provides a means of accurately machining almost any size hole. It can also machine stepped holes for seating bearings and internal grooves for lock rings. Boring tools cut like lathe boring tools, with the difference being the tool moves rather than the work.

*NOTE: Sherline Products does not sell 3/8″ collets used with the ER-16 or 3C headstock spindles. Those are available through Hardinge Inc. or other tool supply sources.

What’s included:

The Sherline straight-shaft boring head comes with a hex key for making adjustments; however, the cutting tools are not included. The boring head is designed for use with standard 3/8″ (10mm) diameter shank boring tools. For best results, the length of the tools should be kept to a minimum. You will find that a short tool gives you less chatter, and it will be easier to hold tolerances.

Sherline also offers a fly cutter with a straight shaft for use in ER-16 or 3C headstock spindles.



The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.


Always wear safety glasses when operating machine tools.

Download PDF 3054 Inch Instructions

Instructions PDF Download

Download PDF 3049 Metric Instructions

Instructions PDF Download

31070 Gear drive pin
31560 4-40 x 7/8″ SHC Screw (P/N 31561 metric)
31570 Adjustment Dial, Boring Head w/Screw (31575 metric)
31580.375 Boring head, primary (top w/3/8″ straight shaft)
31590 Boring head, secondary (bottom)(P/N 31591 metric)
40340 10-32 x 1″ SHC Screw
40570 3/32″ hex key
40330 10-32 x 5/8″ SHC Screw
