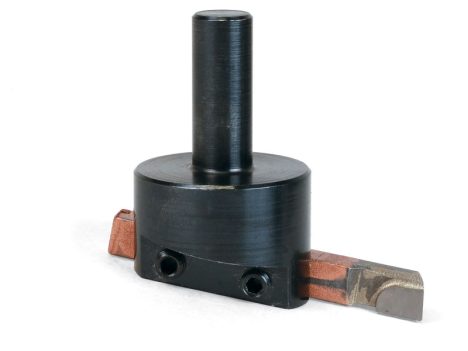

Fly Cutter with Straight Shaft

Fly Cutter, includes left-hand cutting tool.

SKU: 3052S Category:

Product Description

About the 3052S Fly Cutter

The 3052S Fly Cutting tool was designed for those who are using an ER-16 or 3C headstock. Our standard fly cutter holder (P/N 3052) has a #1 Morse tapered shaft and is held in the 3/4 x 16 headstock spindle with a drawbolt. The 3052S holder has a straight shaft and is held in the spindle using a 3/8″ collet.*

*NOTE: Sherline Products does not sell 3/8″ collets used with the ER-16 or 3C headstock spindles. Those are available through Hardinge Inc. or other tool supply sources.

Fly cutters are used primarily on a milling machine for machining large, flat surface areas. The fly cutter is a single-point cutting tool similar to a lathe tool mounted in a special holder. The cutter can be adjusted to cut up to a 2.00″ (51 mm) diameter and is easily capable of taking a .010″ (.25 mm) deep cut in aluminum at this diameter.

The Sherline fly cutter with straight shaft comes complete with the holder and a left-hand brazed 1/4″ carbide cutting tool.

Sherline also offers a boring head with a straight shaft (P/N 3054S) for use in an ER-16 or 3C headstock spindles.

Other Purchasing Options:

3052 Fly Cutter
3054S Boring Head with Straight Shaft

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 3052 Instructions

Instructions PDF Download

11930 Carbide Tool, Left
30490 Fly Cutter Body w/straight shaft
31080 10/32 x 3/8″ Set Screw
