Name: Carbide Inserts (thread, groove)
SKU: 1670
Availability: InStock

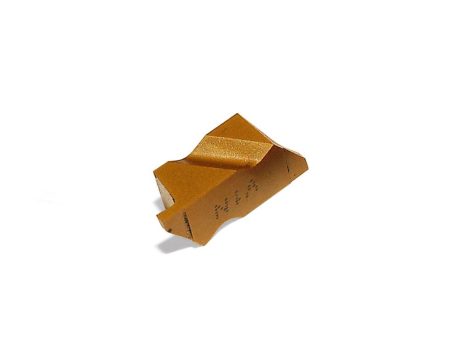

Carbide Inserts (thread, groove)

These Carbide inserts are used in the Insert Tool Holder and are used for either threading or grooving.

Thread Cutting

60° threading insert for cutting outside threads (P/N 22675)

Groove Cutting Inserts (available in multiple widths and profiles)
Standard Grooves

.031″ insert (P/N 2269)
.062″ insert (P/N 2270)
.094″ insert (P/N 22694)
.125″ insert (P/N 22695)

Radial Grooves

.031″ radius insert (P/N 22692)
.062″ radius insert (P/N 22693)

The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

Always wear safety glasses when operating machine tools.

Download PDF Using Carbide Inserted-Tip Tool Instructions

P/N 22675 – 60° THREADING INSERT
INSERT SIZE	2
CORNER RADIUS CENTER (RC)	.0040(in), 0.1000 (mm)
PROFILE DISTANCE (E)	.075 (in), 1.90 (mm)
EXTERNAL THREAD PITCH	1.25-3.5 (in), 0.70-3.0 (mm)
EXTERNAL TPI	8-36
INTERNAL TPI	7-20
GRADE	SKC5025

P/N 2269 – .031 GROOVING INSERT
INSERT SIZE	2
CUTTING WIDTH (W)	.031 (in), 0.79 (mm)
CUTTING WIDTH TOL ±	.001 (in), 0.03 (mm)
CORNER RADIUS (RR)	.0035 (in), 0.09 (mm)
CUTTING DEPTH (T)	.050 (in), 1.27 (mm)
GRADE	SKC5025

P/N 22692 – .031 RADIUS GROOVING INSERT
INSERT SIZE	2
CUTTING WIDTH (W)	.062 (in), 1.575 (mm)
CUTTING WIDTH TOL ±	.001 (in), 0.03 (mm)
CORNER RADIUS CENTER (RR)	.031 (in), 0.775 (mm)
CUTTING DEPTH (T)	.011 (in), 2.794 (mm)
GRADE	SKC5025

P/N 2270 – .062 GROOVING INSERT
INSERT SIZE	2
CUTTING WIDTH (W)	.062 (in), 1.58 (mm)
CUTTING WIDTH TOL ±	.001 (in), 0.03 (mm)
CORNER RADIUS (RR)	.0075 (in), 0.19 (mm)
CUTTING DEPTH (T)	.110 (in), 2.79 (mm)
GRADE	SKC5025

P/N 22693 – .062 RADIUS GROOVING INSERT
INSERT SIZE	2
CUTTING WIDTH (W)	.125 (in), 3.175 (mm)
CUTTING WIDTH TOL ±	.001 (in), 0.03 (mm)
CORNER RADIUS (RR)	.062 (in), 1.6 (mm)
CUTTING DEPTH (T)	.11 (in), 2.794 (mm)
GRADE	SKC5025

P/N 22694 – .094 GROOVING INSERT
INSERT SIZE	2
CUTTING WIDTH (W)	.094 (in), 2.39 (mm)
CUTTING WIDTH TOL ±	.001 (in), 0.03 (mm)
CORNER RADIUS (RR)	.01 (in), 0.005 (mm)
CUTTING DEPTH (T)	.10 (in), .15 (mm)
GRADE	SKC5025

P/N 22695 – .125 GROOVING INSERT
INSERT SIZE	2
CUTTING WIDTH (W)	.125 (in), 3.18 (mm)
CUTTING WIDTH TOL ±	.001 (in), 0.03 (mm)
CORNER RADIUS (RR)	.0075 (in), 0.19 (mm)
CUTTING DEPTH (T)	.110 (in), 2.79 (mm)
GRADE	SKC5025
