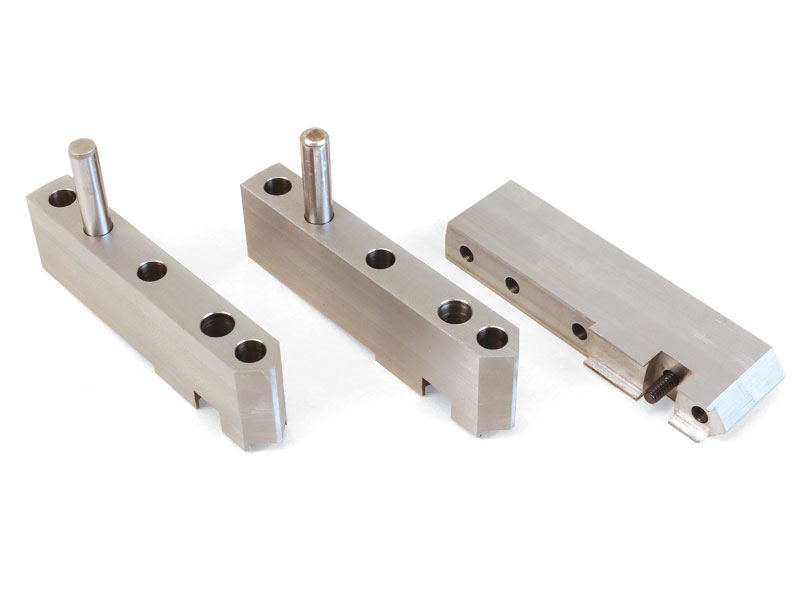

Top Jaws for Extended Laser Pin Chuck Jaws

Pins not included, shown for reference only

SKU: 11453L Categories: ,

Product Description

These extended pin jaws were designed for our laser marking customers who need to engrave parts up to 6″ (153mm) OD and as small as .66″ (16.7mm) ID, using our 3-jaw chucks manufactured after 2014*. The top jaws have four pinhole locations that hold 3/16″ hard-steel dowel pins (not included) and attach to the master jaws with a socket head cap screw (not included).

These jaws are not designed for machining parts or other uses that require more than finger tight closing pressure to hold the part in the chuck. Round parts can be held from the inside or outside with just finger-tight grip of the pins while the outside is laser marked. The jaws will work in any of our 3-Jaw Chucks.

*NOTE: Chucks manufactured prior to 2014 will need to have each jaw custom ground to fit. Either send your chuck in or measure the width of each jaw with micrometers. Then send a list of each jaw width (A, B, and C jaws).



warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 1140 Instructions

Instructions PDF Download

Laser Engraving with Sherline “Pin Jaws”
