Back to 3-Jaw Self Centering Chucks

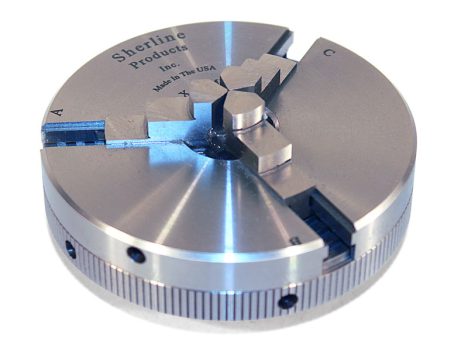

3.1″ ER-16 3-Jaw Chuck
For use on the ER-16 headstock only
Not for use on the standard headstock that comes on all Sherline Machines
Product Description
Sherline offers their 3.1″ three-jaw and four-jaw self-centering chucks with a 22 x 1.5 mm threaded hole for use on Sherline’s optional ER-16 spindle nose. They can also be used with certain other ER-16 spindles that use the 22 x 1.5mm thread for the collet nut.
Self-centering chucks offer a quick and convenient way to hold a workpiece while it is turned on the lathe. A chuck can also be clamped to a mill table to hold a part for milling. Sherline manufactures our own chucks to a high degree of precision on CNC machines. The jaws are ground and fitted to each chuck by skilled technicians to assure maximum accuracy. Runout is specified to be .003″ or less at the chuck jaws.

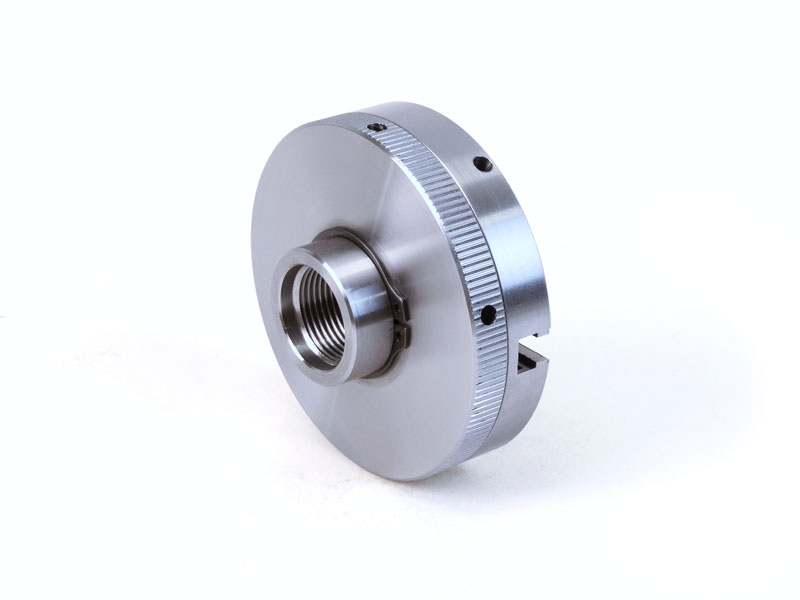

NOTE: The chuck should not be used in applications where spindle speed exceeds 3000 RPM. If purchasing any of these chucks for use on a non-Sherline ER-16 spindle, confirm that the spindle nose thread is 22 x 1.5 mm before purchasing. The Sherline chuck has a collar that is machined flat at the back to seat against the face of the Sherline ER-16 spindle. This may not be compatible with some non-Sherline ER-16 collet adapters or industrial tool holders. Runout accuracy cannot be guaranteed unless used with a Sherline spindle.
Jaw Options
- For those who have jobs where speed and ease of use are more important than maximum accuracy and want a chuck that is loose right from the start (No extra charge).
Add the note “loose jaws” to the comments box above - Soft (not hardened or machined) steel jaws are also available when you build your own chuck.
|
|
Always wear safety glasses when operating machine tools. |
Download PDF 1040 Instructions
| Chuck Diameter | 3.1″ |
|---|---|
| Jaw Capacity | With jaws in normal position: 3/32″ (2mm) – 1-1/2″ (38mm)
With jaws in reverse position: 3/32″ (2mm) – 2-3/4″ (70mm) |
| Through Hole Diameter | .687″ (17mm) |
| Thread Size | 22mm x 1.5mm |
| Chuck Body Material | 12L14 Steel |
| Chuck Jaws Material | 12L14 Case Hardened Steel |
We offer two types of 3D object files: .igs and .stp.
- To view .igs files, you need an IGS viewer. CLICK HERE to download a FREE IGS viewer.
- To view .stp files, you need an STP viewer. CLICK HERE to use Autodesk’s FREE A360* online file viewer. STP is a file extension for a 3-D graphic file used by CAD software. STP stands for STandard for the Exchange of Product model data. STP files are used to store 3D image data in an ASCII format, following the standards defined in ISO 10303-21: Clear Text Encoding of the Exchange Structure.
- Each 3D file format has been compressed into a single .rar file to save file space. Click on the .rar file link below to download it to your computer.
- Extract the .rar file to the drive location of your choice.
- If your system cannot decompress RAR files, CLICK HERE to download WinRAR software.
- Open the .igs file using the IGS Viewer, or open the .stp file using the A360 Autodesk online viewer.
*NOTE: There are also other free STP viewers that can be downloaded directly to your computer.
1042 ER-16 3-Jaw Chuck
CLICK HERE to download the 3D RAR file.
| Part No. | Description | Quantity |
|---|---|---|
| 10421 | 3.1″ 3 Jaw Chuck Body ER16 – M22 X 1.5 Thread | 1 |
| 10402 | 3.1″ Chuck Scroll | 1 |
| 10413 | Chuck Retainer Ring | 1 |
| 10414 | 3 Jaw Chuck Jaw* | 3 |
| 40580 | Tommy Bar | 2 |
*Because chuck jaws are factory ground to precisely match each chuck body you must send your chuck back to us to be fitted with new jaws. Please contact us for instructions on how to return your chuck.
