3.1″ 4-Jaw Chuck – ER-16
For use on the ER-16 headstock only
Not for use on the standard headstock that comes on all Sherline Machines

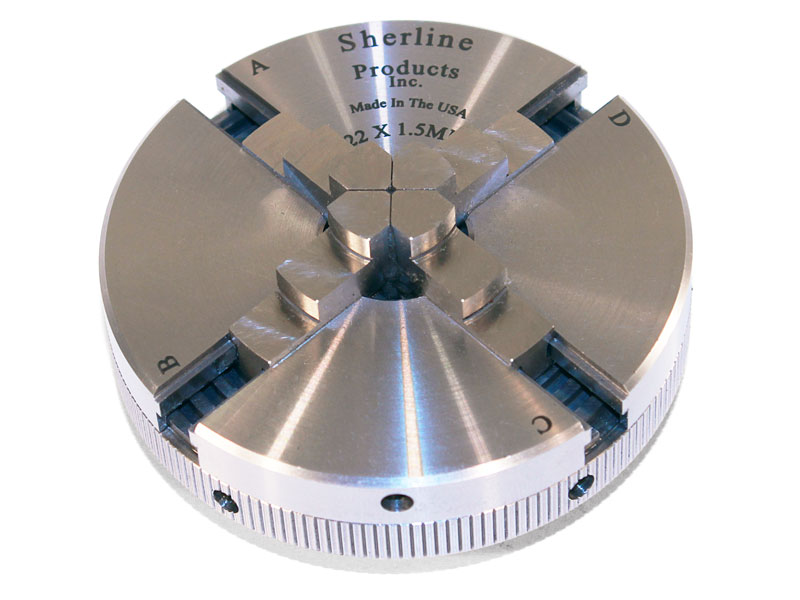

Sherline offers their 3.1″ 4-jaw self-centering chucks with a 22 x 1.5 mm threaded hole for use on Sherline’s optional ER-16 spindle nose. They can also be used with certain other ER-16 spindles that use the 22 x 1.5mm thread for the collet nut.
Self-centering chucks offer a quick and convenient way to hold a work piece while it is turned on the lathe. A chuck can also be clamped to a mill table to hold a part for milling. Sherline manufactures our own chucks to a high degree of precision on CNC machines. The jaws are ground and fitted to each chuck by skilled technicians to assure maximum accuracy. Runout is specified to be .003″ or less at the chuck jaws.

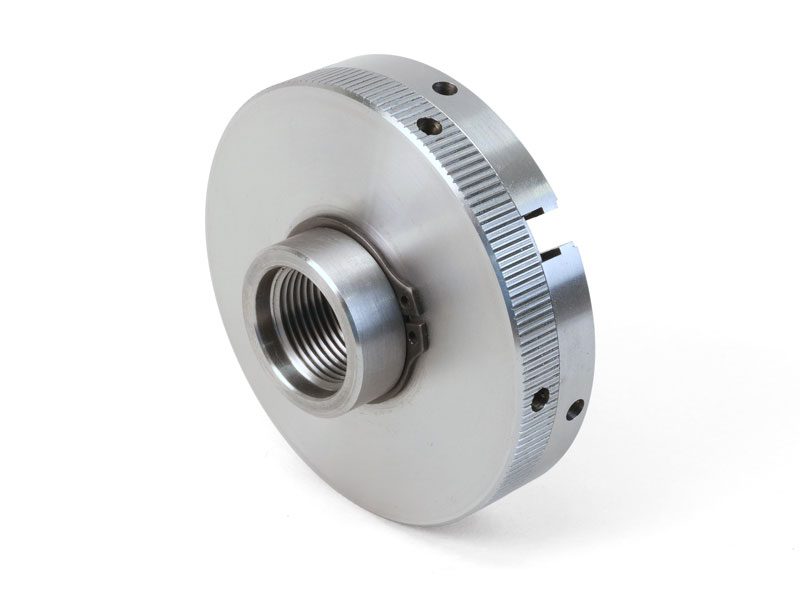

NOTE: The chuck should not be used in applications where spindle speed exceeds 3000 RPM. If purchasing any of these chucks for use on a non-Sherline ER-16 spindle, confirm that the spindle nose thread is 22 x 1.5 mm before purchasing. The Sherline chuck has a collar that is machined flat at the back to seat against the face of the Sherline ER-16 spindle. This may not be compatible with some non-Sherline ER-16 collet adapters or industrial tool holders. Runout accuracy cannot be guaranteed unless used with a Sherline spindle.
- For those who have jobs where speed and ease of use are more important than maximum accuracy and want a chuck that is loose right from the start (No extra charge).
Add the note “loose jaws” to the comments box above
- Soft (not hardened or machined) steel jaws are also available when you build your own chuck.
Always wear safety glasses when operating machine tools.
|Jaw Capacity||With jaws in normal position: 3/32″ (2mm) – 1-1/2″ (38mm)
With jaws in reverse position: 1/4″ (6mm) – 2-3/4″ (70mm)
|Through Hole Diameter||.687″ (17mm)|
|Thread Size||22mm x 1.5mm|
|Chuck Body Material||12L14 Steel|
|Chuck Jaws Material||12L14 Case Hardened Steel|
|10780||3.1″ 4 Jaw Chuck Body ER16 – M22 X 1.5 Thread||1|
|10402||3.1″ Chuck Scroll||1|
|10413||Chuck Retainer Ring||1|
|11771||4 Jaw Chuck Jaw – Self Centering*||4|
*Because chuck master jaws are factory ground to precisely match each chuck body you must send your chuck back to us to be fitted with new master jaws. Please contact us for instructions on how to return your chuck.
Click the P/Ns below to download a zipped version of the IGS 3D CAD file. You will need to extract the zip file before viewing the IGS file.
1078 ER-16 3.1″ 4-Jaw Chuck 3D IGS model
You need an IGS viewer to view .igs files. CLICK HERE to download a FREE IGS viewer.
