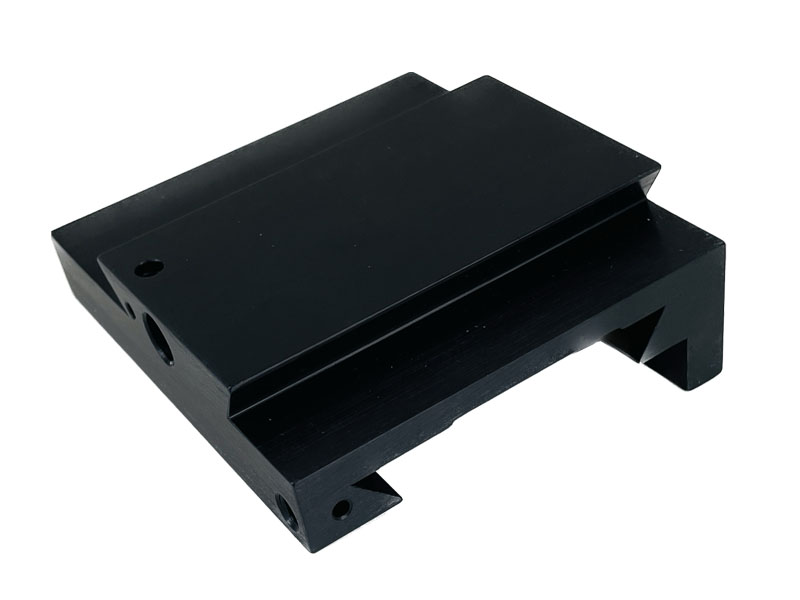

Lathe Saddle w/Backlash Holes

-

SKU: 40910 Category:
    Anti-Backlash Lock

    For mills older than 1998, that have the pointer style lock, please see part number 50120 below

    $3.09 Add to cart
    Lathe Anti Backlash Nut
    $5.83 Select options This product has multiple variants. The options may be chosen on the product page
    Saddle Gib
    Replacement gib for the lathe saddle or mill Z axis. The gib is 5-3/4" long and does not include the lock or the hole for the lock. Instructions are provided on how to cut the gib to fit and how to drill the hole for the lock.
    $4.11 Add to cart
    X-Axis Slide Screw Insert

    This slide screw insert nut works on the X-axis of both the standard leadscrew lathes and mills.

    $3.77 Select options This product has multiple variants. The options may be chosen on the product page

Related products

    Jeweler Point Carver Holders

    For use with our Jewelers Point Carver system or your existing lathe headstock.

    Each holder features a Morse #1 taper mount that fits directly into the headstock spindle. The taper mount provides a highly secure and concentric connection, making it one of the most reliable methods for mounting accessories on a rotating axis.

    Each holder includes our P/N 30880 ¼-20 drawbolt and washer, ensuring the holder is securely retained within the spindle's Morse #1 taper during operation.

    Price range: $88.25 through $145.25 Select options This product has multiple variants. The options may be chosen on the product page
    Jeweler Point Carver Base Assembly
    Includes Jeweler Point Carver "Base", Pivot Pin, Pivot Pin Spacer and Precision Ground Head Key. The base has (4) mounting holes that will accept ¼” or 6mm mounting screws, to secure the base to your work surface.
    $65.75 Add to cart
    Jeweler Point Carver System

    Our Jeweler Point Carver System was developed in response to a request from Everett Walker Jewels. You can view Everett’s exceptional craftsmanship on Instagram at @everettwalkerjewels

    Designed primarily for lapidary applications, this system provides jewelers with a precise and secure method for carving, shaping, and detailing stones and other small components.

    The system is built around our P/N 3306 headstock, which features a Morse #1 spindle taper. It can be purchased as a complete, standalone system or the point carver holders can be purchased as an accessory for any Sherline lathe equipped with a Morse #1 headstock.

    At the core of the system is the headstock, paired with a motor and electronic speed control to deliver smooth, variable-speed operation.

    The system offers four interchangeable holder options. Each holder features a Morse #1 taper mount that fits directly into the headstock spindle. The taper mount provides a highly secure and concentric connection, making it one of the most reliable methods for mounting accessories on a rotating axis.

    Each holder includes our P/N 30880 ¼-20 drawbolt and washer, ensuring the holder is securely retained within the spindle’s Morse #1 taper during operation.

    The Point Carver System also includes our P/N 1156 #1 Morse Taper Remover, allowing holders to be safely and easily released from the spindle taper when changing setups.

    $569.50 Add to cart
    Sherline Precision Jewelers Lathe
    The 8″ tabletop lathe is an ideal precision tool for jewelers and gem cutters working on small, detailed components such as rings, settings, mandrels, bezels, bushings, and custom fixtures. It can turn parts up to 3.5″ in diameter over the bed or 1.88″ over the carriage, with 8″ of distance between centers, providing ample capacity for most jewelry and lapidary work without unnecessary machine size. For jewelry applications, we often recommend the 8″ tabletop lathe over our 17″ model. The additional bed length of the 17″ lathe is rarely needed for typical jeweler or gem-cutting tasks, and its longer layout requires reaching farther to operate the Z-axis handwheel. The compact design of the 8″ lathe keeps both handwheels close to the work area, allowing for greater control, improved ergonomics, and more precise hand-fed cuts during fine finishing operations. The lathe features an electronic speed control that provides continuously variable spindle speeds from 70 to 2,800 RPM without belt changes, making it easy to dial in the correct speed for delicate materials and small-diameter tools. A secondary pulley position is available when additional low-RPM torque is needed for tougher materials or heavier cuts. Despite its compact footprint, the machine is rigid and stable, delivering the smooth, controlled operation required for jewelry-scale precision.
    Typical Jewelry & Gem-Cutting Applications
    • Turning and sizing ring blanks and bands
    • Machining ring mandrels and expanding mandrels
    • Cutting and finishing bezels, settings, and prongs
    • Making collet-held parts and small precision components
    • Truing and modifying stone setting tools
    • Fabricating custom jigs, fixtures, and specialty tools
    • Light turning of precious and non-precious metals
    • Working with wax, plastic, aluminum, and steel for prototypes and tooling
    Designed for jewelers seeking a professional-grade mini lathe, this tabletop machine combines desktop convenience with true machine-tool accuracy. Made in the USA and backed by knowledgeable customer support, it is capable of machining wood, plastic, aluminum, and steel, making it a versatile addition to any jewelry or gem-cutting workshop. Its small size makes it especially well suited for space-limited studios and home shops, and it can be easily stored when not in use.
    From: $1,498.52 See More
