32001_pic

Image shown is a representation only. Actual product may vary.

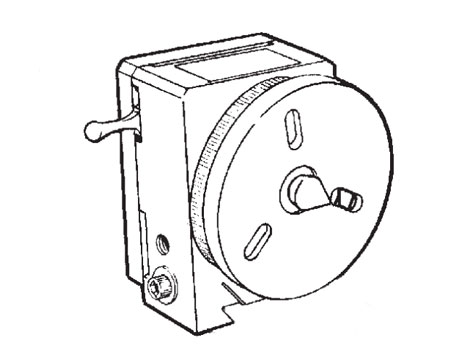

Indexing Head Assembly

SKU: 32001 Category:
    3200_pic
    3200_pic
    Indexing Attachment

    Machining operations often require cutting features in a radial pattern rather than in a straight line. Common examples include gear teeth, splines, and flats on nuts. The Sherline Indexing Attachment provides an economical and highly accurate way to rotate and position a workpiece for machining these types of features.

    Features & Benefits
    • Ideal for machining radial patterns such as flats, splines, and gear teeth
    • Built-in detent mechanism indexes the spindle in 5° increments
    • Laser-engraved collar provides 1° reference markings
    • Rack gear system allows indexing to virtually any position using simple calculations
    • Compatible with many Sherline workholding accessories
    Included Components
    • Indexing head and tailstock mounted on a 12" dovetailed bed
    • Rack gear for measuring radial movement
    • Gear tooth cutter holder
    • High-speed steel tool blank
    Spindle Compatibility

    The indexing head uses a spindle with a #1 Morse taper and 3/4"-16 male thread, identical to Sherline lathe and mill spindles. This allows the use of common Sherline accessories, including:

    • Faceplate
    • 3-jaw and 4-jaw chucks
    • Drill chuck
    • Centers
    Precision Indexing Capability

    For positions beyond the standard 5° detents, the rack gear converts spindle rotation into measurable linear travel. This movement can be measured with the depth rod of a Vernier caliper, allowing extremely accurate indexing to an infinite number of positions.

    Mounting & Use

    The indexing attachment can be mounted directly to the table of a Sherline milling machine. The indexing head may also be used independently in a horizontal position similar to a rotary table.

    Note: Use on a Sherline lathe with the vertical milling column is not recommended. However, it may be possible with shims installed to raise the unit high enough to clear the crosslide handwheel.

    $286.50 Read more
Part No. Description Quantity
32020 Index Lock Pin 1
32030 Index Spring 1
32100 10-32 Hex Nut 1
32130 Indexing Case 1
32140 10-32 x 1/2″ Cup Point Set Screw 1
32190 10-32 x 1/2″ Socket Head Flat Screw 4
32200 Indexing Cover 1
32210 6-32 x 3/8″ SHCS 3
32220 Index Gear 72 Tooth 48 Pitch 1
32230 Indexing Spindle 1
32240 Index Stepping Lever 1
32500 Index Graduation Collar 1
32510 6-32 x 1/8″ Nylon Tip Socket Head Set Screw 1
40070 Faceplate 1
40090 Dog 1
40340 10-32 x 1″ SHCS 2
40380 #1 Morse Center 1
40540 5-16-18 x 3/4″ Cone Point Set Screw 1
40660 #10 3/16 Washer 1
